Airmar B75C-12-HW-MM CHIRP Thru-Hull Transducer 12° Deadrise 600W 150-250kHz

The Airmar B75C-12-HW-MM is a high-performance CHIRP-ready thru-hull transducer designed for smaller boats such as center consoles. This low-profile transducer combines high-frequency CHIRP technology with a wide 30° beamwidth to deliver exceptional target separation on baitfish and schooling gamefish while providing maximum coverage beneath your vessel in depths up to 106 meters (350 feet).

The B75HW operates across the high-frequency bandwidth of 150 to 250 kHz, delivering up to 100 kHz of total bandwidth for superior bottom detail and crystal-clear fish-target returns in shallow water. The transducer features a fixed 12° tilted element specifically engineered for hull deadrises between 8° and 15°, ensuring the beam is oriented directly downward for maximum echo returns and accurate depth readings.

Key Features:

• CHIRP-ready single-band transducer with 150-250 kHz high-frequency operation
• 600W power rating with maximum depth performance to 106 meters (350 feet)
• Wide 30° beamwidth for extensive underwater coverage
• Integrated fast-response water temperature sensor
• Low-profile bronze housing installs nearly flush to hull for excellent high-speed performance

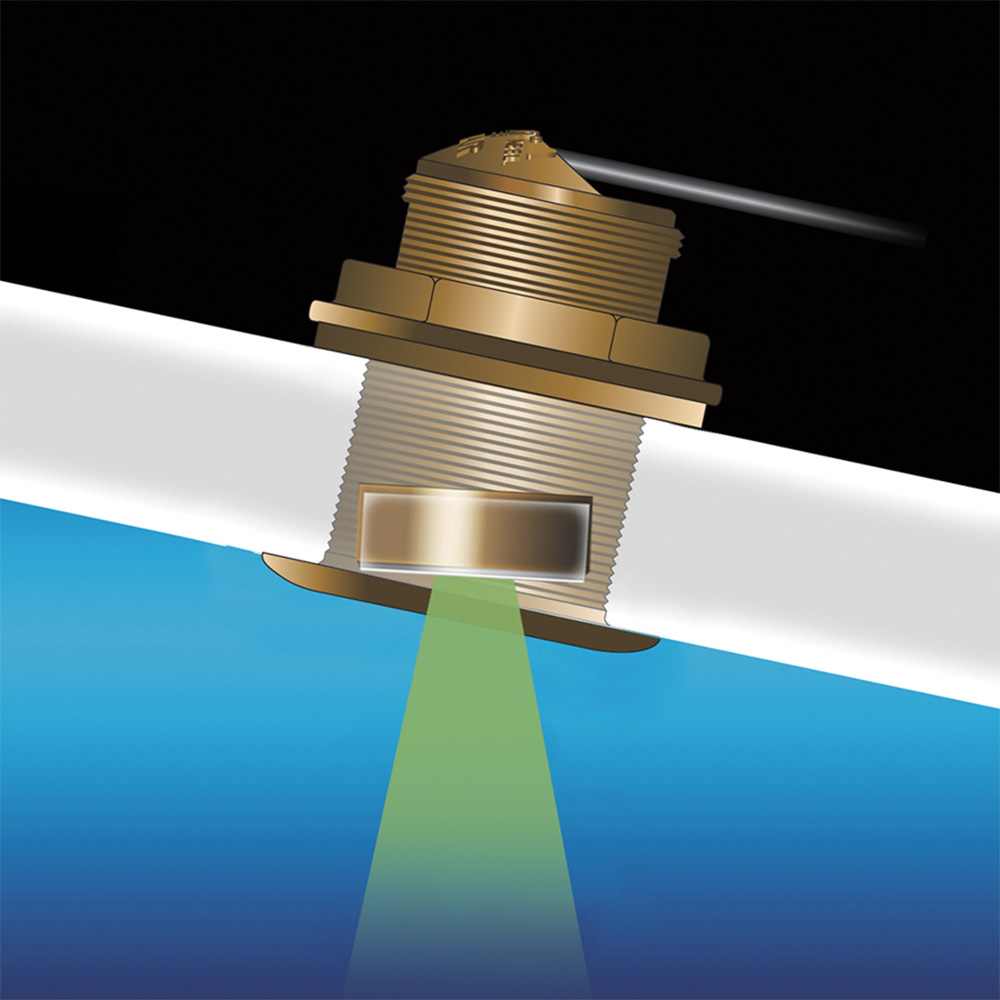

• Fixed 12° tilted element optimized for 8° to 15° hull deadrises
• Compatible with stepped, planing, or displacement hulls
• Exclusive Xducer ID technology for automatic transducer recognition

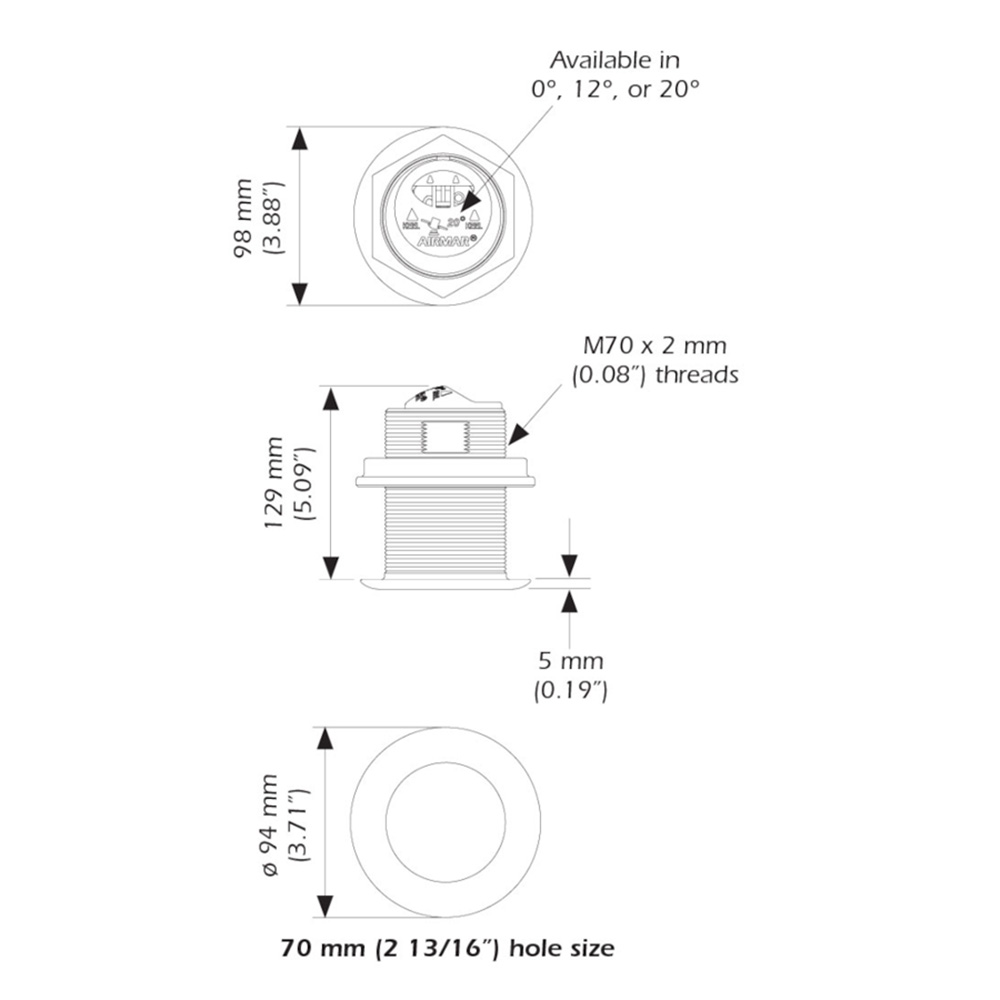

• Installation hole size: 70mm (2-13/16 inches)

Important: Requires a separate Mix and Match cable compatible with your specific fishfinder or chartplotter. The cable is not included and must be ordered separately based on your electronics brand and model.
