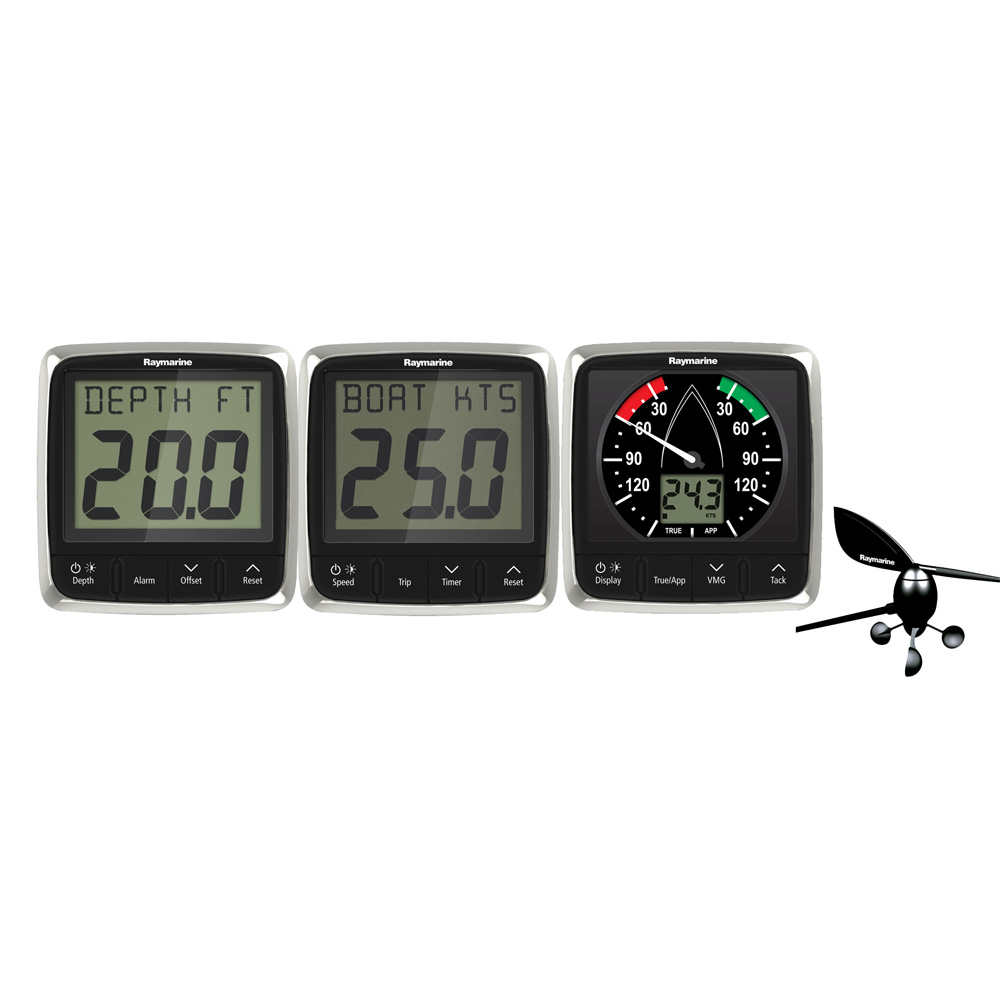

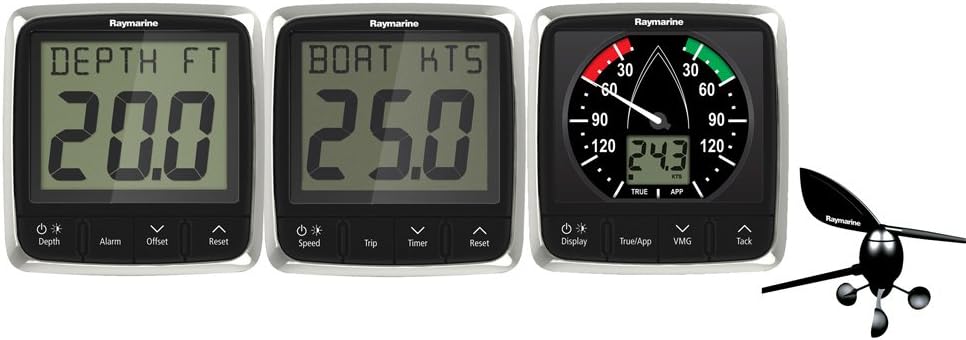

The Raymarine T70584 is a comprehensive marine instrumentation system pack that combines wind, speed, and depth monitoring in one complete package. This professional-grade system includes three high-performance instruments with all necessary transducers for complete installation, making it an ideal solution for sailboats and powerboats requiring accurate environmental data.
Complete System Includes:
- i50 Speed Instrument (E70058) with ST900/P120 thru-hull speed/temperature transducer and 13.7m cable (E70673)
- i50 Depth Instrument (E70059) with P319 LP thru-hull depth transducer (M78713-PZ)
- i60 Analog Wind Instrument (E70061) with short arm wind transducer and 30m cable (E22078)
i60 Wind Instrument Features:
The i60 Wind provides professional-grade wind monitoring with an easy-to-read analog dial display. Features include wind speed and direction, Beaufort scale, maximum wind speed, VMG, and tack information. When integrated with compass or autopilot and speed data, the system calculates true wind in addition to apparent wind. Configurable alarms include high/low apparent wind angle and true wind speed thresholds.
i50 Speed and Depth Instruments:
The i50 Speed Instrument displays boat speed through water, GPS speed over ground (SOG), velocity made good (VMG), average and maximum speed, distance log, trip log, and water temperature. Built-in race timers include count-up timer and dual race-start countdown timers. The i50 Depth Instrument provides accurate depth readings with maximum and minimum depth tracking, plus shallow/deep depth alarms and anchor watch functionality.
Advanced Networking and Compatibility:
All instruments feature dual-network capability with both SeaTalkng (NMEA 2000/CANBUS) and legacy SeaTalk 1 networking, enabling seamless integration with existing Raymarine systems or easy upgrades from older ST60+ instrumentation. Transducers connect directly to their respective instruments, or instruments can function as repeaters for SeaTalkng smart transducer data. The system is fully compatible with Raymarine's i70 color multifunction instruments, a-Series, c-Series, and e-Series multifunction displays, and p70/p70R autopilot controllers.
Design and Construction:
Each instrument features a 110mm x 115mm footprint matching ST60+ dimensions for easy retrofits. Large, high-contrast LCD displays with red backlighting ensure excellent visibility in all lighting conditions. Waterproof to IPX6 standards and highly efficient, drawing less than 1W as repeaters or 2.4W when hosting transducers from 12V DC power. Each instrument includes low-profile surface mounting hardware and silicone rubber sun cover. Backed by Raymarine's 2-year warranty, upgradeable to 3 years with online registration within 90 days.
