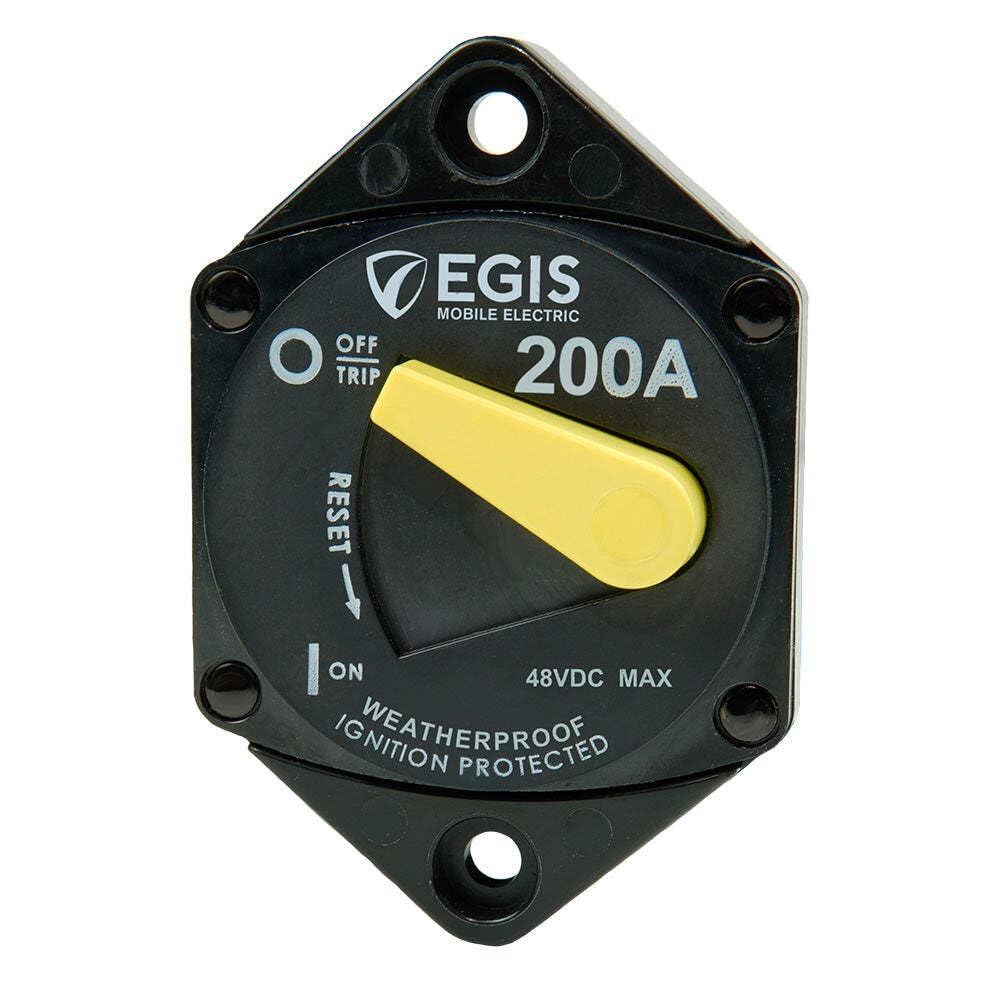

Egis Mobile Electric 4707-200 200A Panel Mount 87 Series Circuit Breaker

The Egis Mobile Electric 4707-200 is a 200-amp panel mount circuit breaker from the 87 Series, designed to protect electrical circuits in mobile, marine, RV, and off-grid power systems. This heavy-duty breaker combines automatic overcurrent protection with manual ON/OFF switching capability, making it ideal for high-amperage DC applications up to 48 volts.

Key Features:

• 200A continuous current rating - handles high-demand electrical circuits in mobile and stationary applications
• IP66 weatherproof rating - fully sealed against dust and water intrusion for reliable outdoor and marine use
• High interrupt current capacity - 5,000A at 14 VDC and 3,000A at 28 VDC protects circuits connected to large battery banks
• 48 VDC maximum voltage rating - supports 12V, 24V, 36V, and 48V DC systems
• Round panel mount design - circular cutout style simplifies installation into control panels
• 2,000 cycle endurance - rated for full-load manual and electrical switching cycles
• Stainless steel hardware with serrated flange nuts - resists corrosion and vibration in harsh environments
• High-visibility ON/OFF controls - easy operation with clear switch position indication

Applications:

• Battery bank protection in RV, marine, and off-grid solar systems
• High-current DC circuit protection and manual switching
• Inverter and charger circuit isolation and maintenance disconnect
• Mobile equipment electrical system protection

Technical Specifications:

• Continuous Current: 200 Amps
• Maximum Voltage: 48 VDC
• Interrupt Current: 5,000A @ 14 VDC, 3,000A @ 28 VDC
• Ingress Protection: IP66
• Switching Endurance: 2,000 cycles at full current
• Construction: Weatherproof sealed case
• Mounting Style: Panel mount, round cutout
• Hardware: Stainless steel with serrated flange nuts

This circuit breaker is proudly made in the USA and backed by a 4-year manufacturer warranty. It provides dual functionality as both an automatic overcurrent protection device and a manual disconnect switch, eliminating the need for separate components in space-constrained installations.
