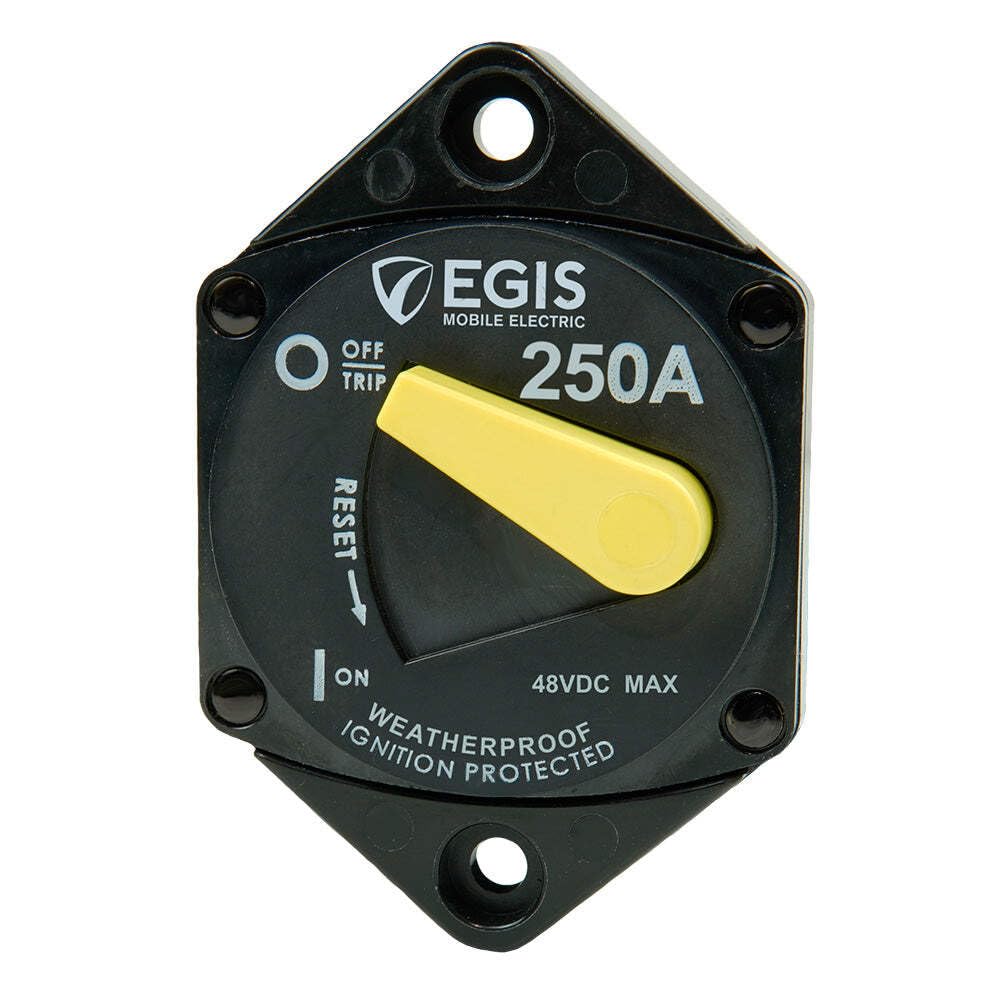

Egis Mobile Electric 4707-250 250A Panel Mount Circuit Breaker 48V DC IP66

The Egis Mobile Electric 250A Panel Mount 87 Series Circuit Breaker provides robust circuit protection and manual switching for high-current DC electrical systems. This weatherproof breaker protects circuits from short circuits and thermal overloads while offering reliable live load switching capability, making it ideal for marine, RV, and mobile power applications with large battery banks.

Key Features:

• 250A continuous current rating with 48V DC maximum voltage for 12V, 24V, 36V, and 48V systems
• IP66 weatherproof rating - sealed against dust and water intrusion for harsh environment installations
• High interrupt current capability - 5,000A at 14V DC, 3,000A at 28V DC for large parallel battery bank protection
• Round panel mount design with circular cutout for easy installation
• 2,000 cycle endurance at full current for long-term reliability
• Dual functionality - automatic circuit protection with manual ON/OFF switching
• Corrosion-resistant stainless steel hardware with serrated flange nuts for vibration resistance
• High-temperature rated for demanding installation locations

Applications:

• Battery bank protection and isolation for marine, RV, and off-grid power systems
• High-current DC circuit protection in mobile and stationary applications
• Load circuit switching and maintenance isolation
• Electrical system protection from short-circuit events and over-current conditions

Specifications:

• Continuous Current: 250A
• Maximum Voltage: 48V DC
• Interrupt Current: 5,000A @ 14V DC, 3,000A @ 28V DC
• Ingress Protection: IP66
• Cycling Endurance: 2,000 cycles at full current
• Mounting Style: Round panel mount with circular cutout

Proudly made in the USA with high-quality components and backed by a 4-year warranty. The Egis 87 Series Circuit Breaker delivers professional-grade circuit protection for demanding mobile electric applications.
