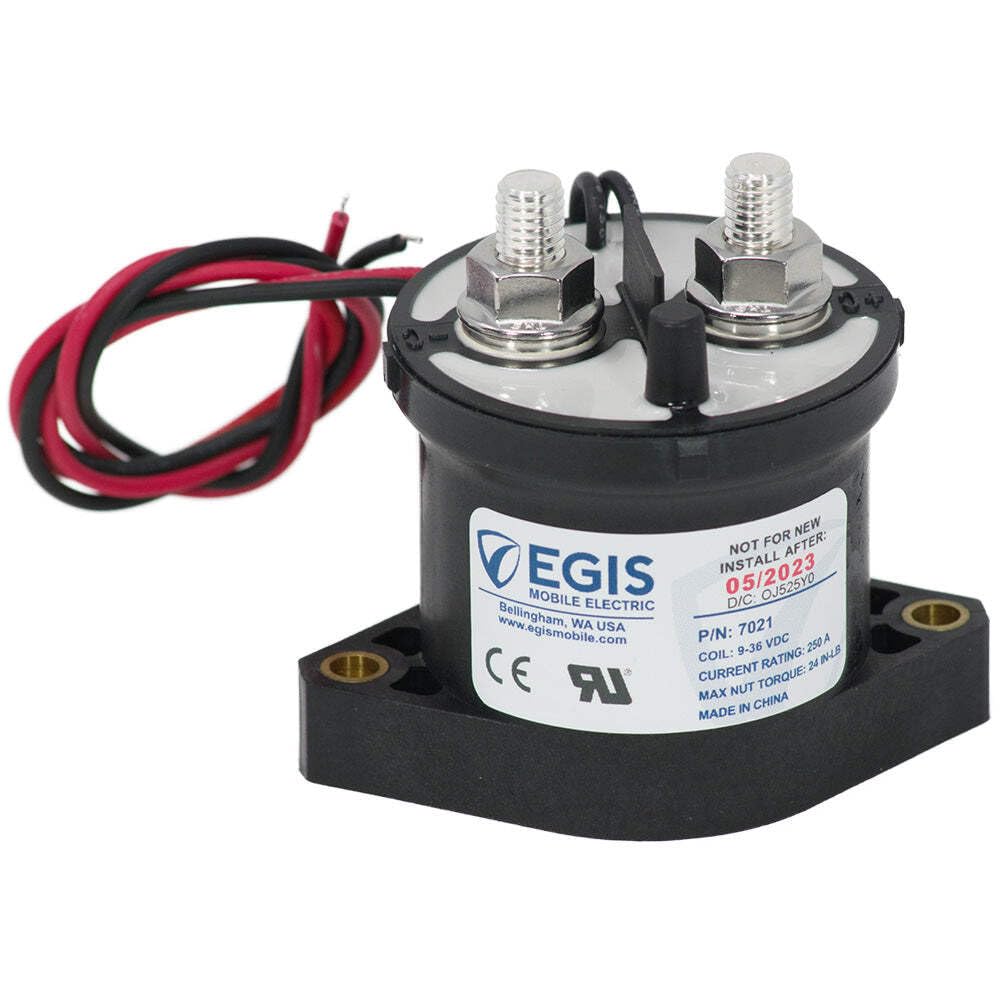

Egis Mobile Electric 7021 Contactor 250A 12/24V Battery Isolation Relay

The Egis Mobile Electric 7021 is a 250A, 12/24V contactor (battery isolation relay) for remote switching of high-ampere engines and auxiliary loads. Switching remotely removes the need for large cable runs to manual switches, which helps reduce installation cost and weight.

Key Features:

• Hermetically sealed against dust and moisture intrusion
• Supports 12 or 24 Vdc control voltage, with switching voltage applications up to 48 V and beyond
• Ignition protected and safe for installation in closed compartments with potentially explosive gases
• Switching endurance of 6,000 cycles at 250A or 450V and 100,000 cycles at 250A/14V
• High interrupt current capability: can safely open in a locked starter situation (up to 1,500 A @ 14 Vdc)
• Sealed construction with high-temperature materials for engine compartment applications
• 18-8 stainless steel self-locking hardware resists corrosion and supports long-term connection reliability
• Reinforced mounting holes for secure, easy installation

Specifications:

• Continuous Current (Amps): 250/500
• Operation Control Voltage: 9-36 VDC
• Ingress Protection: IP67/IP69K
• Ignition Protection: ISO-8846 / UL 1500
• Electrical Endurance Rating (Cycles): 1,000,000
• Minimum Operating Temperature: -40 °C
• Maximum Operating Temperature: 85 °C
