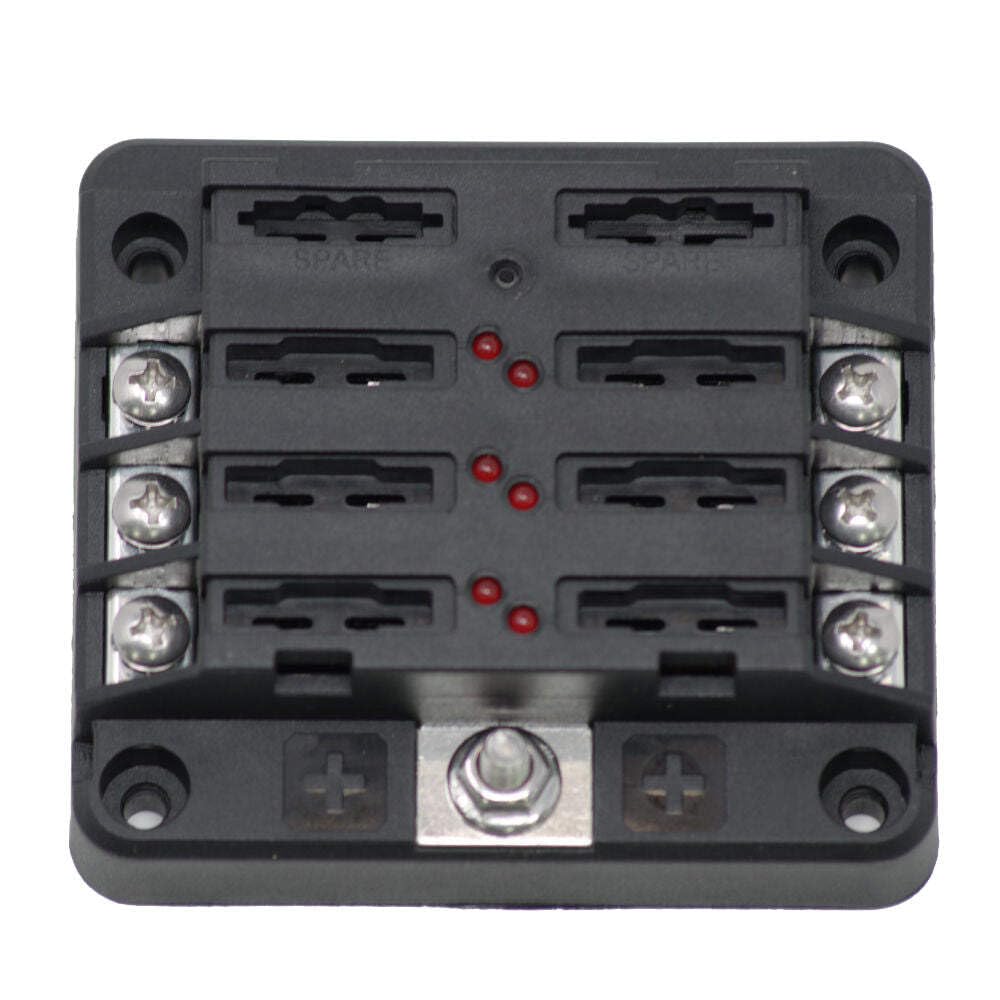

Egis Mobile Electric 8028 EGIS RT FUSE BLOCK 6 POSITION W/LED INDICATION
RT Fuse Block 6 Position with LED Indication
This 6-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has an LED indication.
Applications:
- Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
- Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.
Features:
- Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle
- Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
- Supports SAE circuit protection standards for thermal/short circuit events
Specifications:
- Maximum Current (Entire Block) Amps: 100
- Maximum Current (Per Circuit) Amps: 30
- Max Output Wire Size: #10 AWG
- Voltage Range VDC: 0-36
- Number of Fuse Positions: 6
- Compatible Fuse Types: ATO / ATC / ATF
Focal Features:
Spare Fuse Locations
Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.
Stainless Steel Self-Locking Hardware
100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.
LED Fuse Diagnostics
Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.
Cover/ Label Recesses
Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
