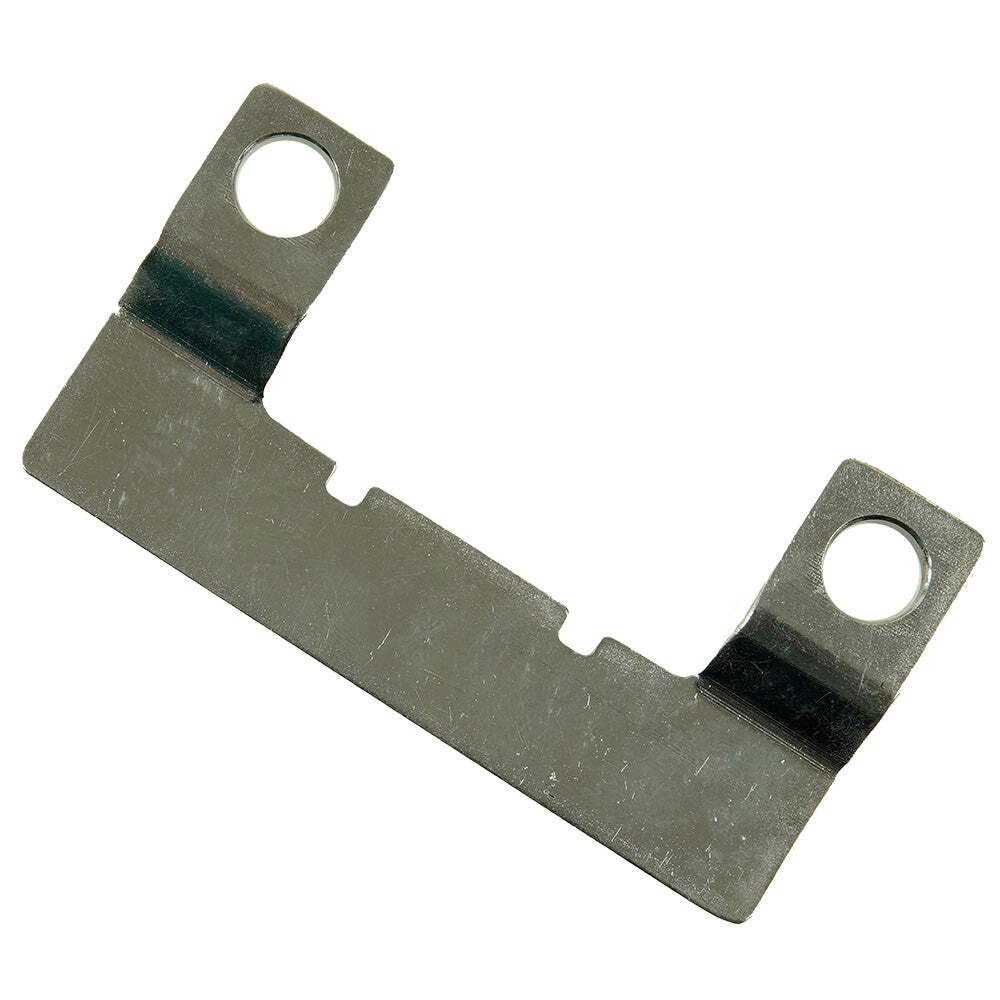

Egis Mobile Electric 8791 XD Relay Cross-Over Bus Bar

The Egis Mobile Electric XD Relay Cross-Over Bus Bar is a professional-grade electrical connector designed to link Egis XD Single, Dual, and Triple XD Relays together in multiple configurations. This versatile bus bar also connects to the Egis 8700 Mechanical Disconnect, enabling compact installations and robust circuit switching for advanced battery management systems in marine, RV, and mobile power applications.

Key Features:

• Tin-plated copper construction ensures reliable electrical conductivity and superior corrosion resistance for long-term durability
• Robust protective insulation prevents accidental contact shorts between connected XD relays
• Versatile linking capability allows multiple relay configurations for customized power management solutions
• Heavy-duty construction supports high-current applications up to 500 amps continuous

Technical Specifications:

• Continuous Current Rating: 500 Amps
• Maximum Voltage: 72 VDC
• Material: Tin-plated copper
• Dimensions: 90mm x 47mm (3.54" x 1.85")
• Thickness: 2.8mm (1/8")
• Terminal Stud Hole Size: 10.5mm (3/8")

This cross-over bus bar is an essential component for creating professional battery management and power distribution systems, providing a clean and efficient method to interconnect multiple Egis XD relay modules while maintaining maximum current capacity and electrical integrity.
