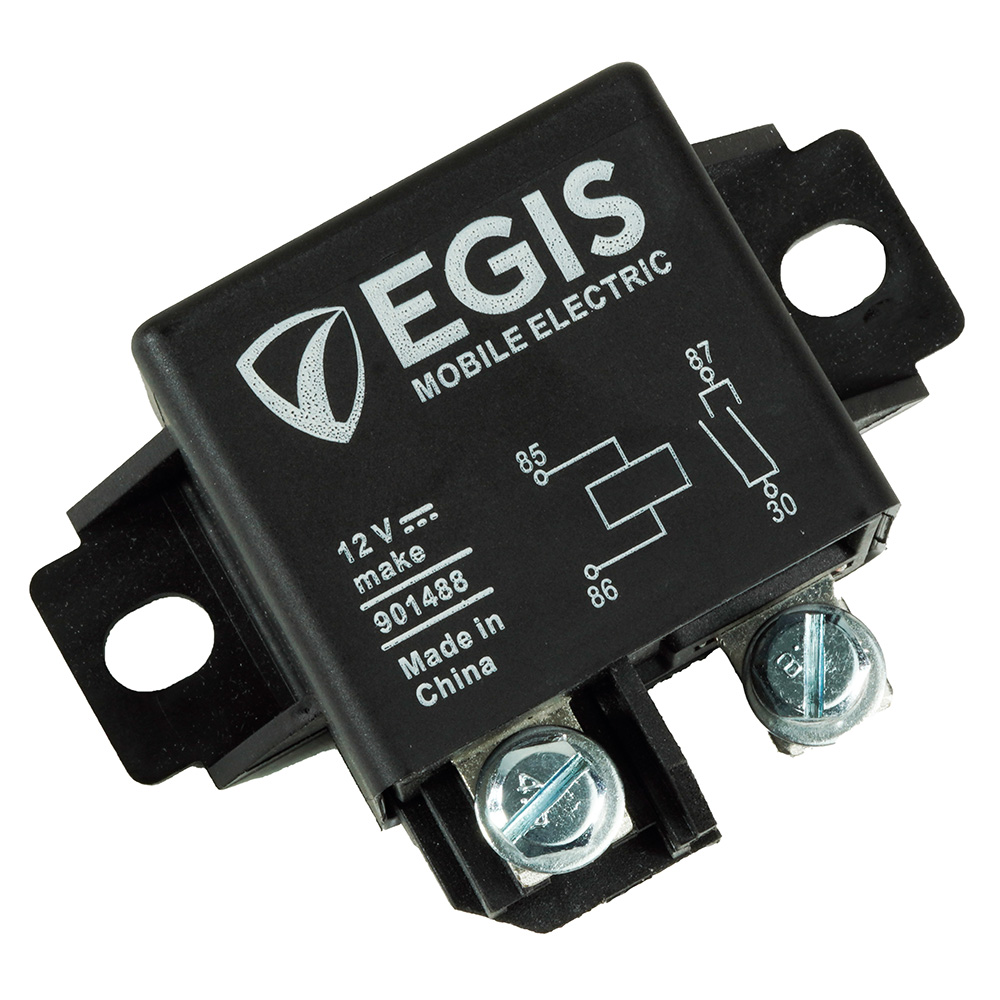

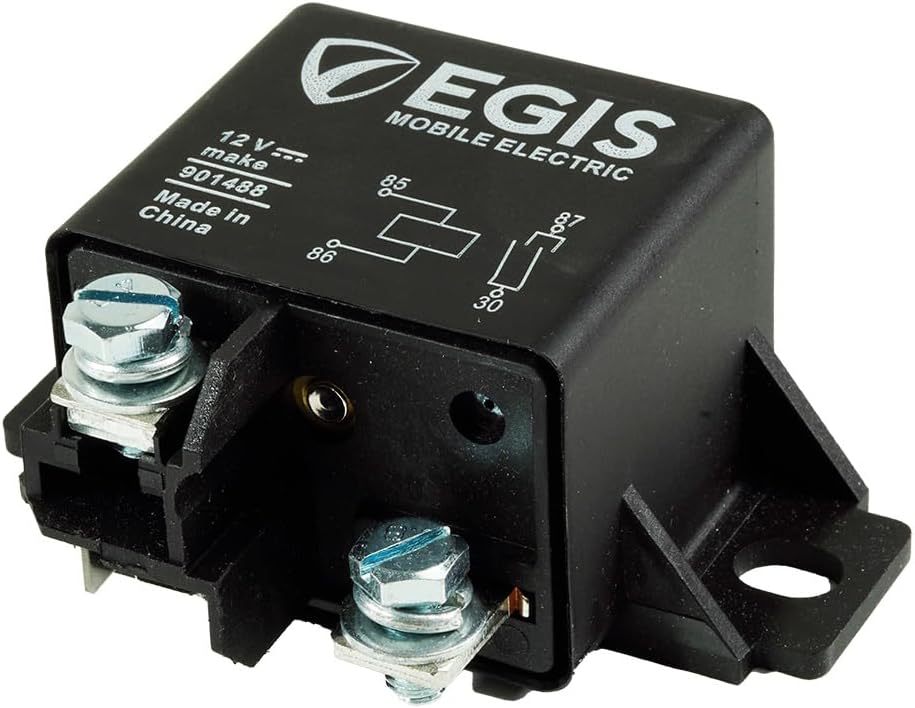

Egis Mobile Electric 901488 12V 75A Automotive Relay

The Egis Mobile Electric 901488 is a heavy-duty 12V automotive relay rated for 75 amps continuous current with a 150-amp intermittent capacity for up to 3 seconds. This high-performance relay features bi-furcated contacts that reduce contact bounce, increase long-term reliability, and enable more efficient electrical switching while minimizing heat buildup and contact wear.

Key Features:

• Bi-furcated contact design for superior switching efficiency and reliability
• 150-amp intermittent rating (3 seconds) ideal for high-draw equipment startup
• IP54 ingress protection with automotive-grade construction
• Wide operating temperature range: -50°C to 125°C (-58°F to 257°F)
• 100,000 electrical switching cycle endurance rating
• Reinforced mounting tabs with strengthening gussets for secure installation
• Offset input/output terminals with integrated divider to prevent accidental shorts
• Dual mounting holes accommodate ¼-20" or M6x1.25 bolts or #14 screws
• Zinc-plated M5 terminal screws with captive nuts for secure connections
• Shielded dual 6.3 x 0.8mm flat blade control terminals
• Compact design for confined installation spaces

Technical Specifications:

• Voltage: 12V (operating range 8.8-16VDC)
• Continuous Current: 75A @ 23°C
• Intermittent Current: 150A @ 3 seconds
• Initial Contact Resistance: 50 mOhm @ 6VDC
• Temperature Rating: -50°C to 125°C
• Electrical Endurance: 100,000 cycles
• Standards: Meets or exceeds IEC 60068-2-27, IEC 60068-2-6, IP54, and IEC 60068-2-2

Built from high-quality materials with enhanced vibration and shock protection, this relay is ideal for demanding automotive, marine, and powersports applications including engine bays and other high-temperature, low-ventilation environments.
