Bluewater 9059-2123-4 22mm Push Button Switch Momentary Double Contact LED

The Bluewater 9059-2123-4 is a premium 22mm stainless steel push button switch designed for marine and automotive applications requiring reliable momentary control. This waterproof switch features an Off-(On)-(On) double momentary contact configuration, perfect for controlling trim tabs, windlasses, or other dual-function systems.

Key Features:

• IP69K waterproof rating with included gasket for extreme weather protection
• Stainless steel plated metal construction resists corrosion in harsh marine environments
• Multi-color LED illumination: Blue/Green for off/first position, Red for second position
• Double momentary contact operation for spring-return functionality

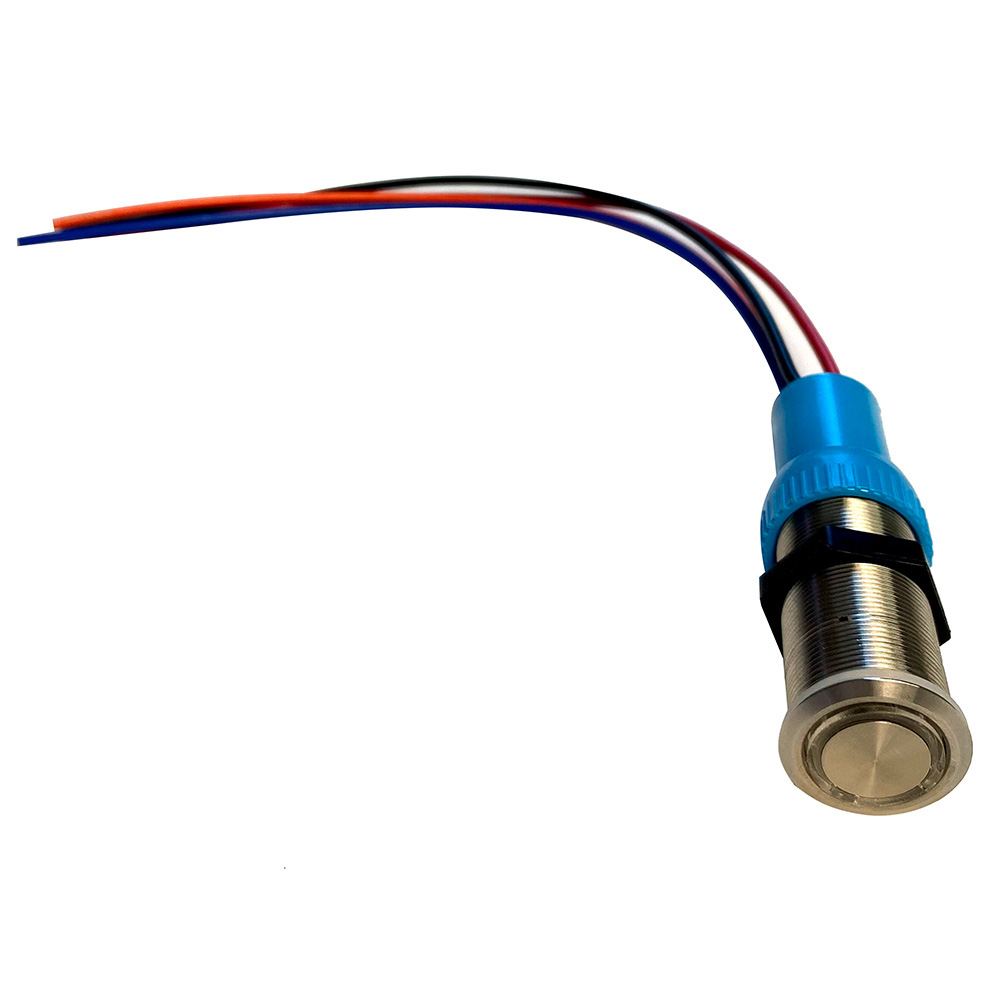

• 4-foot pre-wired lead with color-coded connections for easy installation
• 50,000 mechanical cycle life and 10,000 electrical cycle life
• 15A rating at 12-24VDC for versatile power applications

Specifications:

• Switch Function: Off-(On)-(On) double momentary contact
• Mounting Hole: 22mm diameter
• Maximum Panel Thickness: 6mm (0.24 inches)
• LED Colors: Blue/Green (off/1st position), Red (2nd position)
• Switch Rating: 15A at 12-24VDC
• Material: Stainless steel with waterproof gasket

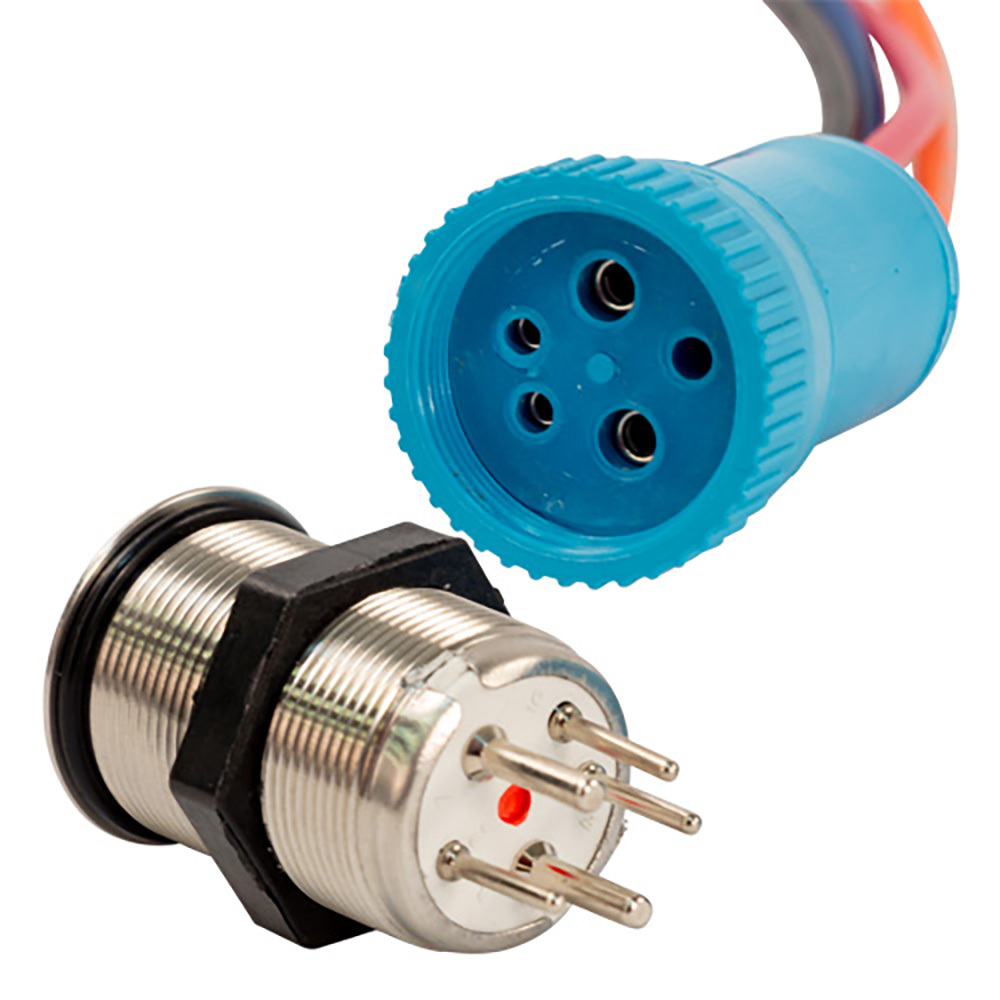

• Wire Length: 4 feet with 3 switch contacts and 2 LED contacts
• Rear Identification: Green dot mark page

Installation requires drilling a 22mm hole in panels up to 6mm thick. The switch features simple wiring with color-coded contacts for both the button function and LED illumination, making professional installation straightforward.
