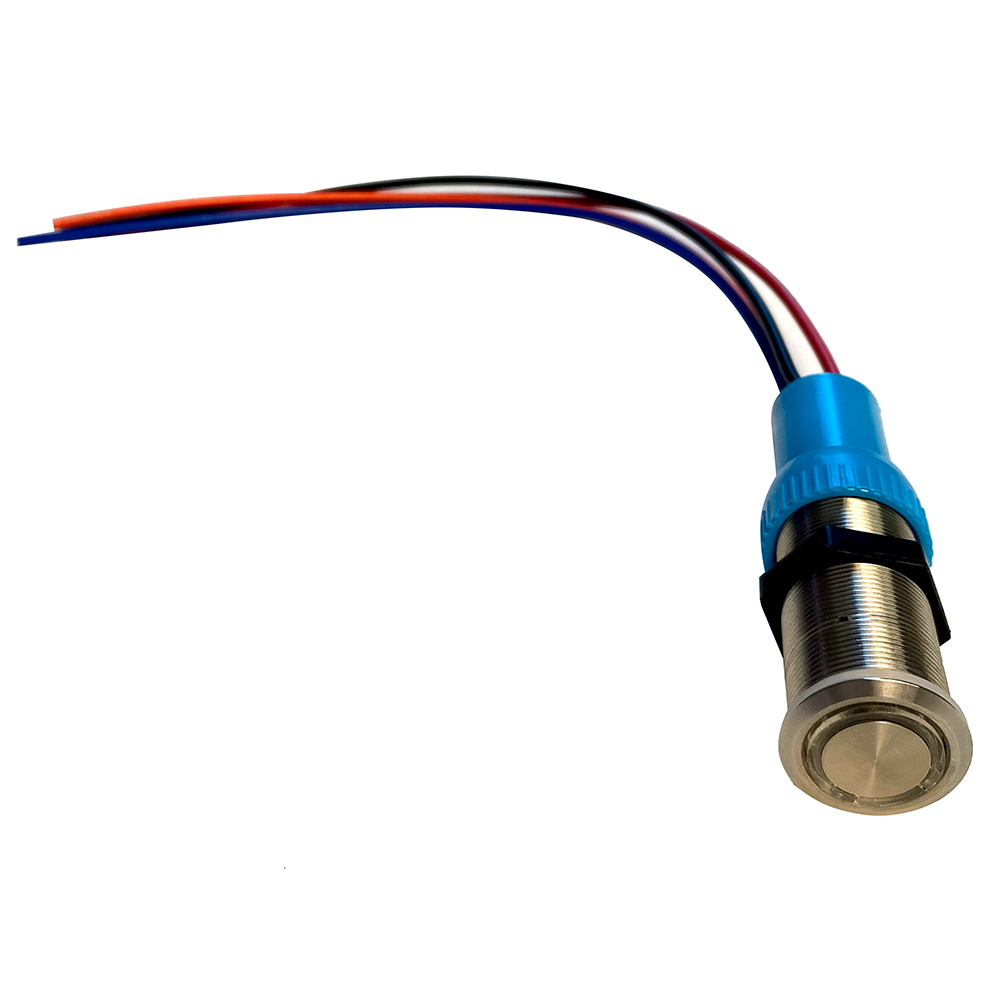

Bluewater 9059-3114-1 22mm Push Button Switch Nav/Anchor LED Waterproof

The Bluewater 22mm push button switch combines marine-grade durability with modern functionality for navigation and anchor lighting control. This stainless steel plated metal button features a sleek, contemporary design that upgrades any marine dash or control panel.

Key Features:

• Dual-function Nav/Anc contact configuration for navigation and anchor light control
• IP69K waterproof rating with included gasket for maximum weather protection
• Multi-color LED illumination: Blue/Green for first position, Red for second position
• Stainless steel construction resists corrosion in marine environments
• 12-inch pre-attached lead with color-coded wiring for easy installation
• 15A switching capacity at 12-24VDC
• 50,000 mechanical cycle life and 10,000 electrical cycle life

Specifications:

• Button diameter: 22mm
• Material: Stainless steel with plated finish
• Switch rating: 15A at 12-24VDC
• LED colors: Blue/Green (Off/1st On), Red (2nd On)

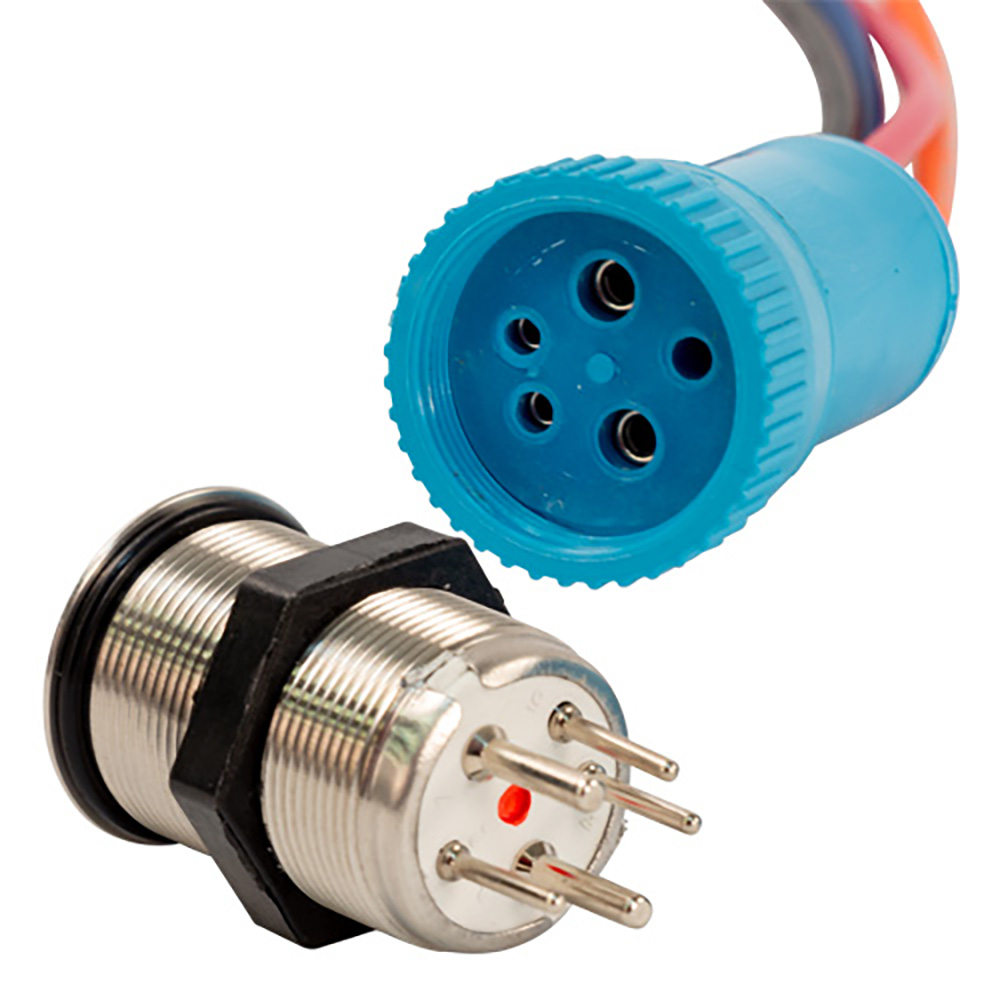

• Lead length: 1 foot with 3 button contacts and 2 LED contacts
• Mounting thickness: Up to 6mm (approximately 1/4")
• Waterproof rating: IP69K

Installation:

Installation requires drilling a 22mm hole in any panel up to 6mm thick. Connect the three color-coded button contacts and two LED contacts according to the wiring diagram. The included gasket ensures a weathertight seal when properly installed.
