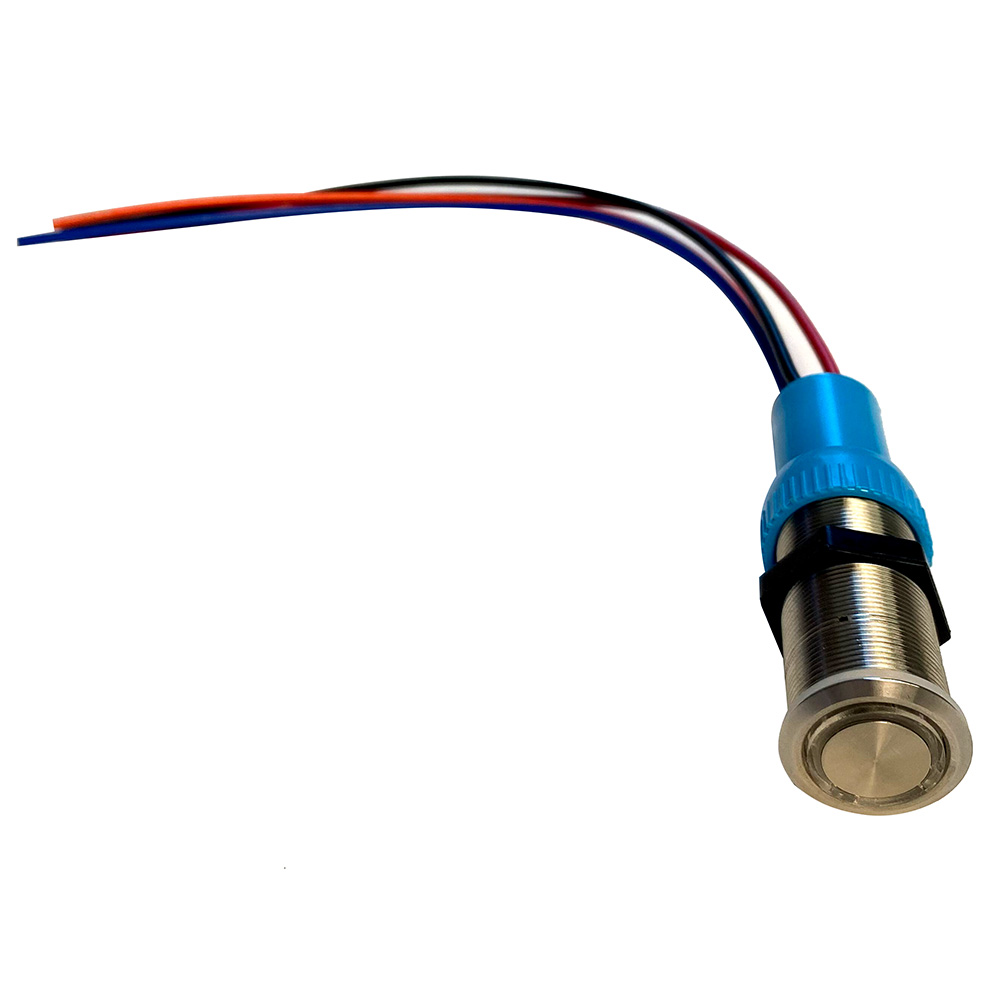

Bluewater 9057-2123-1 19mm Push Button Switch Off/(On)/(On) Double Momentary LED

The Bluewater 9057-2123-1 is a premium 19mm push button switch featuring Off/(On)/(On) double momentary contact operation with multi-color LED illumination. This stainless steel switch combines rugged durability with modern aesthetics, making it ideal for marine, automotive, and industrial applications.

Key Features:

• Stainless steel construction with IP69K waterproof rating for extreme weather resistance
• Tri-color LED illumination: blue backlight when off, green for first momentary activation, red for second momentary activation
• Double momentary contact design - switch returns to off position when released
• 15A/12-24VDC switching capacity handles demanding electrical loads
• Includes mounting gasket and 12-inch pre-wired lead for easy installation
• 50,000 mechanical cycles and 10,000 electrical cycles rated lifespan

Specifications:

• Button diameter: 19mm
• Function: Off-(On)-(On) double momentary contact
• Switch rating: 15A at 12-24VDC
• Material: Stainless steel plated metal
• Waterproof rating: IP69K
• Lead length: 1 foot (color-coded wiring)
• Maximum panel thickness: 6mm

Installation:

Drill a 19mm (3/4-inch) hole in any material up to 6mm thick. Connect the three color-coded button contacts and two LED contacts according to wiring diagram. Secure with included mounting hardware and gasket for waterproof seal.
