Bussmann 16204-3 Power Splicer Block 3-Pole 175A 600V 2/0-8 AWG

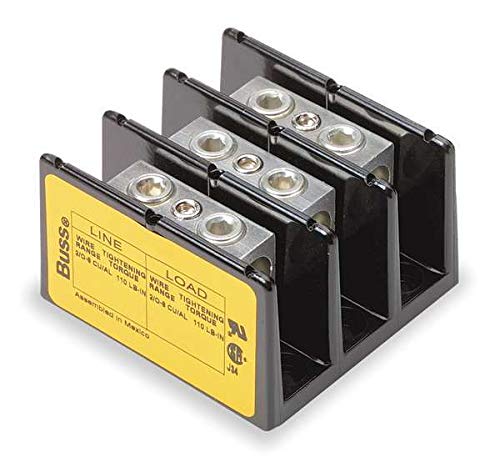

The Bussmann 16204-3 is a three-pole power splicer block designed to splice or transition wire sizes within a circuit, accommodating different connections from a power source to branch loads. Built on a molded thermoplastic base with a tin-plated aluminum connector, this block delivers reliable, high-current distribution in industrial and commercial electrical panels.

Key Features:

• 3-Pole Configuration: One primary and one secondary lug connection per pole for straightforward line-to-load wiring
• 175A Current Rating with a maximum voltage of 600V AC/DC
• Wire Range: Accepts 8 to 2/0 AWG copper or aluminum conductors on both line and load sides
• 200 kA Short-Circuit Current Rating (SCCR) for use in high-demand industrial environments
• Dual Wire Port Rated: Supports dual wire port applications to increase the number of lineside and loadside connections (two wires of equal size, stranding, and material required)
• Ferrule Terminal Compatible: Rated for use with UL Listed ferrules to accommodate a broader range of conductor stranding
• UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels
• UL 94 V-0 Flammability Rating for the thermoplastic housing
• Maximum Operating Temperature: 248°F (120°C)
• Housing Color: Black | Terminal Material: Tin-plated aluminum
• Optional safety covers available (sold separately)

The Bussmann 16204-3 is part of the Eaton Bussmann Series 162 power distribution block lineup, offering a compact and code-compliant solution for panel wiring and wire management in industrial control applications.
