Sea-Dog Line 089513 Swivel Eye Plate with Ring 304 Stainless Steel

The Sea-Dog Line 089513 Swivel Eye Plate with Ring is a versatile marine hardware solution designed for tying off light loads, fenders, and other deck equipment. This corrosion-resistant tie-down point features a 360-degree swiveling eye that rotates freely on the base plate, plus an additional fixed ring to provide multiple attachment options.

Key Features:

• Constructed of stamped 304 stainless steel for superior corrosion resistance in marine environments
• Eye swivels 360 degrees on the base for flexible tie-down angles
• Additional fixed ring provides secondary attachment point
• Installs with #10 flathead fasteners (not included)
• NOT rated for overhead lifting applications

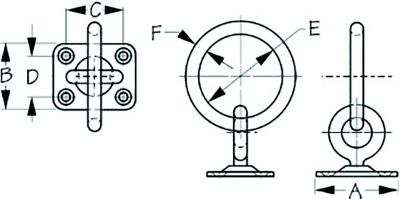

Specifications:

• Dimension A (Overall Length): 2 inches
• Dimension B (Base Width): 1-9/16 inches
• Dimension C (Mounting Hole Spacing): 1-3/8 inches
• Dimension D (Eye Width): 1 inch
• Dimension E (Ring Height): 1-15/16 inches
• Dimension F (Mounting Hole Diameter): 5/16 inch
• Fastener Size: #10 flathead

Ideal for boats, docks, and other marine applications where a reliable, rust-resistant tie-down point is needed. The swiveling design reduces stress on lines and allows loads to move naturally with wave action.
