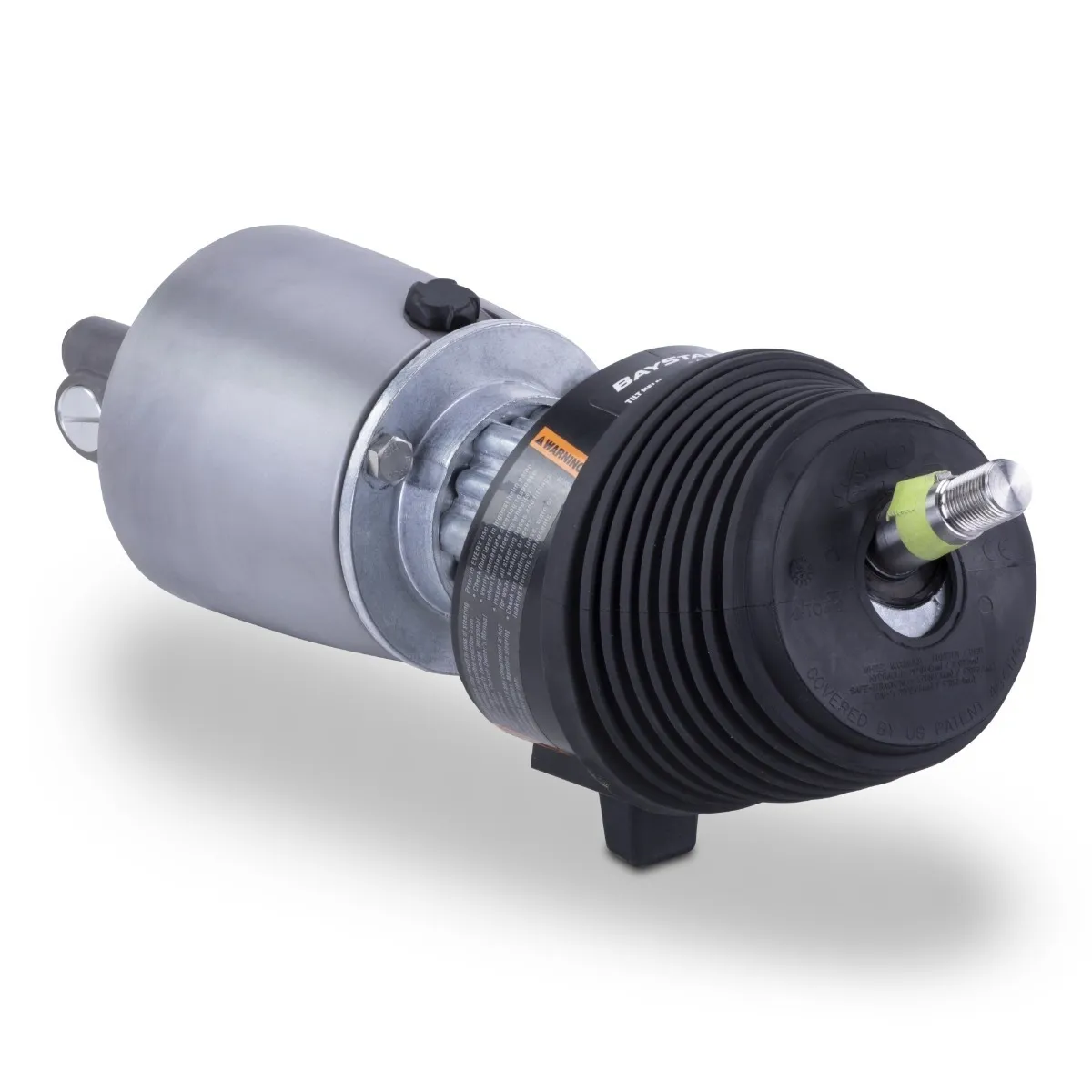

Seastar Solutions HH4315-4 BayStar Sport Tilt Hydraulic Helm 1.4 Cu. In. ORB

The Seastar Solutions BayStar HH4315-4 is a 1.4 cubic inch hydraulic sport tilt helm pump designed for outboard-powered boats rated up to a maximum of 150 horsepower. Part of the trusted BayStar hydraulic steering lineup — manufactured by the makers of SeaStar, the most recognized name in marine steering — this helm delivers smooth, reliable hydraulic steering performance with an updated fourth-generation design.

The HH4315-4 features an updated valve system engineered to provide tighter, quieter, and more responsive steering while reducing chatter caused by overrunning steering loads. More durable check valves improve overall system resilience, including better trailering performance and extended service life. The revamped exterior design enhances aesthetics and introduces a new fill port plug for easier maintenance.

Key Features:

• 1.4 cubic inch fluid displacement
• Rated for outboard engines up to 150 HP maximum
• Sport tilt design with 5 positive locking tilt positions
• Rubber bellows-style cover for a clean, finished appearance
• Positionable O-ring Boss (ORB) hose fitting ports for flexible hose routing
• Standard 3/4" tapered steering shaft with 5/8" threaded end
• 5.2 wheel turns lock to lock
• Requires a 3" cut-out hole in the dash
• 1,000 PSI relief valve setting
• Maximum steering wheel diameter: 20"
• Black finish
• Compatible with SeaStar steering fluid
• Replaces HH4315-3 and earlier HH4315 versions
• Seal kit: HP6032 (sold separately)
• 2-Year limited warranty

Important: This helm is fitted with ORB (O-ring Boss) style hose fitting ports. Do not attempt to install NPT pipe fittings into these ports — use only SeaStar Solutions O-ring style hose fittings to avoid irreparable damage to the helm.
