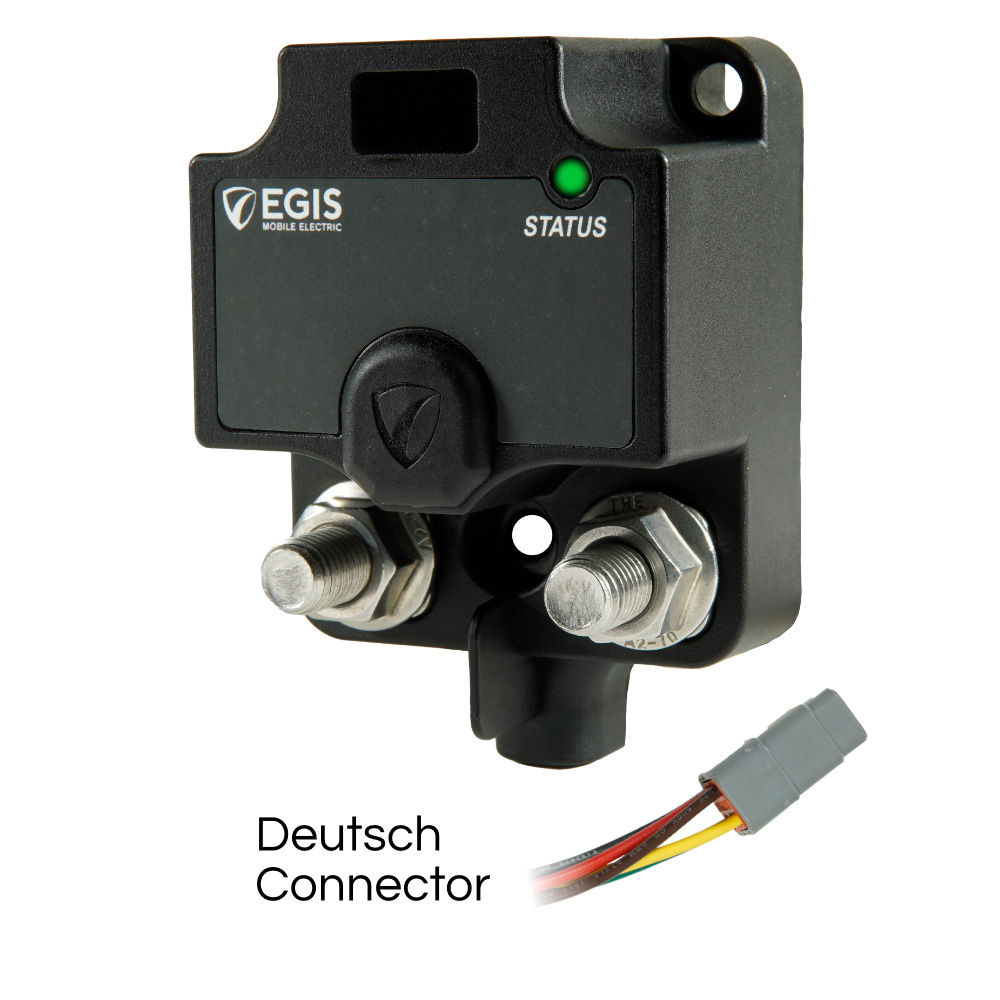

Egis Mobile Electric 8810-1600 XD Series Single Flex 2 Relay ACR DTM Connector

The Egis Mobile Electric XD Series Single Flex 2 Relay-ACR with DTM connector delivers advanced battery management and power distribution for marine, RV, and mobile applications. Featuring a revolutionary bi-stable solenoid design, this relay provides a 35-75% reduction in mounting space and weight compared to traditional relay systems while maintaining exceptional performance and reliability.

Key Features:

• 500A continuous current rating with 1500A max cranking current capacity
• IP67/IP6K9K sealed construction allows mounting in harsh environments
• Programmable via dip switches for flexible configuration and installation
• Forward-facing stainless steel input studs for easy wire landing and corrosion resistance
• 90-95% less off-state current draw (1.3mA) compared to competitive products
• Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products
• Front-facing LED status indicator with remote LED output capability
• Expandable with link and cross-link busbars to additional XD relays for multi-battery systems
• 1,000,000 cycle mechanical switching life for long-term durability

Technical Specifications:

• Voltage Range: 8-36 VDC
• Continuous Current: 500A
• Max Cranking Current: 1500A
• Off-State Current Draw: 1.3mA
• State Change Current: 5A @ 12 VDC / 3A @ 24 VDC
• Sealing Rating: IP67/IP6K9K
• Mounting Hardware: 1/4-20 / M6 compatible

What's Included:

• Protective terminal cover with integrated label recesses
• 40-circuit weatherproof label sheet with blank custom labels
• Stainless steel self-locking flanged nuts
• Configuration guide for dip switch programming

The integrated Gore-Tex vent regulates internal pressure to prevent moisture intrusion, while the protective cover shields terminal studs from inadvertent shorts. Large mounting holes accept standard 1/4-20 or M6 hardware for secure installation. The plug-and-play DTM connector design ensures compatibility with legacy ML Series bi-stable relays, making upgrades and replacements straightforward.
