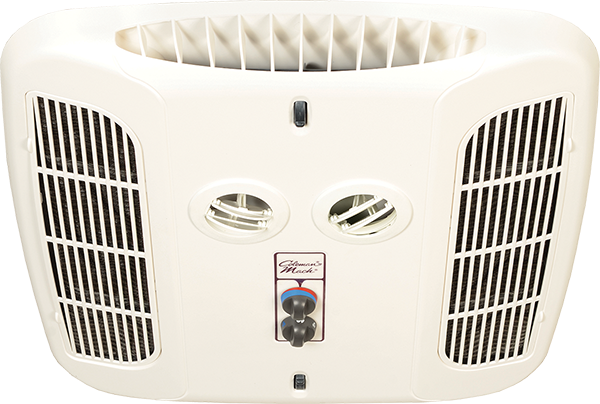

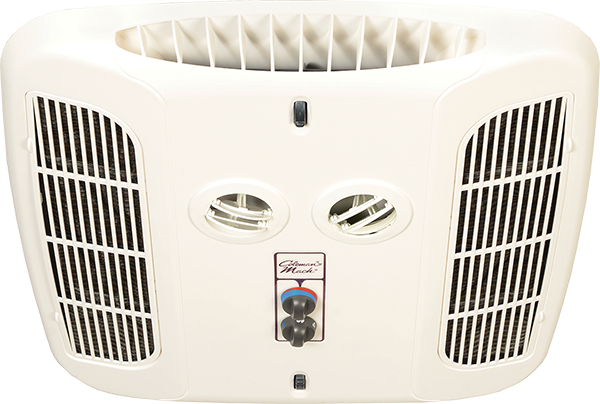

Coleman Mach 9430E7153 Deluxe ChillGrille Non-Ducted RV Air Conditioner Ceiling Assembly

The Coleman Mach 9430E7153 Deluxe ChillGrille is a premium non-ducted air distribution box designed for RVs without built-in ducted air systems. This ceiling assembly serves as the interior interface between your rooftop air conditioner and the RV cabin, efficiently directing conditioned air into the living space.

Key Features:

• ChillGrille with Omni-Directional Louvers: Innovative louver design allows you to direct airflow downward in any direction, or focus it forward and aft when louvers are closed
• Low-Profile Design: Just 2 inches thick, maximizing headroom in your RV cabin while providing a contemporary Euro-style appearance
• Manual Control Knobs: Centrally-mounted temperature and fan speed controls on the horizontal surface for easy access and operation
• Electric Heat Strip Ready: Pre-wired to accept an optional electric heat kit (sold separately) for year-round comfort
• Tool-Free Filter Access: POP-OUT retainer grilles provide convenient access to washable air filters without tools
• Simplified Wiring: Requires only 115V AC power—no 12V DC connection needed
• Secure Installation: Connects to rooftop air conditioner with four bolts, creating a sealed connection to the roof

Compatibility: Works with Coleman Mach 1, Mach 3, Mach 8, Mach 15, and Roughneck air conditioner models. The assembly functions as both the air intake and discharge divider for optimal air circulation. Color: White.

Note: This unit will NOT work with heat pump systems. For heat strip functionality, use Coleman Mach Electric Heat Kit 9233A4551 (Mach 8 requires 47233-4551).
