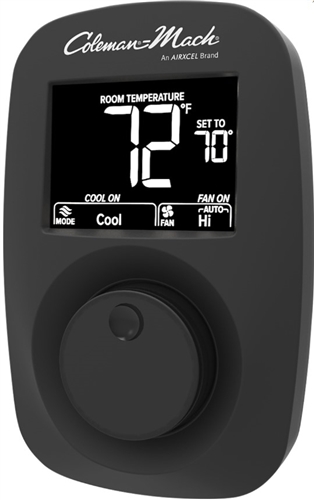

The Coleman-Mach 9420A382 is a digital wall thermostat designed specifically for RV heat pump air conditioning systems and gas furnace control. This thermostat features an easy-to-read black background with white LCD digital display, providing clear visibility in all lighting conditions.
Key Features:
- 12-volt DC operation with temperature range from 33°F to 99°F
- High/Low fan speed control with Auto/On mode fan operation
- Rotary knob with push-button selection for easy temperature adjustment
- Dip switches for selecting connected equipment (heat pump, heat strip, or gas furnace)
- Easy push-style wire terminals with built-in wire length strip gauge
- Self-resetting PTC fuse for circuit protection
- Internal temperature sensor for room temperature monitoring
- Includes mounting plate, screws, wall anchors, and OEM connection plugs
This thermostat is compatible with Coleman-Mach heat pump systems and most single-stage gas furnaces. The unit measures 5-1/2 inches long by 3-3/4 inches wide by 1-1/8 inches high and is intended for use with a 12VDC power supply that does not exceed 2 amps. Minimum 20-gauge thermostat wire is recommended for installation.
Replaces: 9430A3361, 9430A3362, 9430A3371, 9430A3372, 9430A3381, 9430A3382, 9430A3391, 9430A3392, 9430A3401, 9430A3402, 9430A3421, 9430A3422, 9630A3351, 9630A3352, 9630A3361, 9630A3362, 9630A3371, 9630A3372, 9420-381, 9420A381
