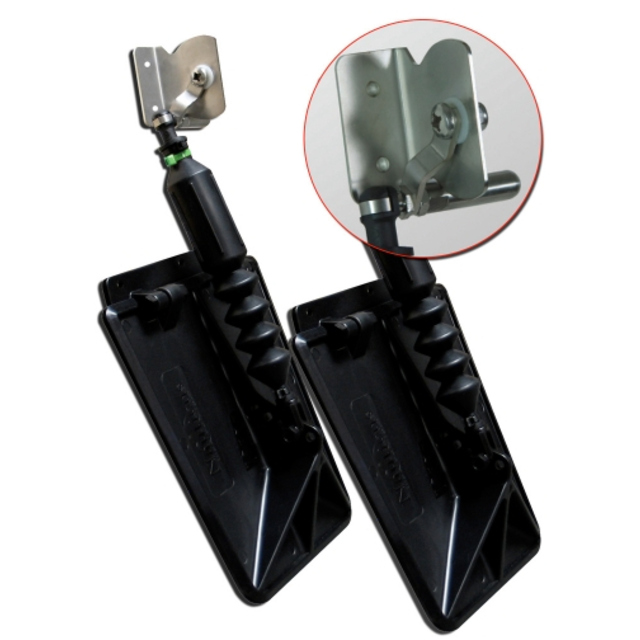

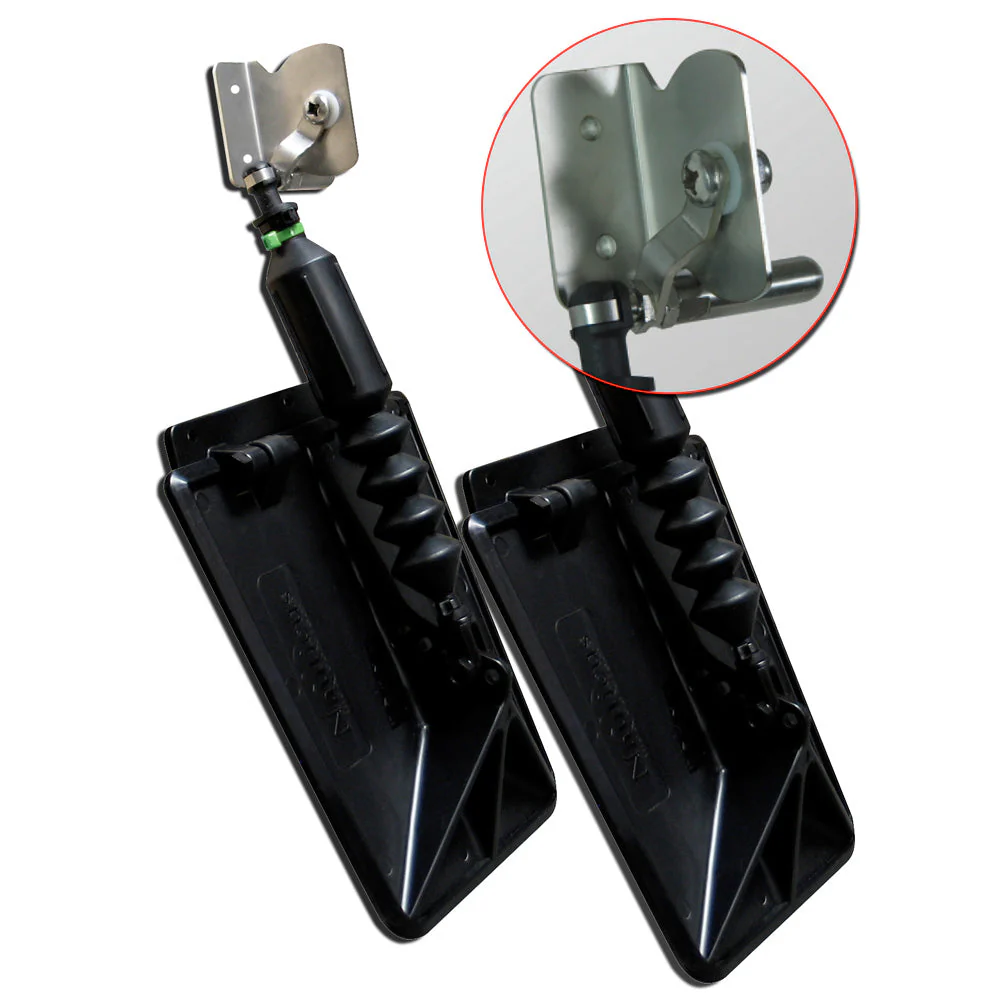

Nauticus SXPT9510-60BL SX ProTroller Trim Tab Kit 9.5 x 10 Inch with 60 Lb Actuators

The Nauticus SXPT9510-60BL SX ProTroller Series is a dual-function marine trim tab system that combines automatic trim tabs with trolling brakes in one innovative kit. This complete system features 9.5 x 10 inch trim plates with 60 lb nitrogen gas actuators, designed to improve boat performance and handling while providing precision trolling control.

Dual-Function Design:

The ProTroller series transforms standard Smart Tabs into trolling brakes with a simple lever adjustment. By moving the lever up or down, you can switch between automatic trim functionality and trolling brake mode, allowing you to slow your boat to ultra-low trolling speeds while maintaining straight tracking and steering control. When the levers are in the down position, the plates create equal braking on both sides without restricting the propeller.

Automatic Trim Tab Technology:

These trim tabs feature fully automatic operation with no operator adjustment required while underway. The nitrogen gas actuators provide lift at the stern by holding the trim plates down during acceleration, with the amount of lift determined by the actuator load rating and initial plate adjustment. The internal valve system dampens plate movement to eliminate reactions to minor water pressure variances, delivering smooth and level performance at all speeds.

Key Features:

• 9.5 x 10 inch trim plates with 60 lb actuators
• Converts between trim tabs and trolling brakes with lever control
• Fully automatic operation requiring no adjustment while underway
• Self-adjusting based on boat load and maneuvering
• No through-hull drilling required for installation
• Complete kit includes all mounting hardware, instructions, and templates
• Nitrogen gas actuators for consistent lift and performance
• Internal valve dampening system for smooth operation

Installation:

Installation can be completed in less than an hour with basic tools including an electric drill, small drill bit, Phillips screwdriver, and two wrenches. All necessary mounting hardware, detailed instructions, and installation templates are included in the kit. Professional installers typically complete installation in 30 minutes or less.
