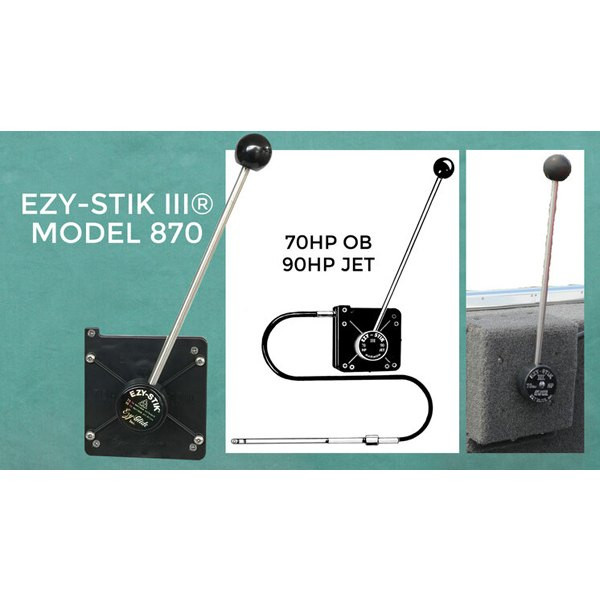

Ezy-Glide 870-1000 Ezy-Stik III Mechanical Stick Steering System 10 Foot

The Ezy-Glide 870-1000 Ezy-Stik III is a complete mechanical stick steering system featuring a one-piece stainless steel drive spool and reinforced composite housing. The part number indicates the Ezy-Stik model (870) and 4-digit cable length (1000 = 10 feet). This system was developed to meet increased demand for quicker response and shorter lock-to-lock travel distance, with a faster turning ratio providing improved responsiveness.

Key Specifications:

• Total handle travel: 44.8 inches (161 degrees)
• Steering ratio: 5.0:1
• Housing dimensions: Approximately 7.5 x 7.5 inches
• Lever length: 16 inches
• Rated for outboard engines up to 70 HP or jet drives up to 90 HP
• Cable length: 10 feet

Important Application Notes:

• Not recommended for 4-stroke engines over 40 HP due to increased negative torque feedback; consider the Ezy-Stik II Model 840 for 4-stroke engines above 40 HP
• Meets or exceeds NMMA/ABYC/BIA standards
• Designed to be mounted towards the port side only

This complete system includes the helm assembly, steering lever with handle, push-pull cable, mounting hardware, and dress cover. Ideal for jon boats, bass boats, and other small watercraft requiring front-mounted stick steering for improved visibility and operator convenience.
