Ezy-Glide 870-1350 Ezy-Stik III Mechanical Stick Steering System 13.5 ft Cable

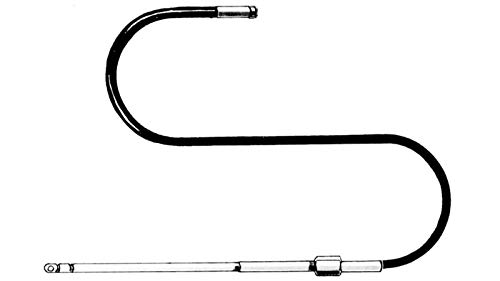

The Ezy-Glide 870-1350 is an Ezy-Stik III Model 870 mechanical stick steering system for outboard-powered boats. It is a complete helm-and-cable steering kit with a 13.5-foot push-pull cable. Compared with traditional mechanical steering, it has a quicker turning ratio. That gives faster response and a shorter lock-to-lock travel distance.

Key Features:

• 13.5-foot (13'6") cable length
• One-piece stainless steel drive spool and reinforced composite housing
• Total lever movement of 44.8 inches (161 degrees) with a 5.0:1 steering ratio
• Rated for outboard engines up to 70 hp and jet drives up to 90 hp
• 16-inch lever (a 20-inch lever is available separately)
• Housing approximately 7.5 x 7.5 inches
• Designed to be mounted toward the port side only
• Complete system includes helm, cable, lever, mounting hardware and dress cover

Installation note: 4-stroke engines send more negative torque feedback to the operator. For a 4-stroke engine over 40 hp, the manufacturer suggests considering the Ezy-Stik II Model 840 instead of the Model 870.
