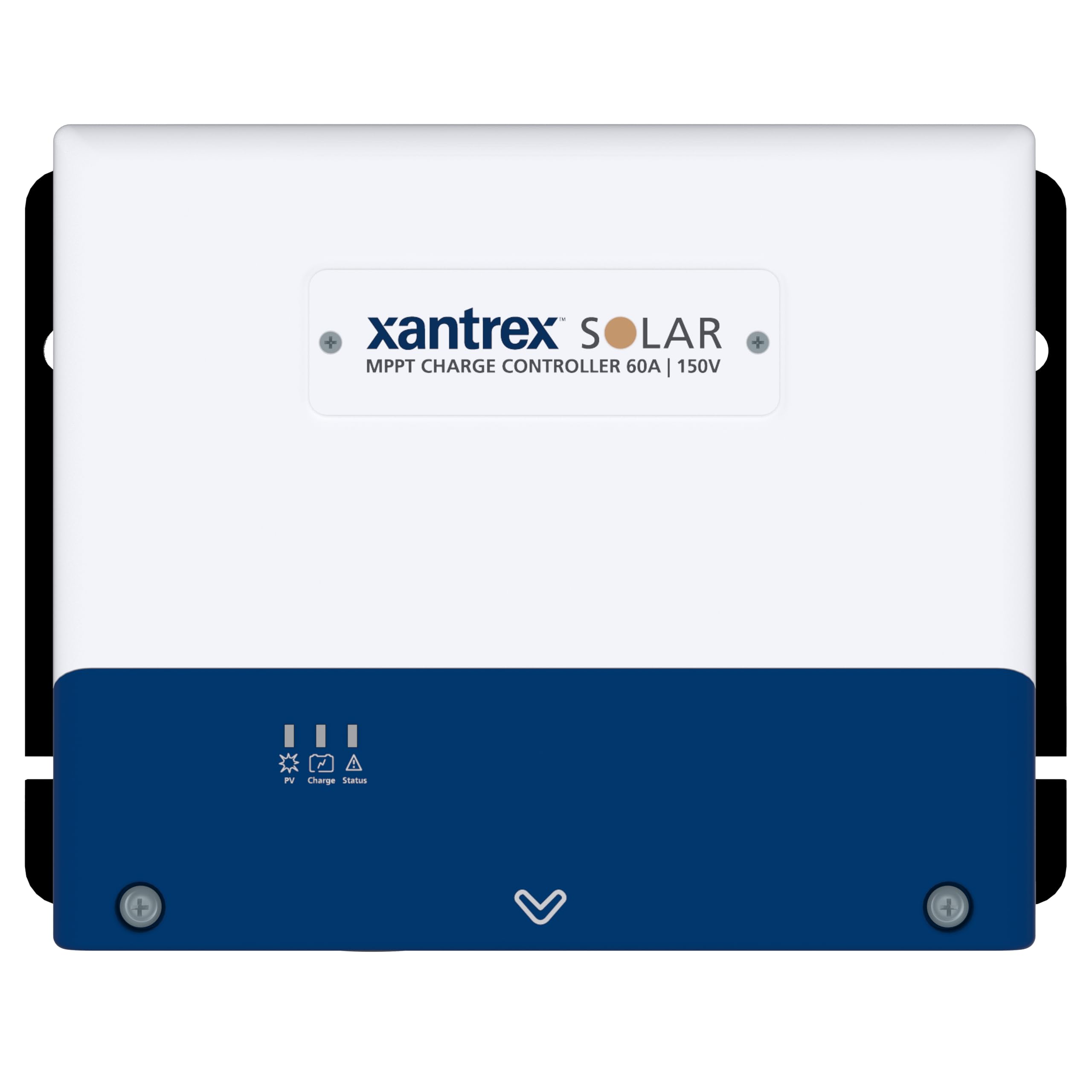

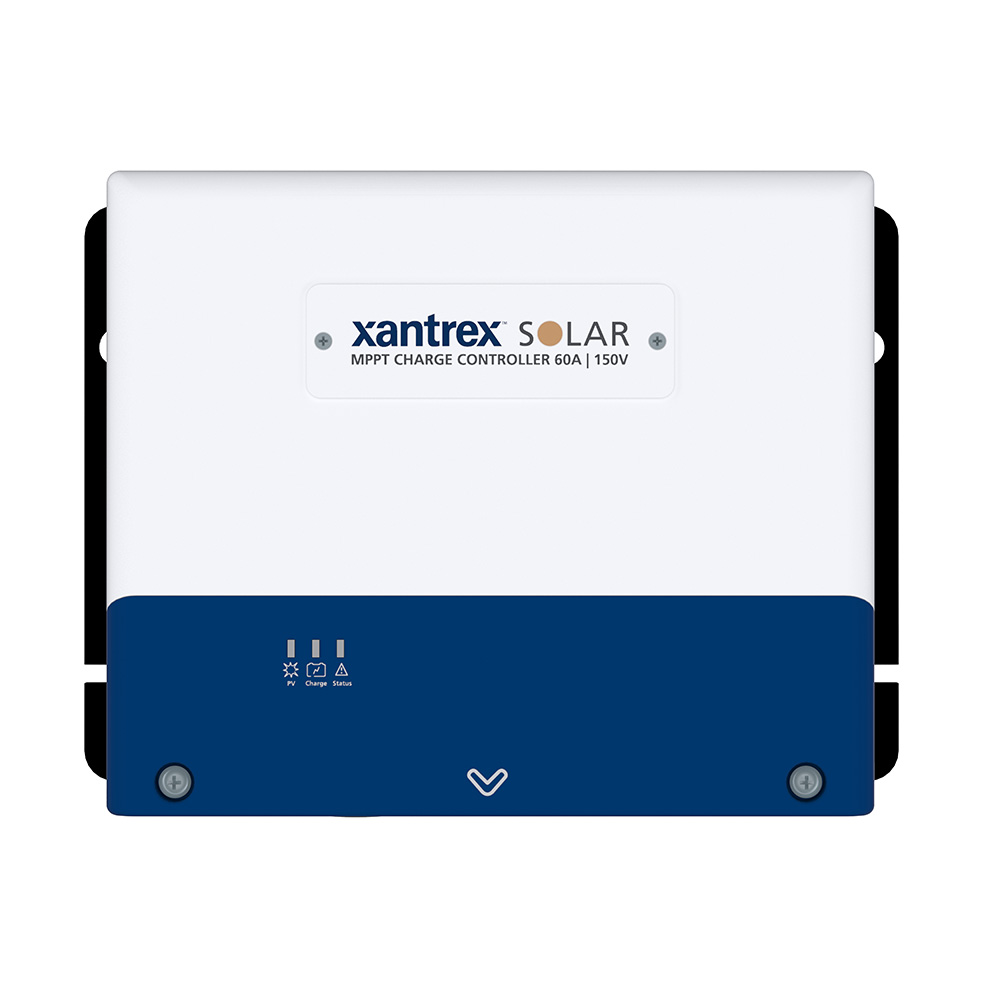

Xantrex Technologies 710-6048-01 60A MPPT Solar Charge Controller 150V

The Xantrex 710-6048-01 MPPT Solar Charge Controller delivers superior efficiency and performance for RV, marine, and off-grid solar systems. Supporting up to 150V input voltage and 60A charging current, this advanced controller features Maximum Power Point Tracking technology that provides up to 30% more power compared to traditional PWM charge controllers.

Key Features:

• 60A charging current with 98% maximum efficiency for optimal power conversion
• MPPT tracking efficiency up to 99.9% with ultra-fast tracking speed
• Auto-detect system voltage: 12V, 24V, 36V, and 48V battery systems
• Maximum input voltage of 150V with voltage range from battery voltage +2V to 120V
• Compatible with multiple battery types: AGM, gel, flooded, lithium (LiFePO4), and custom
• Dual bank output capability for charging both house and starter batteries
• LED indicators display PV charging status, charging stage, and event notifications
• Optional remote panel compatible for enhanced monitoring and control
• Bluetooth connectivity via Xantrex app for real-time monitoring and historical data
• Comprehensive protection: short-circuit, over-current, overload, and temperature compensation

Maximum Solar Panel Capacity by System Voltage:

• 12V systems: 800W
• 24V systems: 1600W
• 36V systems: 2400W
• 48V systems: 3200W

The controller provides real-time energy monitoring with comprehensive historical data tracking, enabling informed decisions for improved system performance and energy savings. Dynamic power reduction technology prevents overheating while enhancing battery performance and longevity. UL1741 and CSA C22.2#107.1 certified for safety and reliability.
