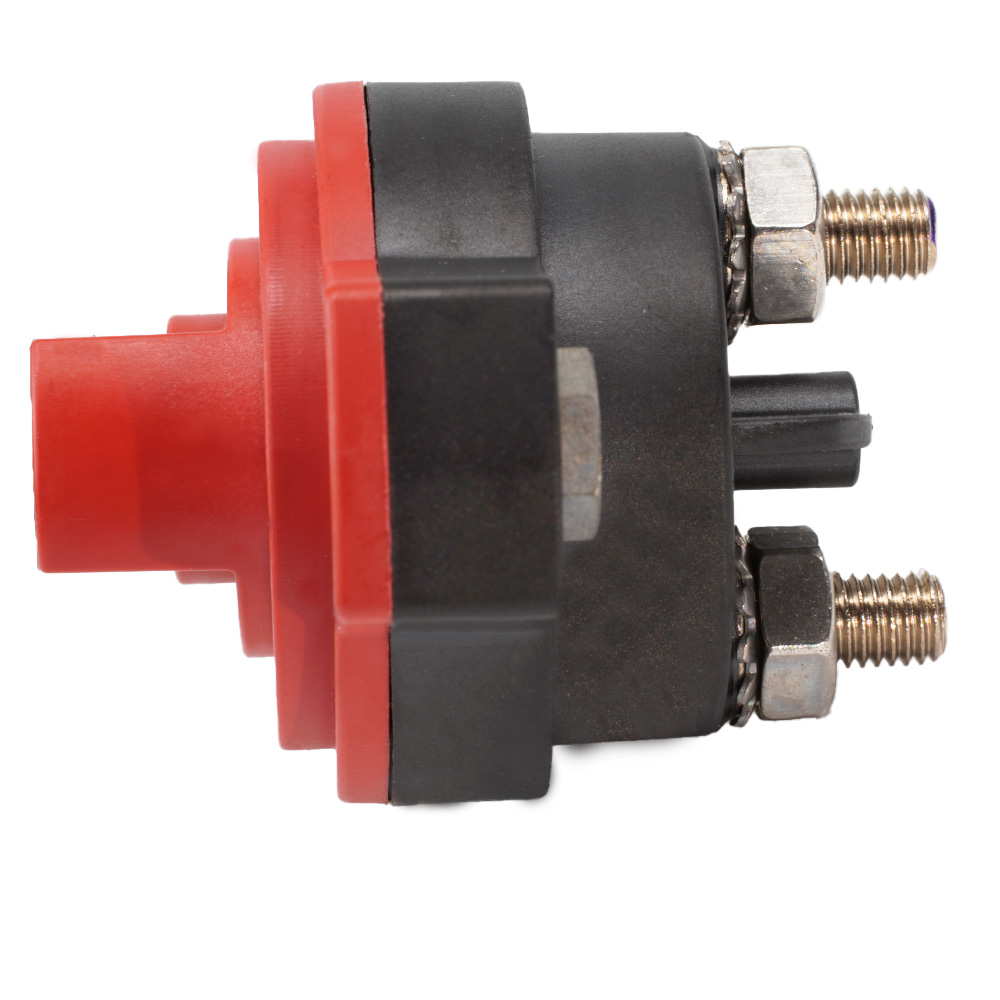

Egis Mobile Electric 4701-40 40A Panel Mount Mini Circuit Breaker

The Egis Mobile Electric 4701-40 is a 40-amp panel mount mini circuit breaker that combines automatic circuit protection with manual on/off switching in one compact, weatherproof unit. This dual-function device serves as both a traditional battery disconnect switch and a circuit breaker, making it ideal for trolling motor applications and other DC electrical systems.

Key Features:

• IP66 weatherproof rating - sealed against dust and water intrusion for reliable performance in harsh marine and outdoor environments
• 42 VDC rating supports 12V, 24V, and 36V DC systems
• High interrupt current of 3,000 amps at 14 VDC - safely protects circuits connected to large paralleled battery banks

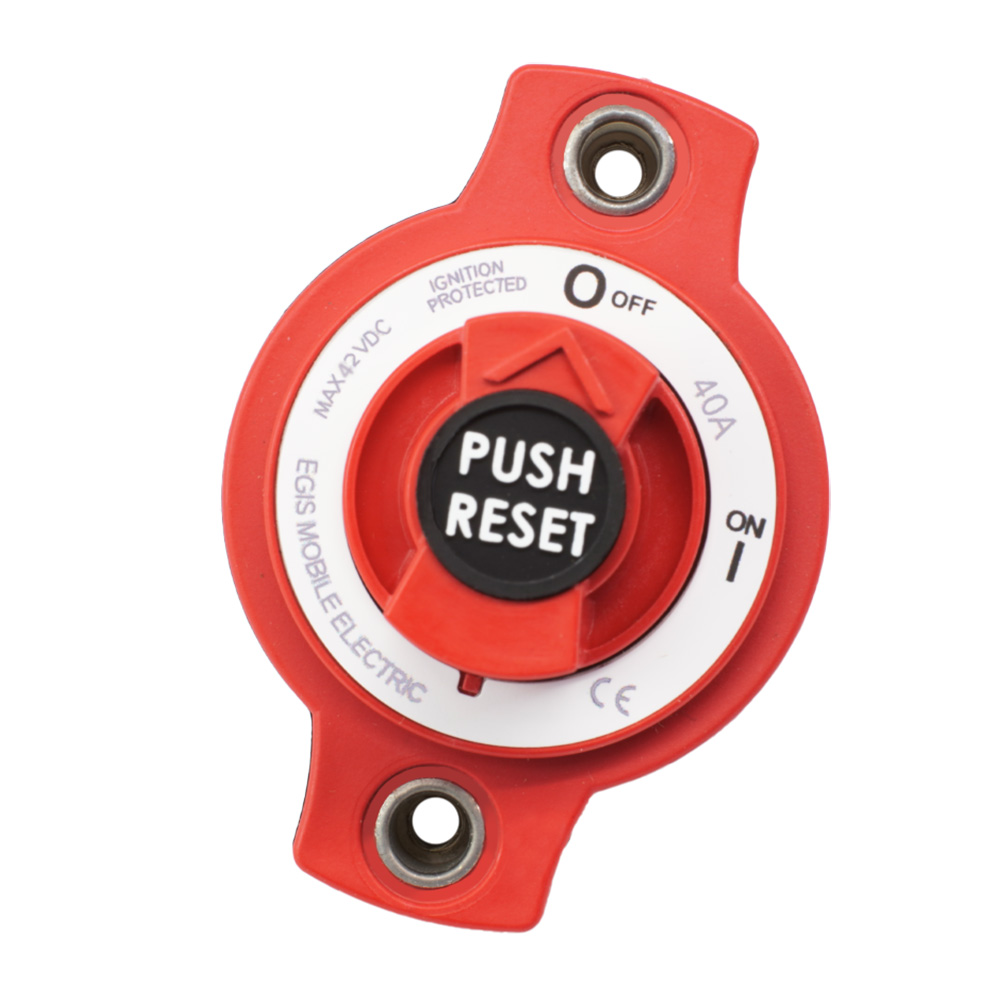

• Easy-to-operate rotary switch with clear visual position indicator
• Compact design allows more circuit protection in less panel space

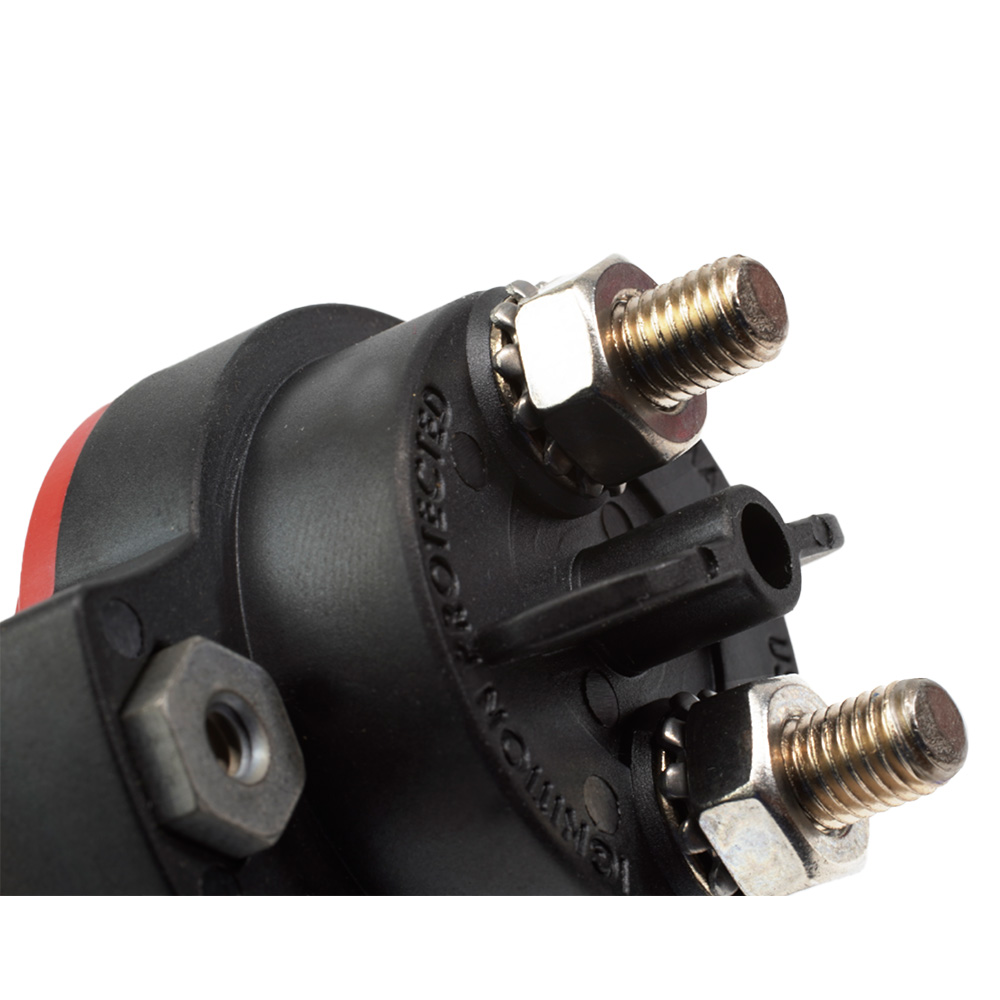

• Stainless steel self-locking hardware resists corrosion and vibration

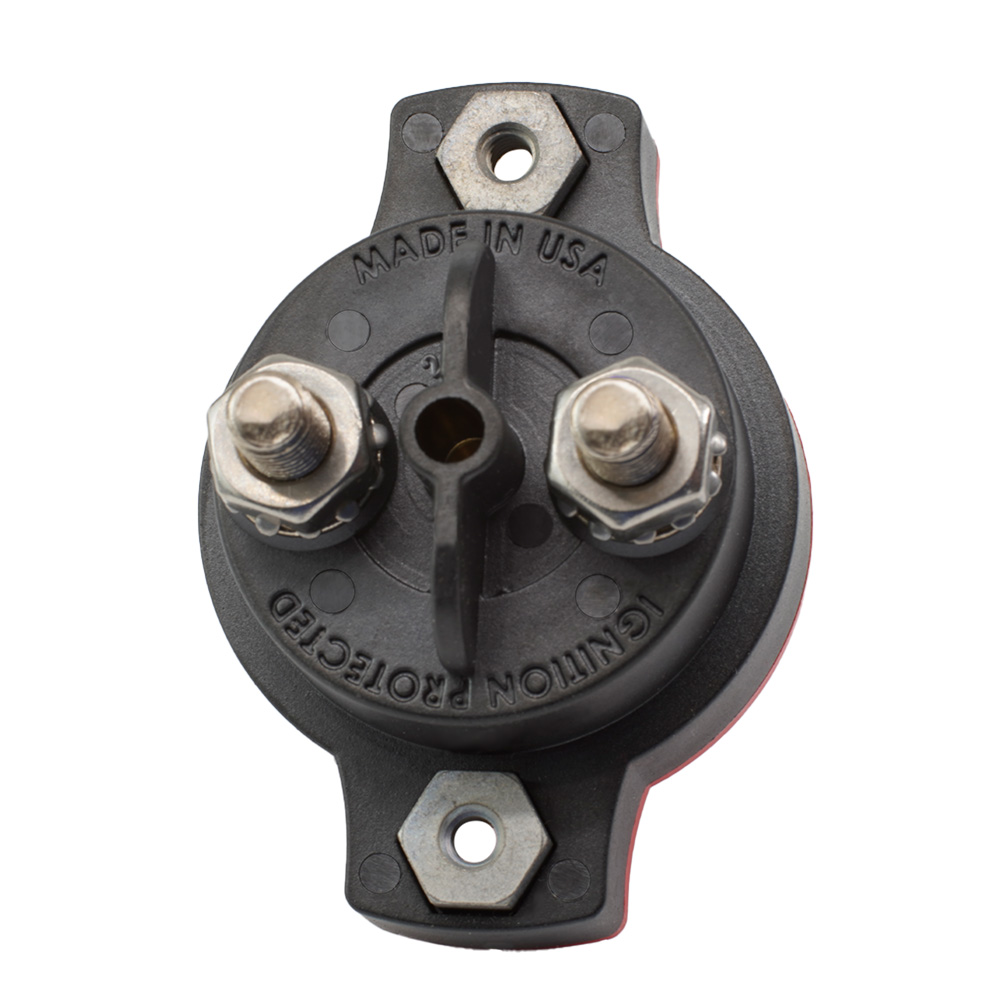

• Ignition protected to prevent inadvertent shorts from positive terminals to grounded surfaces
• High switching endurance rated for 4,000 cycles and 2,000 cycles at full 40A current
• Proudly made in the USA with high-quality components

Technical Specifications:

• Continuous Current: 40 Amps
• Maximum Voltage: 42 VDC
• Interrupt Current @ 14 VDC: 3,000 Amps
• Switching Endurance: 4,000 cycles
• Ingress Protection: IP66
• CE Marked: Yes

This circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation damage while allowing for convenient circuit isolation during maintenance. The high-temperature rated construction and weatherproof design make it suitable for any installation location, from engine compartments to exposed deck areas. Backed by a 4-year manufacturer warranty.
