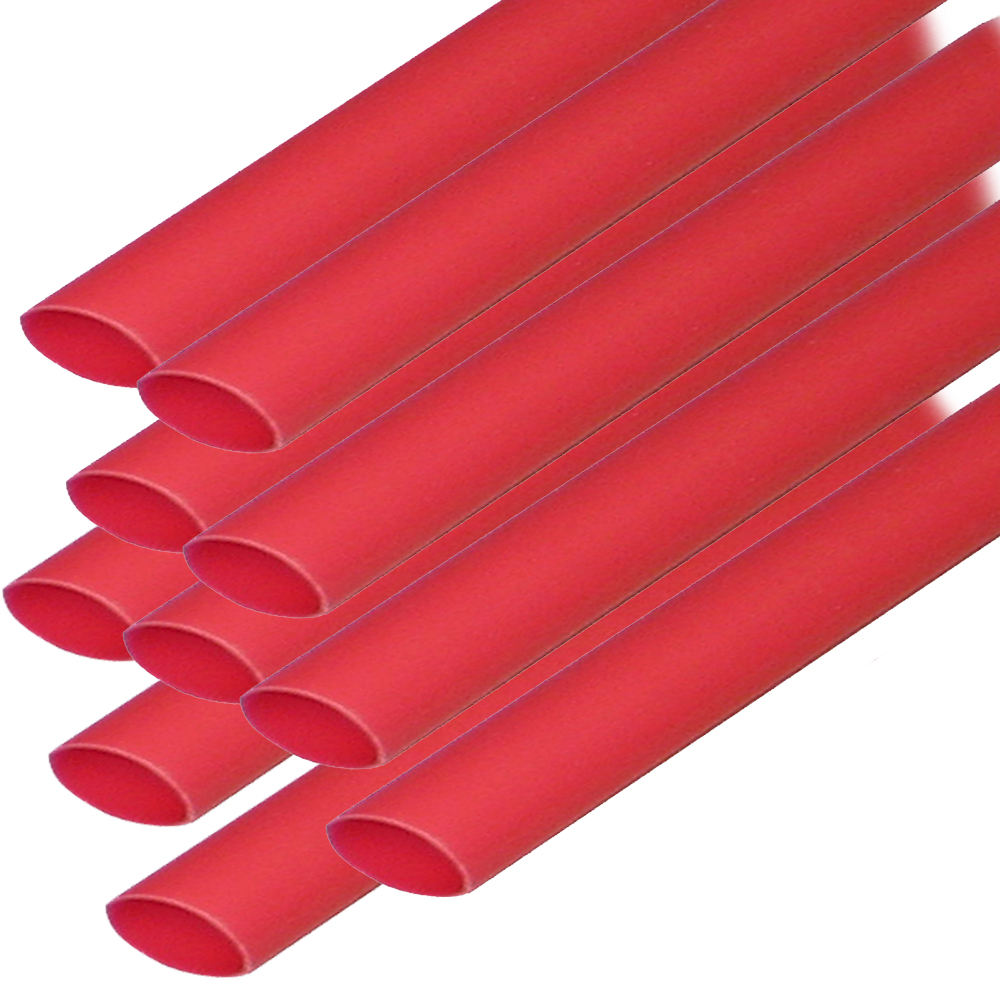

Ancor 302606 Heat Shrink Tubing 3/16" x 6" Red 10-Pack

The Ancor 302606 is a professional-grade heat shrink tubing kit containing 10 pieces of 3/16-inch diameter by 6-inch length red tubing. Designed specifically for marine and automotive electrical applications, this tubing provides superior protection and strain relief for wire connections and terminal ends.

Key Features:

• Cross-linked polyolefin construction - significantly stronger than PVC and won't burn like standard vinyl tubing
• Heat-activated adhesive inner lining creates an impervious seal against salt water, oil, acids, and UV sunlight exposure
• 3:1 shrink ratio - shrinks to one-third of original diameter for secure fit on 20-12 AWG wire
• Activation temperature: 257°F (125°C)
• Operating temperature range: -40°F to 230°F (-40°C to 110°C)
• UL 224 certified for safety and performance
• Provides excellent strain relief at connection points

Installation Tips:

For best results, apply heat gradually using a heat gun or torch, moving the heat source continuously along the length of the tubing. This prevents inconsistent shrinking or burning. The adhesive lining will melt and flow to create a waterproof seal as the tubing shrinks around the wire or connection.

Ideal for marine wiring, trailer wiring, automotive electrical repairs, and any application requiring moisture-resistant wire protection. Each pack contains 10 pieces for multiple repairs or installations.
