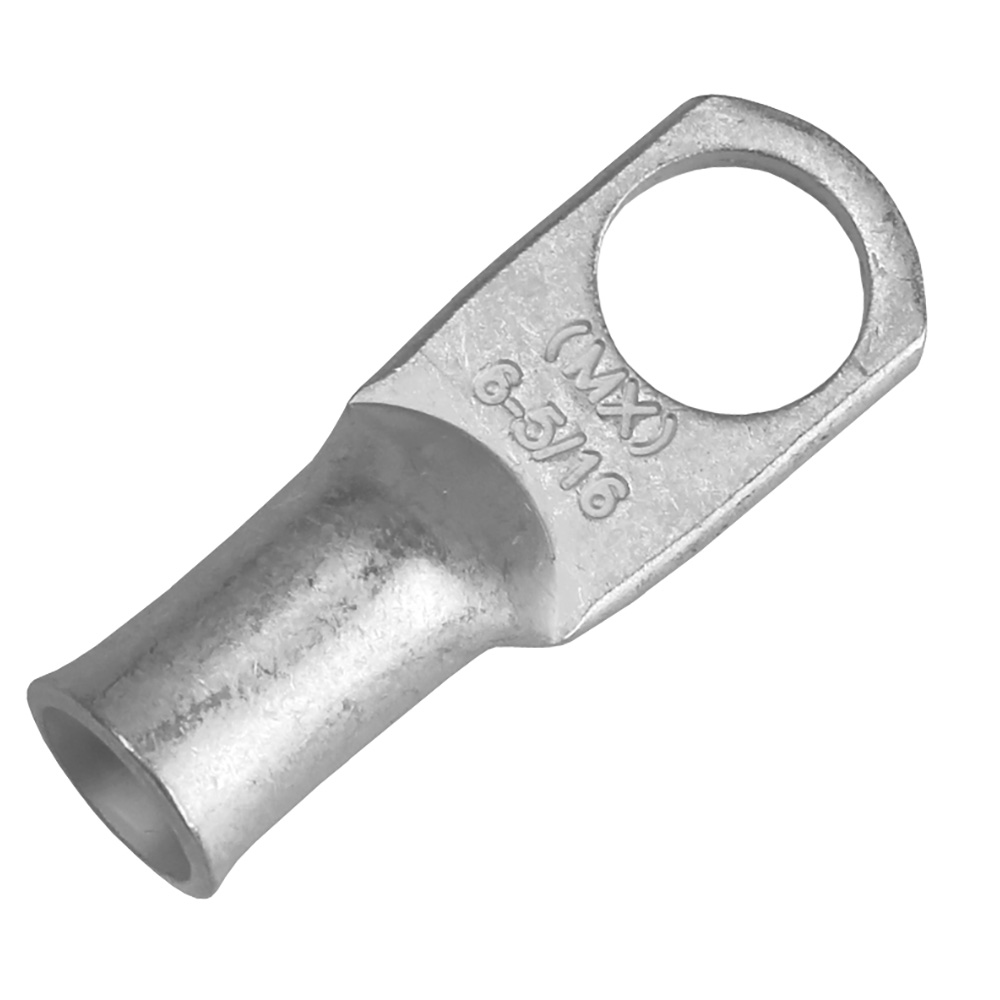

Pacer Performance TAE6-56R-10 Tinned Copper Lug 6 AWG 5/16" Stud 10 Pack

The Pacer Performance TAE6-56R-10 is a premium closed-end tinned copper lug designed for marine and automotive electrical applications. This 10-pack features 6 AWG lugs with 5/16" stud holes, manufactured from seamless 99.9% pure copper tubes for maximum conductivity and reliability.

Superior Marine-Grade Construction:

These tin-plated lugs feature no exposed seams, making them ideal for marine environments where corrosion resistance is critical. The closed-end design allows for fully waterproof connections when paired with epoxy-lined heat shrink tubing, completely enveloping the conductor and protecting it from moisture, salt spray, and other harsh elements.

Key Features:

• Manufactured from seamless 99.9% electrolytic copper for superior conductivity
• Tin-plated finish prevents corrosion in marine applications
• No exposed seams for maximum durability
• Rated for 600V applications
• Larger pad area provides better contact and electrical transfer
• Wire size and stud hole size stamped on pad for easy identification
• Can be crimped or soldered depending on application needs
• Controlled flare design allows easy cable insertion
• Tight barrel-to-pad transition maximizes usable barrel length
• Designed specifically for stranded copper wire

Certifications and Compliance:

• UL and CSA approved
• RoHS compliant
• E.T.P. (Electrolytic Tough Pitch) CDA-110 copper
• ASTM-B-152 rated at 100% conductivity
• Exceeds SAE Conductivity Standards J163 and J1811

Technical Specifications:

• Wire gauge: 6 AWG
• Stud hole size: 5/16"
• Overall length: 1.266"
• Pad width: 0.438"
• Clearance: 0.344"
• Quantity: 10 pieces per package

Installation:

Strip wire to the proper length, slide the lug over the exposed conductor until insulation meets the lug edge, then crimp using the appropriate crimping tool. For waterproof connections, apply epoxy-lined heat shrink tubing over the completed crimp.
