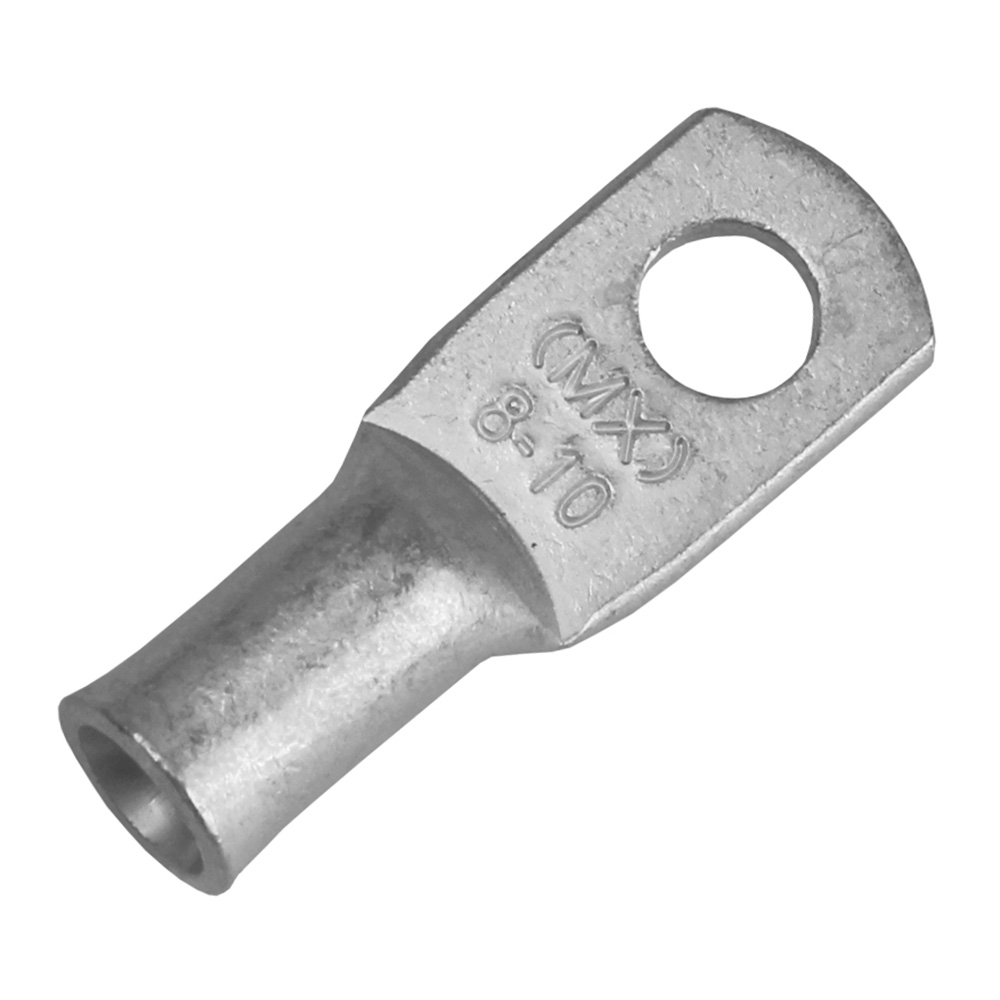

Pacer Performance TAE8-10R-10 Tinned Copper Lug 8 AWG #10 Stud 10-Pack

The Pacer Performance TAE8-10R-10 is a professional-grade closed-end tinned copper lug designed for 8 AWG stranded copper wire with a #10 stud size. These premium electrical connectors are engineered for marine, automotive, and industrial applications where reliability and corrosion resistance are critical. Each lug is manufactured from seamless tubes of 99.9% electrolytic tough pitch copper, ensuring maximum conductivity and long-term performance.

Key Features:

• Tin-plated construction with no exposed seams for superior corrosion resistance
• Made from seamless 99.9% copper tubes (CDA-110) for optimal conductivity
• Rated for 600V applications
• Larger contact pad area for improved electrical connection
• Cable size and stud hole clearly stamped on pad for easy identification
• Controlled flare design allows easy cable insertion
• Tight barrel-to-pad transition provides maximum usable barrel length
• Can be crimped or soldered for versatile installation options
• Designed specifically for stranded copper wire

Marine-Grade Protection:

These closed-end lugs excel in marine environments where moisture and corrosion are constant threats. The tin plating and seamless construction prevent water intrusion, and when paired with epoxy-lined heat shrink tubing, they create completely waterproof connections that fully envelop the conductor with nothing exposed to the elements.

Certifications & Compliance:

• UL & CSA Approved
• RoHS Compliant
• ASTM-B-152 copper rated at 100% conductivity
• Exceeds SAE Conductivity Standards J163 & J1811

Specifications:

• Wire Size: 8 AWG
• Stud Size: #10
• Length: 1.187 inches
• Width: 0.438 inches
• Clearance: 0.344 inches
• Voltage Rating: 600V
• Quantity: 10 pieces per package

Installation: Strip wire to proper length, slide lug over exposed conductor until insulation reaches the lug edge, then crimp using the appropriate crimping tool. For maximum durability in harsh environments, apply epoxy-lined heat shrink tubing over the completed connection.
