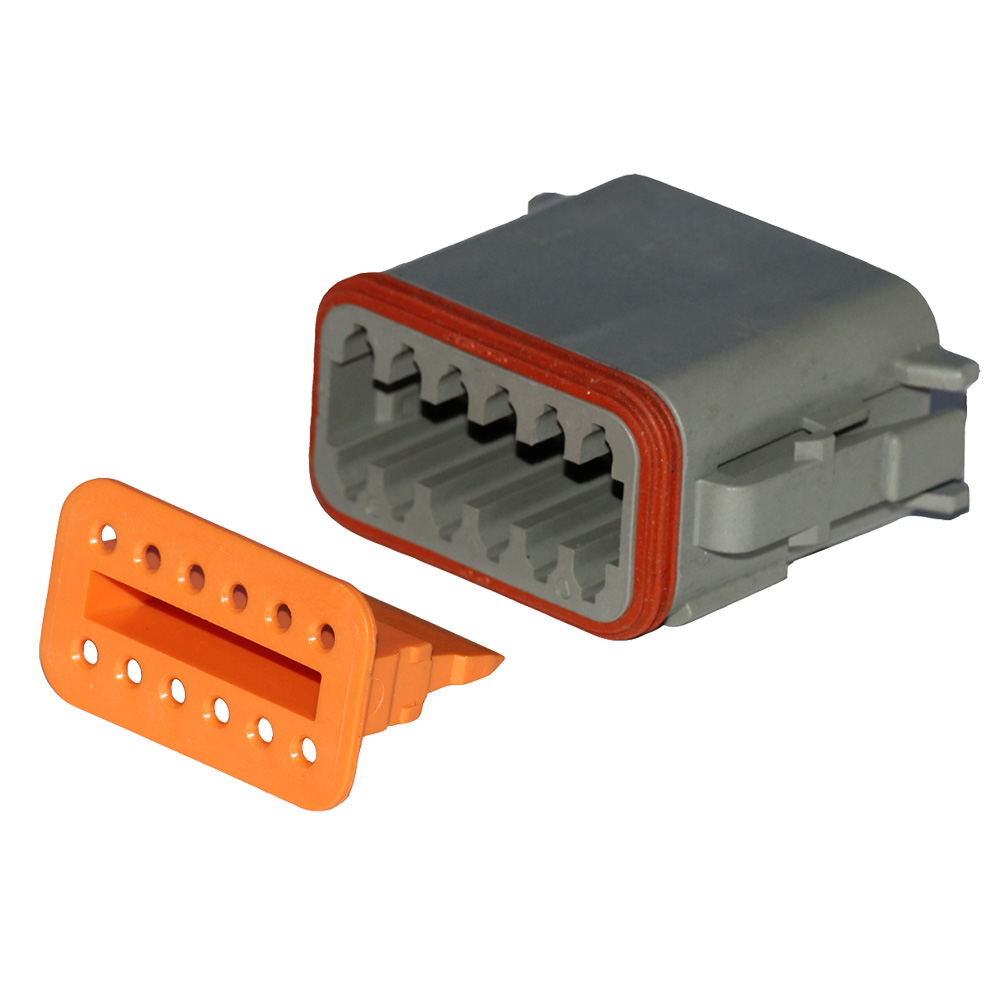

Pacer Performance TDT06-12S-5 Deutsch DT 12-Position Plug & Wedge Lock Kit 5-Pack

The Pacer Performance Deutsch DT Plug & Wedge Lock Kit provides environmentally sealed electrical connections for demanding automotive, marine, and powersports applications. This 12-position kit includes 5 rectangular plug housings and 5 wedge locks, designed to create waterproof connections that resist vibration and shock in harsh environments.

Key Features:

• DT Series 12-cavity rectangular plug housings with integrated wedge locks for secure contact retention
• IP67-rated ingress protection for complete waterproof performance
• Glass fiber-reinforced plastic housing for exceptional durability
• Redundant silicone seals prevent moisture intrusion
• Hand-insertable and removable contacts for easy field installation
• Accommodates size 16 contacts rated for 13 amps (20-14 AWG wire)
• Wide operating temperature range: -55°C to 125°C (-67°F to 257°F)

Applications & Benefits:

• Ideal for wire-to-wire connections in automotive lighting, auxiliary power, and sensor circuits
• Perfect for marine electronics, off-road vehicle accessories, and trailer wiring
• Wedge lock design ensures proper contact alignment and prevents accidental disconnection
• Field-proven reliability in extreme conditions including water submersion, dust, and temperature fluctuations

Technical Specifications:

• Number of Cavities: 12 positions
• Cavity Style: Plug (accepts socket contacts)
• Contact Size: 16 (13 amp maximum current)
• Wire Gauge Compatibility: 20-14 AWG
• Package Contents: 5 plug housings + 5 wedge locks
• Compliance: UL-94 Recognized, EU RoHS/ELV compliant

Important Note: This kit includes housings and wedge locks only. Deutsch DT pins and sockets must be purchased separately to complete the connection assembly.
