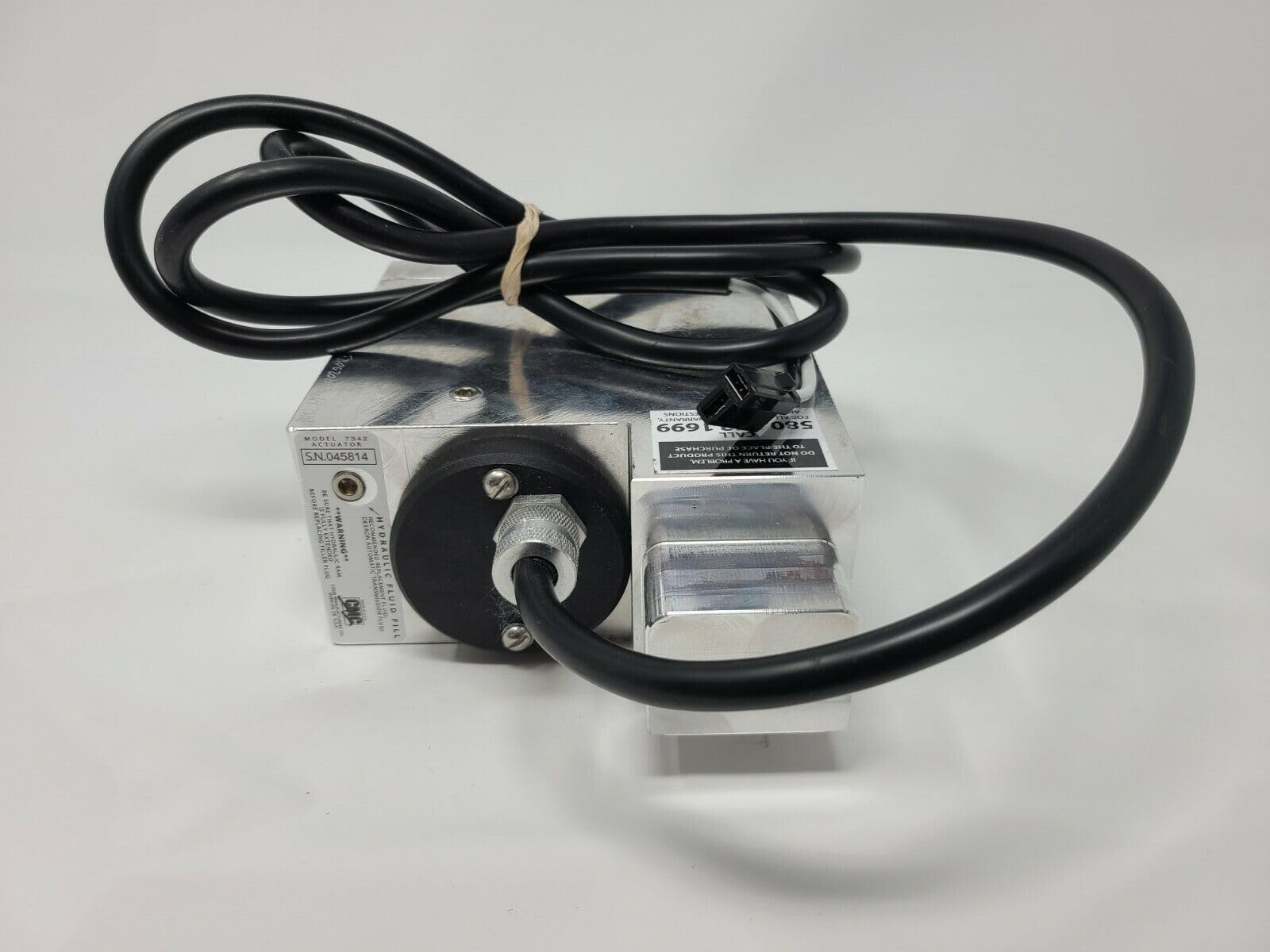

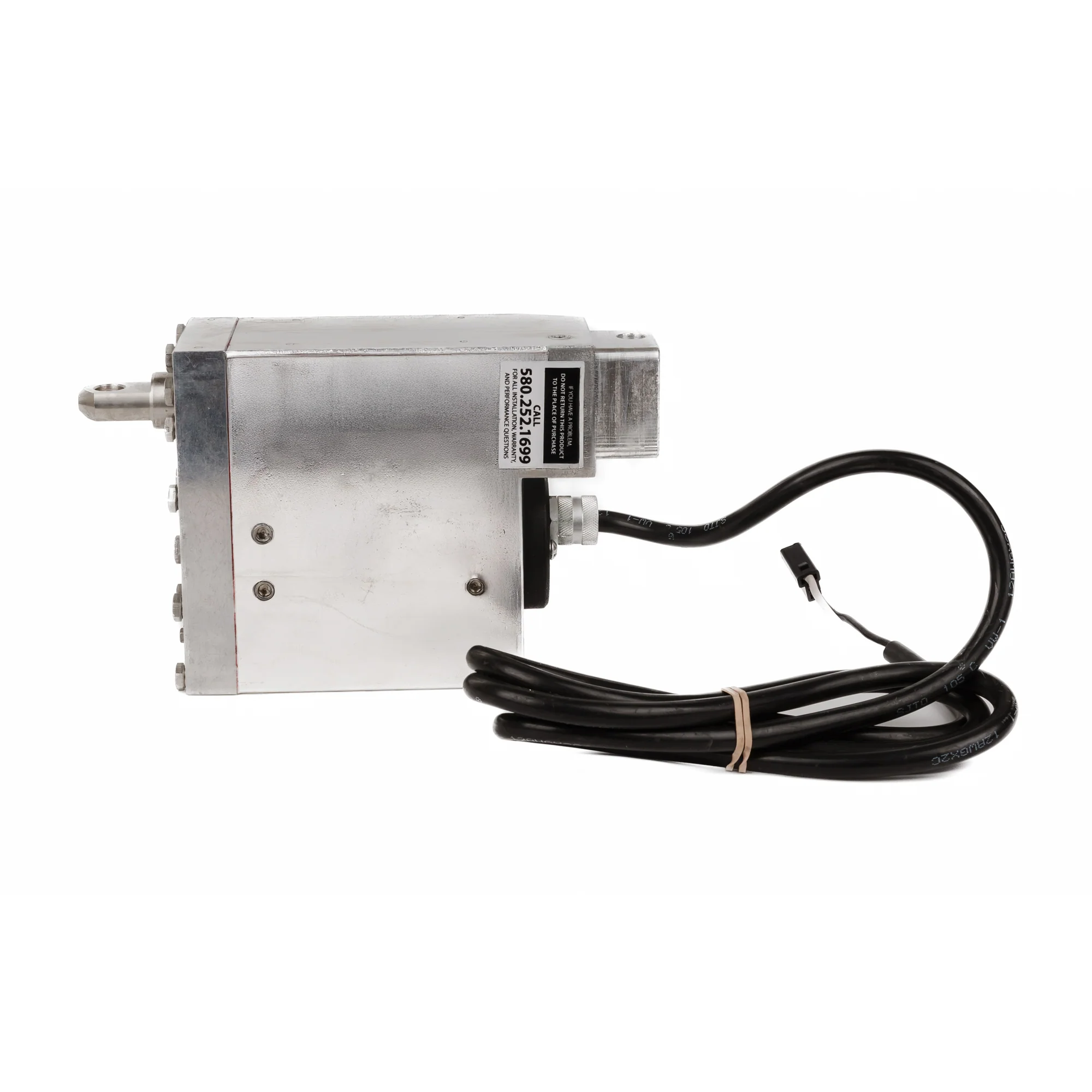

T-H Marine 7342 CMC High Speed Power-Lift Hydraulic Actuator

The T-H Marine 7342 is a high-performance hydraulic actuator designed as a direct replacement for high-speed hydraulic jack plates and tilt/trim systems. This patented actuator delivers fast, efficient performance with a travel rate of 37 inches per minute, significantly faster than standard actuators.

Key Features:

• Self-contained design with integrated pump, motor, reservoir, and cylinder in one compact unit
• 5-inch stroke length with 3,141 lbs minimum extend force and 1,744 lbs minimum retract force
• Constructed from 6061-T6 aluminum alloy with 18-8 stainless steel fasteners for corrosion resistance
• 100% non-ferrous materials make it fully submersible for marine environments
• No-leak seal and wiper system keeps contaminants out of working components
• 12VDC permanent magnet motor with 21 cubic inch (0.7 pint) fluid capacity
• Pre-filled with hydraulic fluid and ready to install

Compatible Models:

• CMC Power-Lift hydraulic jack plates (models 61301, 61302, 65301, 65302)
• CMC PT-35 Tilt and Trim (model 52100)
• T-H Marine Hydro-Jacker jack plates (models HYJ-6HSC-DP, HYJ-10HSC-DP)
• T-H Marine ATLAS Micro Jacker (model AHJM-4-DP)
• Can replace 7050 actuator in compatible CMC jack plates (not compatible with PT-130)

This actuator is designed specifically for high-speed versions of hydraulic jack plates and can be used to retrofit standard versions to higher speed operation. The self-contained design eliminates the need for external hydraulic hoses, pumps, and separate cylinders, simplifying installation and reducing potential leak points.
