Blue Sea Systems 3135 SMS Panel Enclosure 12/24V DC 100A UL Main 3 Branch Circuit Breaker

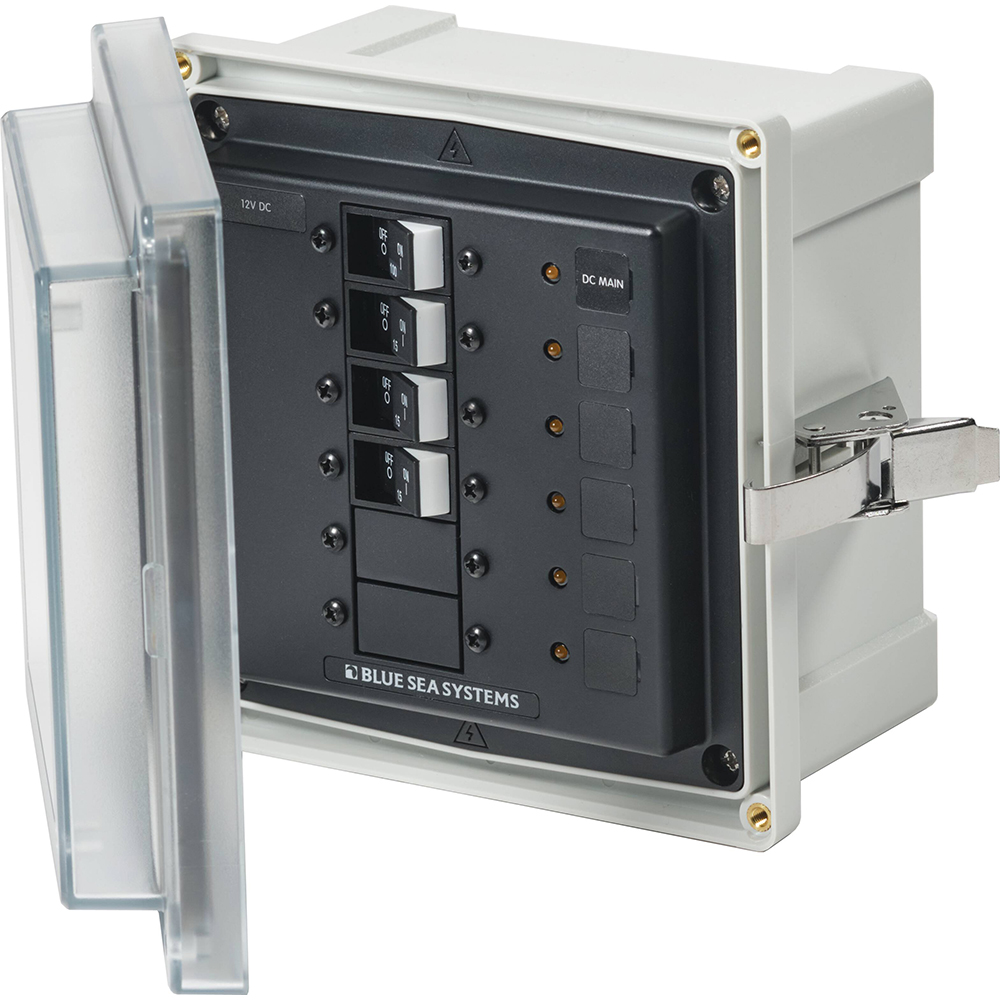

The Blue Sea Systems 3135 SMS Panel Enclosure is a professional-grade waterproof housing designed for DC circuit breakers and large frame electrical devices in marine and mobile applications. This robust enclosure accommodates one UL 489 DC Main circuit breaker (up to 100A) and three Branch circuit breakers rated for 12/24V DC (15A each), providing comprehensive electrical distribution and protection.

Key Features:

• Durable Construction: Glass-filled polycarbonate base with clear cover allows easy visual inspection of circuit breaker status without opening
• Weather Protection: Oversized, formed-in-place seamless PUR gasket with overlapping cover design for superior strength and gasket protection
• Flexible Configuration: Blank apertures accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers for custom breaker loading
• Easy Installation: Easily removable stainless steel hinge pin allows unobstructed installation access
• Secure Closure: Stainless steel latch secures cover without penetrating the enclosure, maintaining waterproof integrity
• LED Indicators: Six amber LEDs (12/24V DC) provide backlighting and ON indication for circuit status at a glance
• Complete Package: Includes six waterproof cable glands, circuit labels, mounting hardware, and instruction manual

Technical Specifications:

• Voltage Rating: 12/24V DC
• Circuit Capacity: 1 x UL 489 DC Main (up to 100A), 3 x Branch (15A each)
• Overall Dimensions: 7.6" H x 7.4" W x 4.7" D
• Enclosure Interior: 6" H x 6" W x 4" D
• LED Indicators: 6 x Amber 12/24V DC
• Material: Glass-filled polycarbonate with stainless steel hardware

Ideal for boats, RVs, and off-grid power systems requiring organized, protected circuit breaker installations in harsh environments. Sold individually with all mounting hardware included.
