Pacer Performance TDTHD-1-4KT Deutsch 6 AWG DTHD Power Connector Kit

The Pacer Performance Deutsch DTHD connector kit provides a professional-grade, environmentally sealed solution for heavy-duty electrical connections. This complete kit includes both plug and receptacle with pre-matched contacts, designed specifically for 6 AWG wire applications requiring reliable, field-serviceable connections.

Key Features:

• Heavy-duty power handling: 60-100 Amps at 125°C operating temperature
• IP67-rated environmental sealing protects against water and dust intrusion
• Redundant silicone seals ensure long-term reliability in harsh conditions
• Hand-insertable contacts for easy field installation without special tools
• Compact, rugged design suitable for automotive, marine, and industrial applications
• Includes reducer crimp sleeves for compatibility with 8 or 10 AWG wire

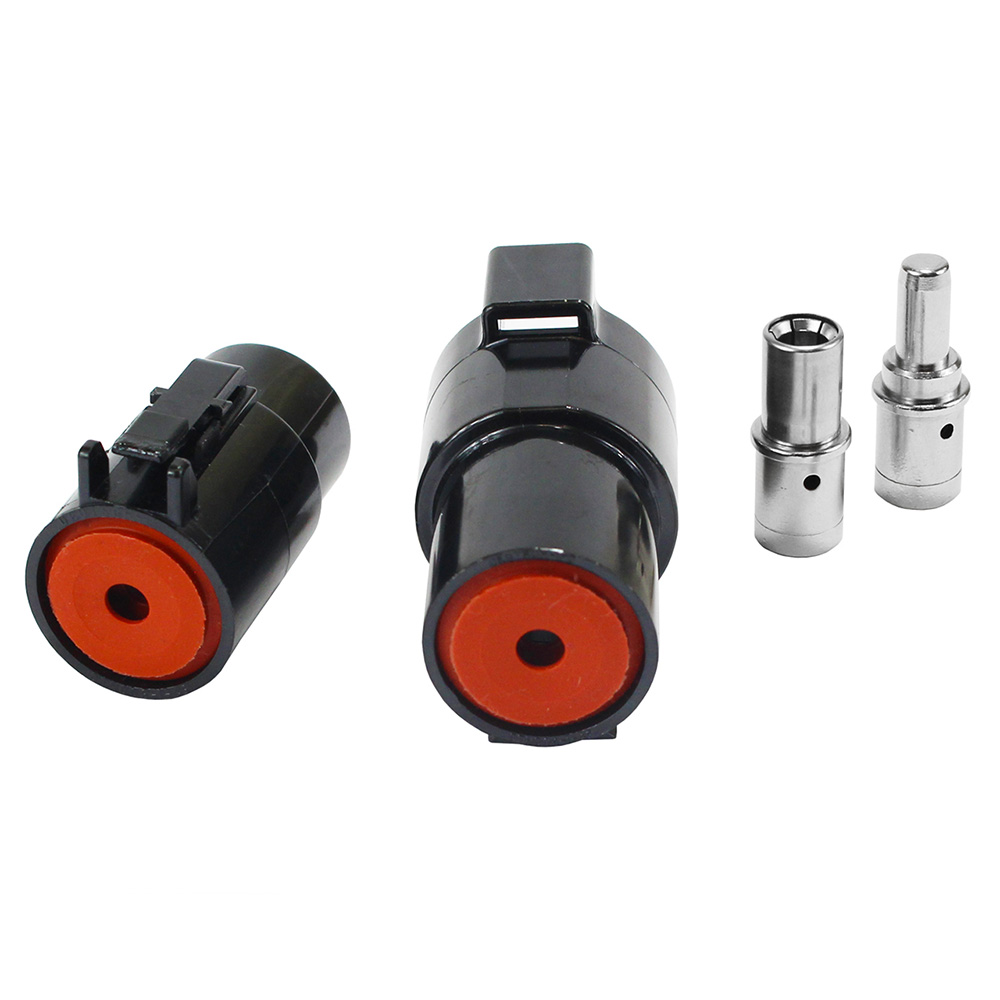

Complete Kit Contents:

• (1) DTHD plug housing
• (1) DTHD receptacle housing
• (1) Size 4 socket contact
• (1) Size 4 pin contact
• (2) Reducer crimp sleeves for 10 or 8 AWG wire

This Deutsch DTHD connector system offers a superior alternative to traditional wire splicing, providing a disconnectable junction that maintains full environmental protection. Fully compliant with EU RoHS/ELV standards, these connectors deliver field-proven reliability for wire-to-wire connections in demanding environments.
