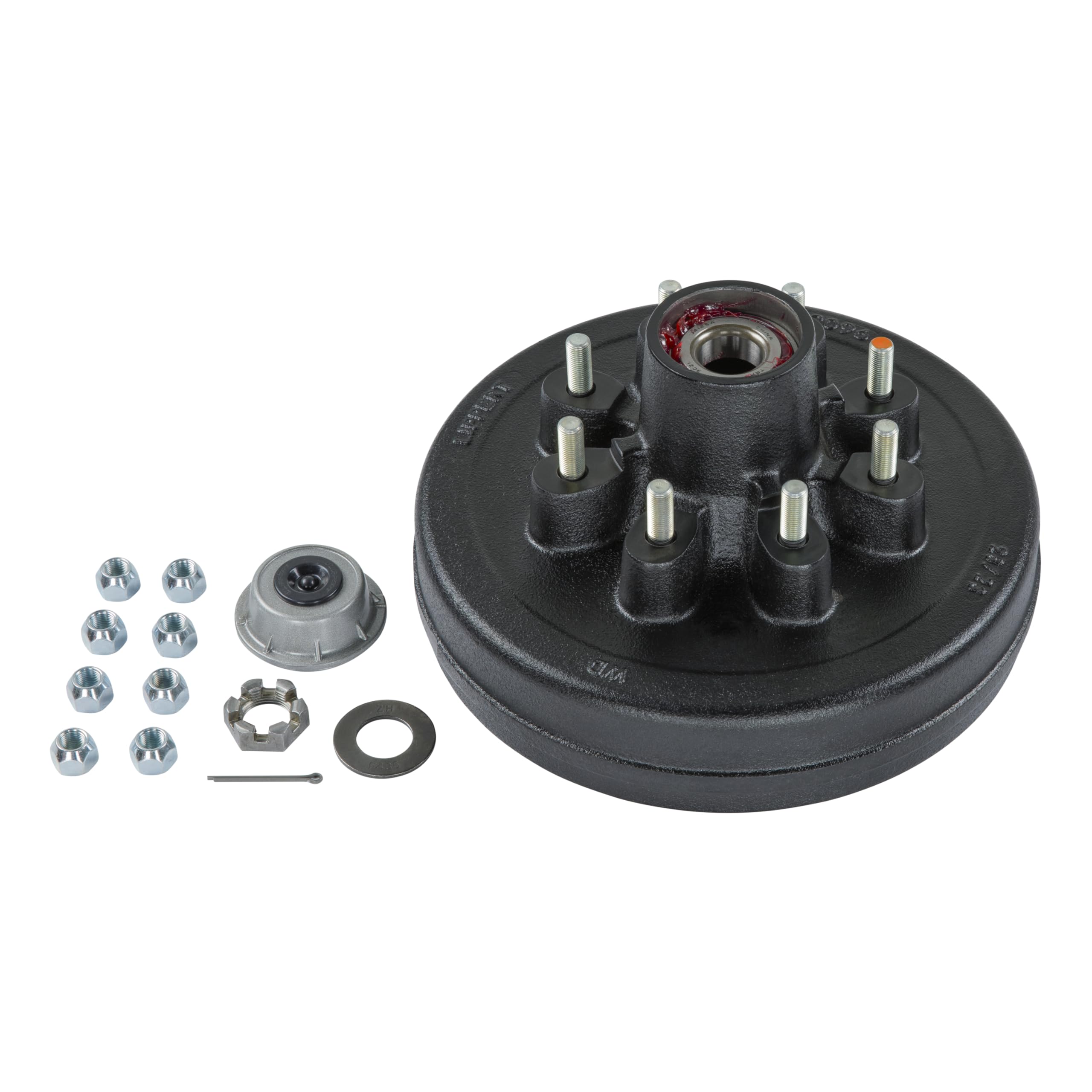

Lippert Components 2024013260 Complete Brake Hub Assembly Kit for 7,000 lb Axle 8x6.5 Bolt Pattern

The Lippert Components 2024013260 is a complete pre-greased hub and drum assembly designed for 7,000-pound axles with electric brakes. This all-in-one kit includes everything needed for hub replacement or new installation, eliminating the need to source individual components separately.

Key Specifications:

• Fits Lippert 7,000-lb capacity axles with electric brake systems
• 8 x 6.5-inch bolt circle with 1/2-inch wheel studs
• 12-inch diameter cast iron brake drum for reliable stopping power
• Pre-greased hub assembly ready for installation
• Includes protective dust cap with rubber plug

Complete Hardware Kit Includes:

• Hub and drum assembly (pre-greased)
• 1.75-inch cotter pin for spindle retention
• 1-inch 6-slot castle spindle nut
• 1.06-inch ID round spindle washer
• Eight 60-degree cone trailer lug nuts
• Dust cap with plug

This heavy-duty brake hub assembly is engineered specifically for trailer and RV applications requiring the 8-lug, 6.5-inch bolt pattern. The cast iron construction provides excellent heat dissipation during braking, while the pre-greased design saves installation time. Ideal for replacement of worn hubs or upgrading existing axle systems on travel trailers, utility trailers, and recreational vehicles.
