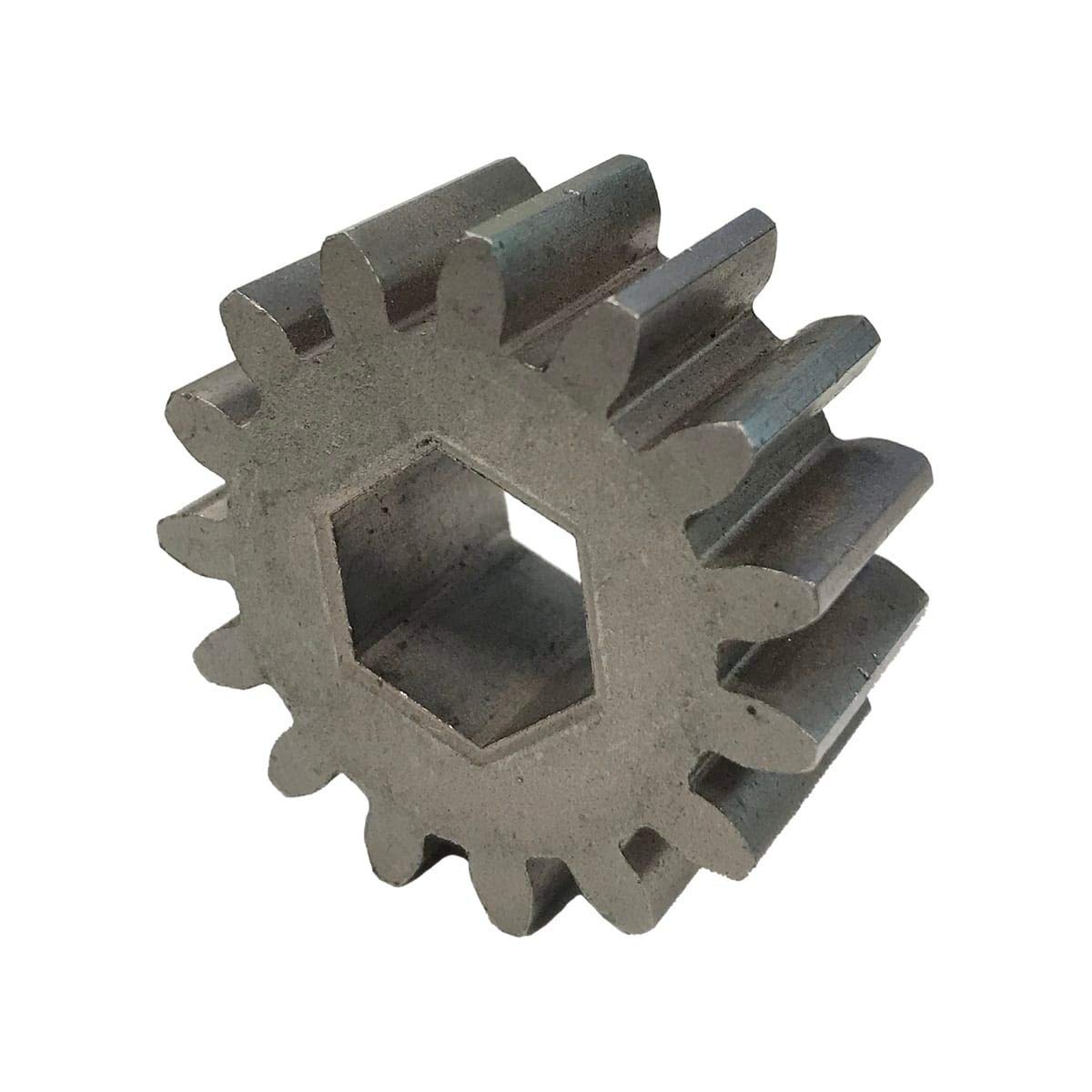

Lippert Components 700612 15 Tooth Spur Gear - 10 DP/20 PA Copper Infiltrated

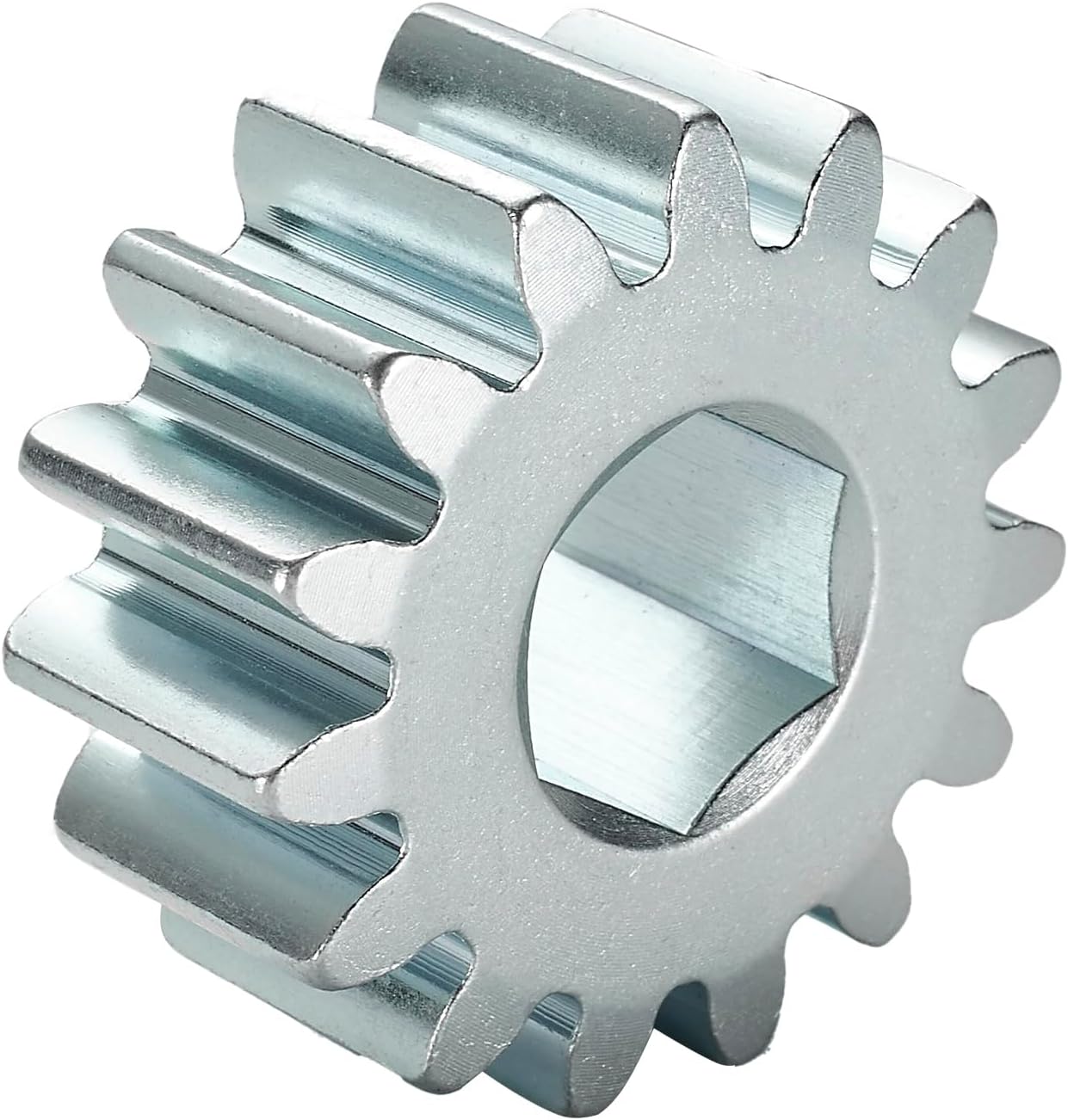

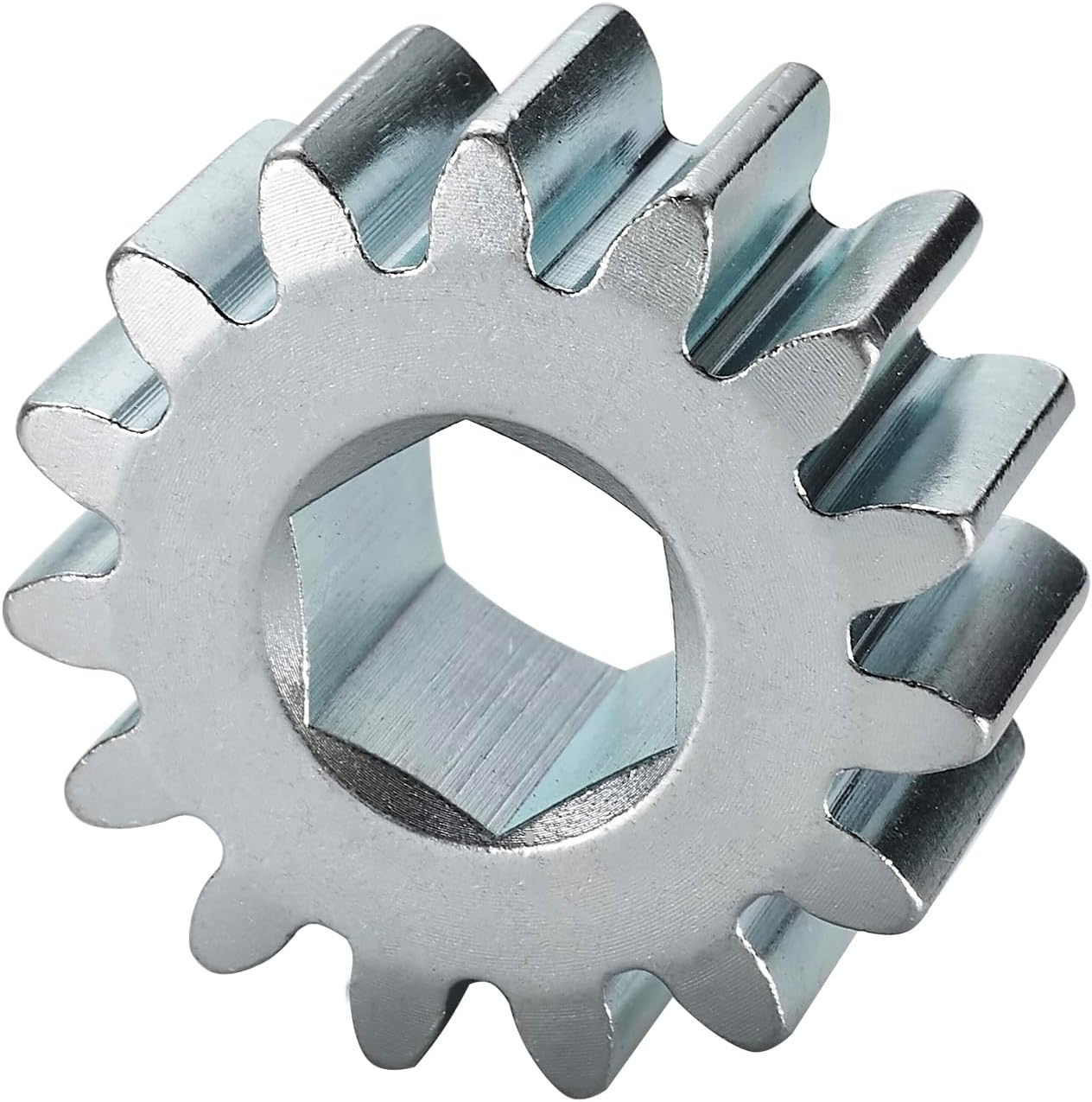

The Lippert Components 700612 is a precision-engineered 15-tooth spur gear designed as a direct replacement component for Lippert hydraulic and electric slide-out systems. This gear features a 0.625-inch hex bore and 0.750-inch face width, manufactured with copper-infiltrated steel for enhanced durability and wear resistance.

Key Specifications:

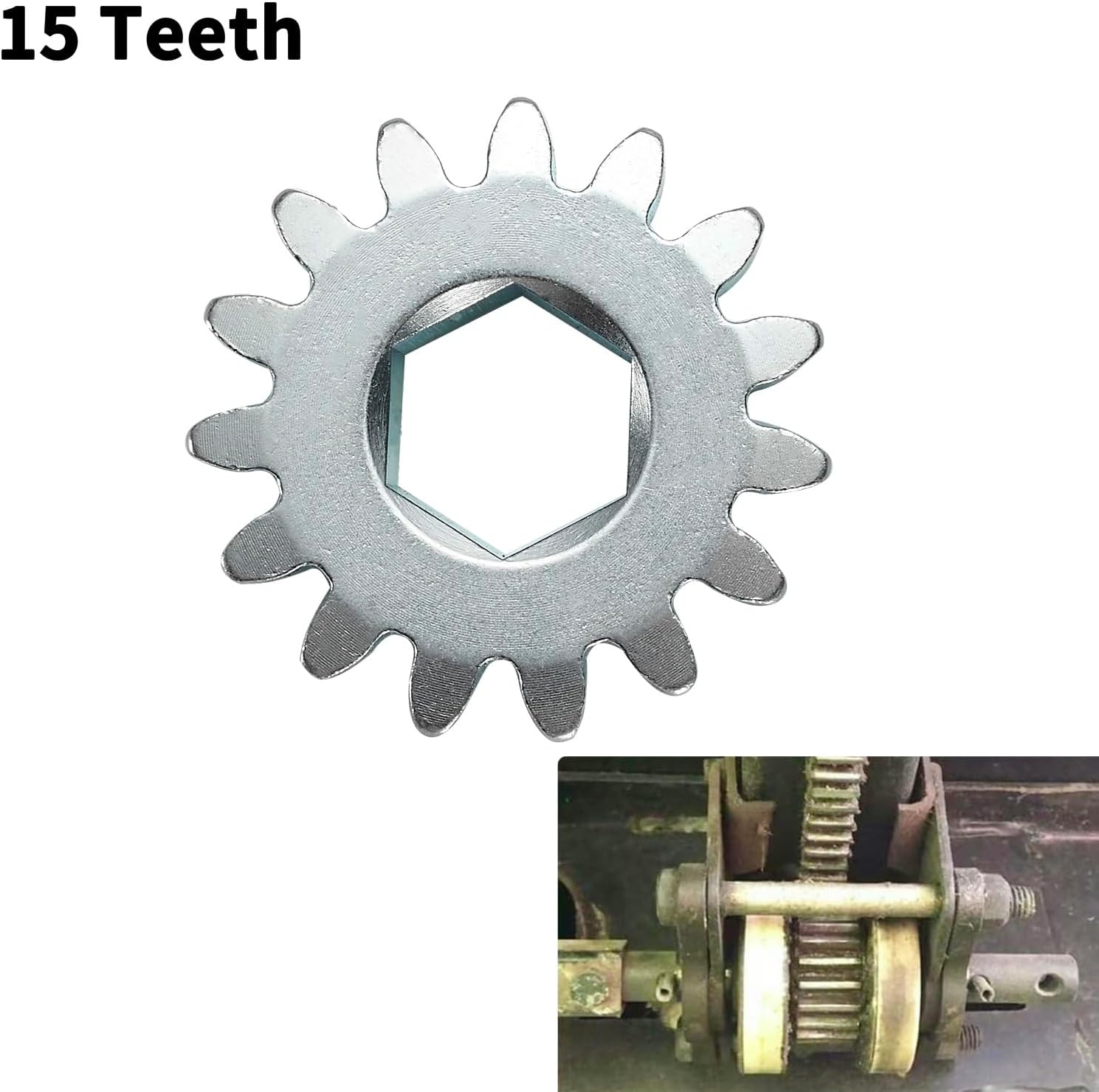

• 15 teeth spur gear configuration
• 10 Diametral Pitch (DP) for precise tooth sizing
• 20-degree Pressure Angle (PA) for optimal load distribution

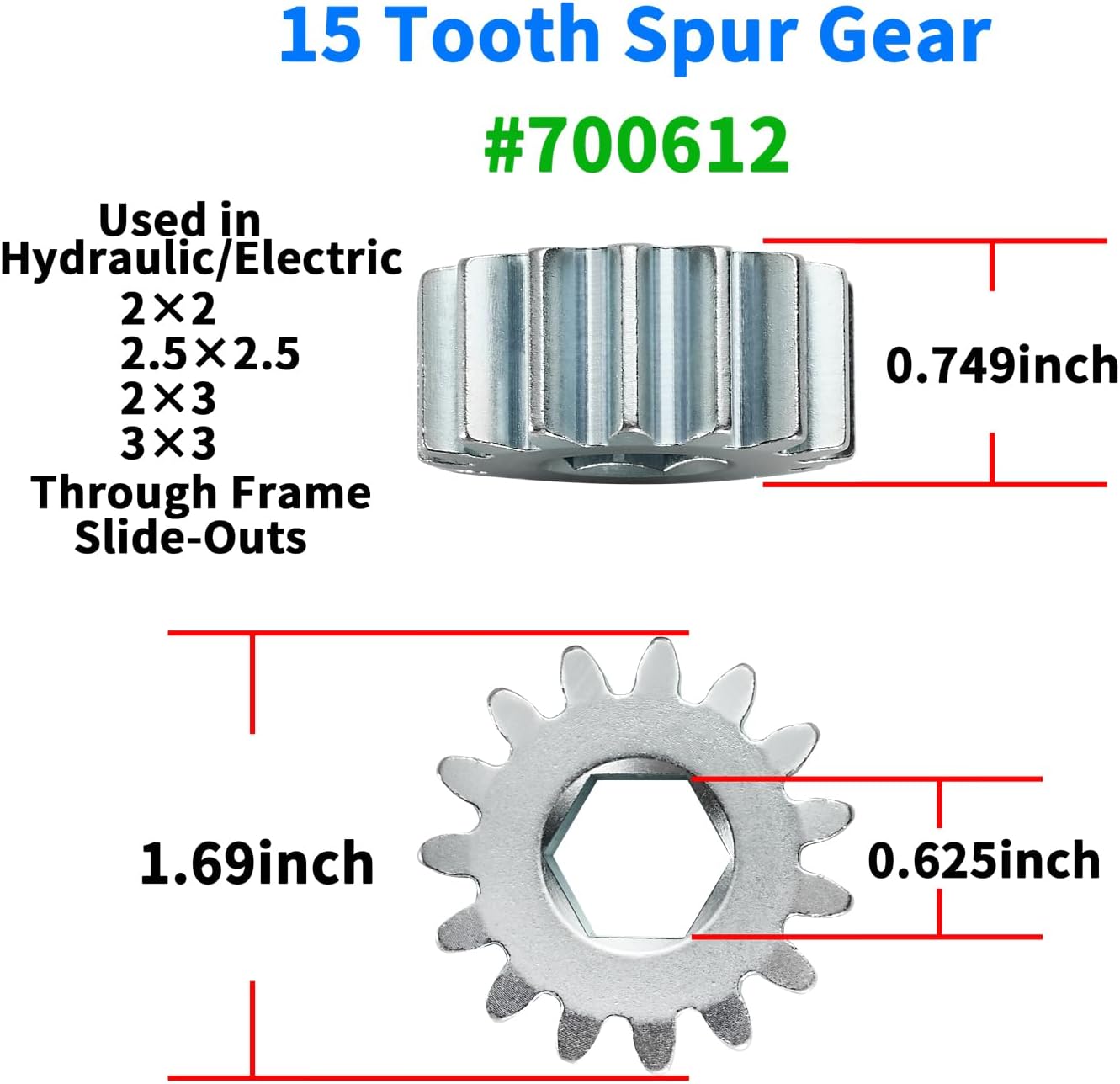

• 0.625-inch hex bore for secure shaft mounting
• 0.750-inch face width
• Copper-infiltrated construction for improved strength and lubricity

Application:

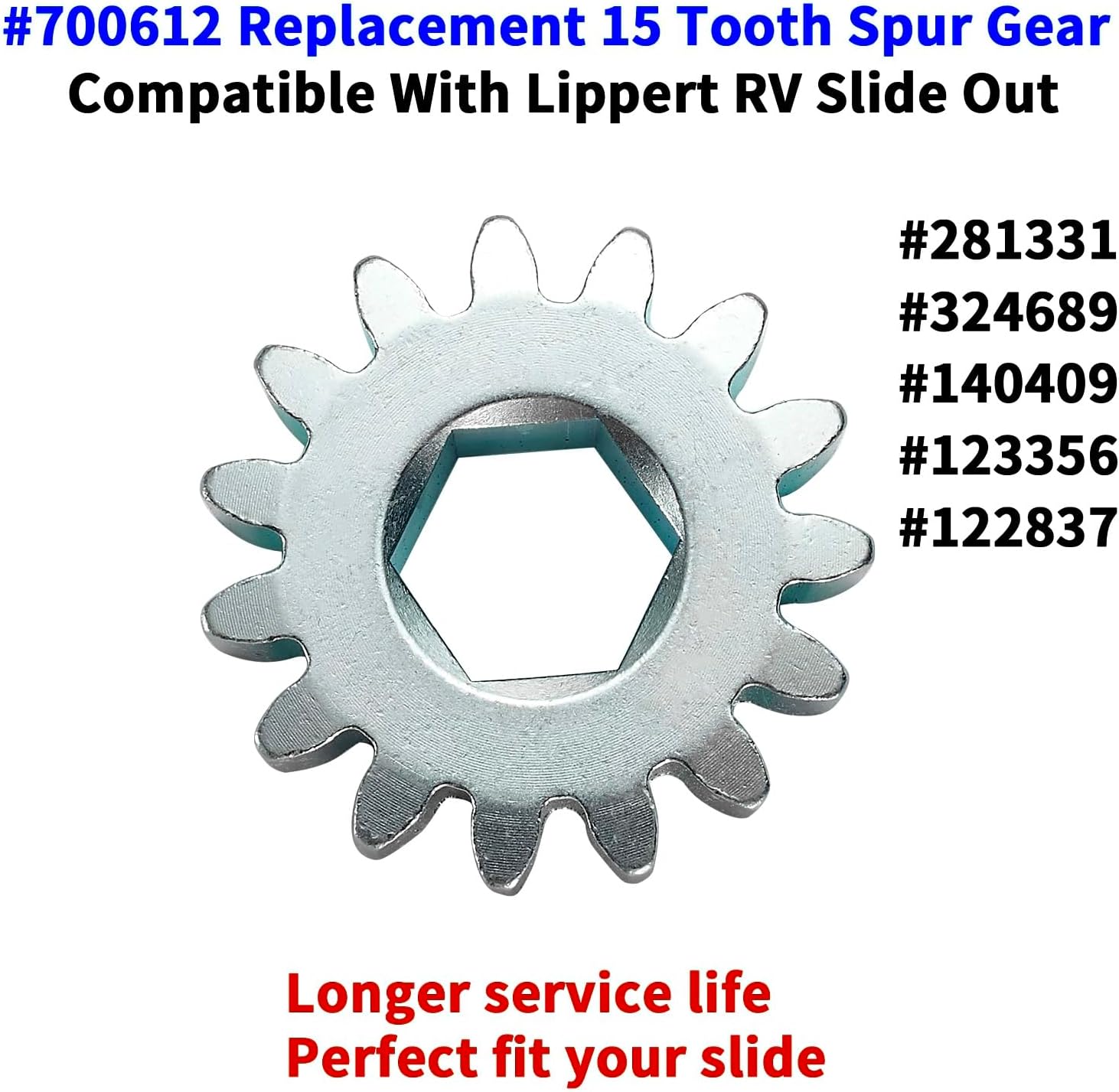

This replacement gear is compatible with Lippert hydraulic and electric through-frame slide-out systems, including 2x2, 2.5x2.5, 2x3, and 3x3 configurations. The copper infiltration process enhances the gear's load-carrying capacity and extends service life in demanding RV slide-out applications.

Ideal for service technicians and RV owners performing maintenance or repair on Lippert slide-out mechanisms, this gear ensures reliable operation and smooth slide-out movement.
