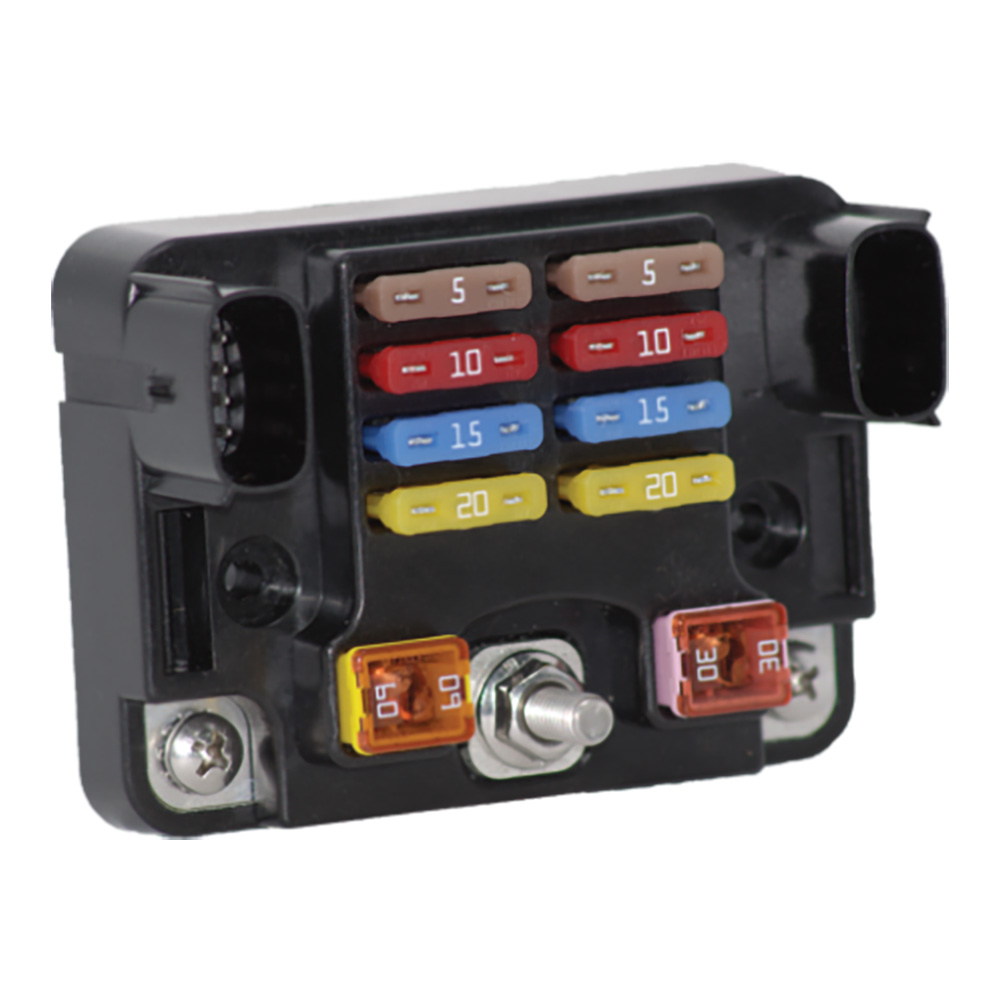

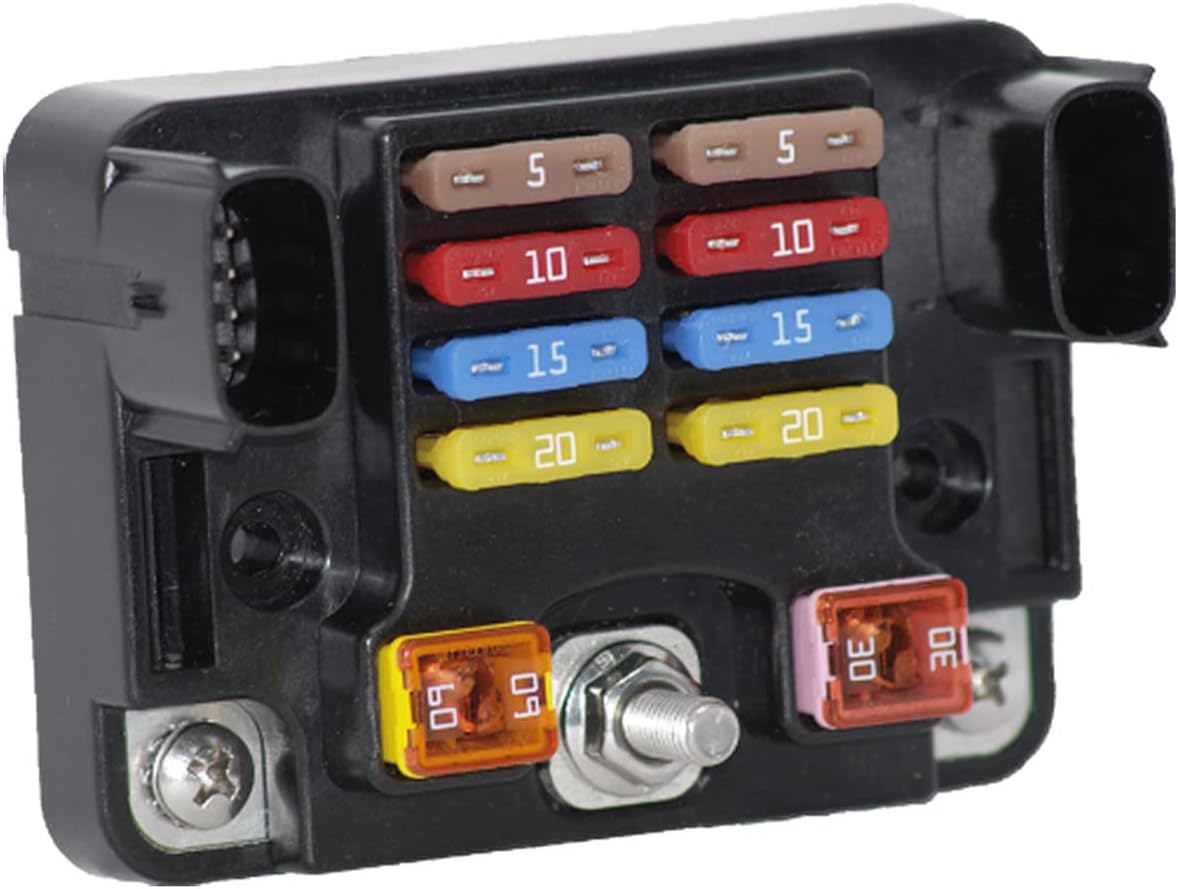

Egis Mobile Electric 5015 8+2 Fuse Block Distribution Panel

The Egis Mobile Electric 5015 is a compact fuse block that combines low-amp and high-amp circuit protection in a single integrated unit. This dual-capability design reduces installation space requirements and simplifies electrical system builds for automotive, marine, RV, and powersports applications.

Key Features:

• Eight (8) standard ATO fuse positions for low-amp circuits up to 22A each
• Two (2) LP J-Case fuse positions for high-amp circuits from 20A to 50A
• Two MX-150 four-position connectors for convenient low-amp outputs
• Protects add-on circuits from short circuits, ground faults, and overload events
• Total continuous current capacity of 200 amps
• Wide voltage range compatibility: 8-36V DC
• 4-year manufacturer warranty

Technical Specifications:

• Total Continuous Current: 200A
• Max Current Per ATO Fuse: 22A
• Max Current Per LP J-Case Fuse: 50A
• Max Current Per MX-150 Connector: 50A
• Maximum Wire Gauge (MX-150): 14 AWG
• Operating Voltage: 8-36V DC

This fuse block provides a complete circuit protection solution that eliminates the need for multiple separate fuse panels, reducing both installation time and overall system cost. Ideal for custom electrical builds requiring both standard and high-current circuit protection.
