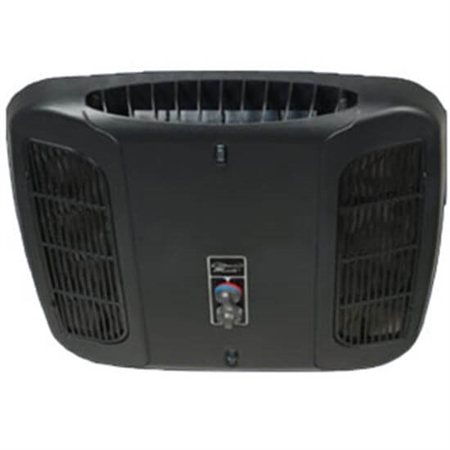

Coleman 9430A717 Deluxe Heat-Ready Non-Ducted RV Air Conditioner Ceiling Assembly - Black

The Coleman-Mach 9430A717 is a deluxe style non-ducted ceiling assembly designed specifically for Coleman-Mach RV air conditioners. This heat-ready assembly features a contemporary Euro-style design in black finish with a low-profile construction that provides a sleek appearance while covering existing ceiling imprints when upgrading from older ceiling assembly designs.

Key Features:

• Non-ducted design with front and rear airflow dampers that direct conditioned air forward and aft throughout the RV
• Heat-ready with built-in controls for optional electric heat strip installation (heat strip sold separately)
• Manual control knobs conveniently located on the horizontal surface for easy access
• Pop-out retainer grilles provide tool-free access to washable air filters for easy maintenance
• Low-profile construction at only 2 inches thick and weighs just over 6 pounds
• Includes mounting frame, mounting bolts, and duct collar for complete installation
• Designed with special contour to fit snugly against convex vehicle ceilings

Compatibility: Works with Coleman-Mach 48203C9665 Series Roughneck, 48204 Series Mach 15, 48203 Series Mach 3 Plus, 48207 Series Mach I, 48208 Series Mach III Power Saver, Mach 8 Rooftop, and Mach 8 CUB Rooftop air conditioners. Note: This unit will not work with heat pumps and requires a wall-mounted thermostat for operation.

OEM Cross-Reference: 06-0703, 9430-717
