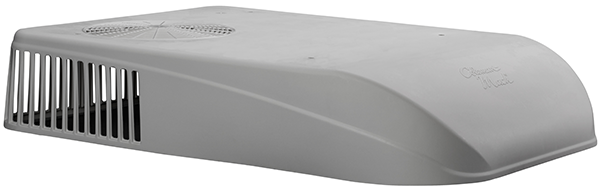

Coleman 37223-076 Mach 8 Plus 13,500 BTU RV Air Conditioner with Condensate Pump

The Coleman Mach 8 Plus 37223-076 is an ultra-low profile rooftop air conditioner designed specifically for RVs, trailers, and recreational vehicles. Delivering 13,500 BTU cooling capacity with 320 CFM airflow, this unit provides reliable climate control wherever your travels take you.

Key Features:

• Lowest profile in the industry at only 8 inches tall, reducing wind drag and improving fuel efficiency
• Industry-exclusive fiberglass basepan provides superior strength and durability while reducing weight
• Weighs only 90 pounds, making it the lightest low-profile unit available
• Dual motors deliver consistent BTU cooling on both high and low speeds, with ultra-quiet operation on low speed for nighttime cooling
• Integrated condensate pump removes moisture efficiently without manual drainage
• Fits standard 14 inch x 14 inch roof vent openings
• Compatible with both ducted and non-ducted installations
• Backward compatible with any Coleman Mach air conditioner for easy replacement

Technical Specifications:

• Cooling Capacity: 13,500 BTU nominal
• Voltage: 120 Volt AC, 60Hz, Single Phase
• Full-Load Cooling Current: 13.4 Amps
• Operating Wattage: 1,395W
• Compressor Running Current: 12.1 Amps
• Exterior Dimensions: 8.3"H x 28.4"W x 41.1"L
• Finish: Textured White
• Heat Pump: Not included
• Condensate Pump: Included

Features large evaporator and condenser coils with raised lance fins to optimize heat dissipation. This unit installs from the roof for easy access and is designed to operate reliably even in extreme desert conditions up to 125°F. Note that wall thermostat and ceiling assembly components must be ordered separately.
