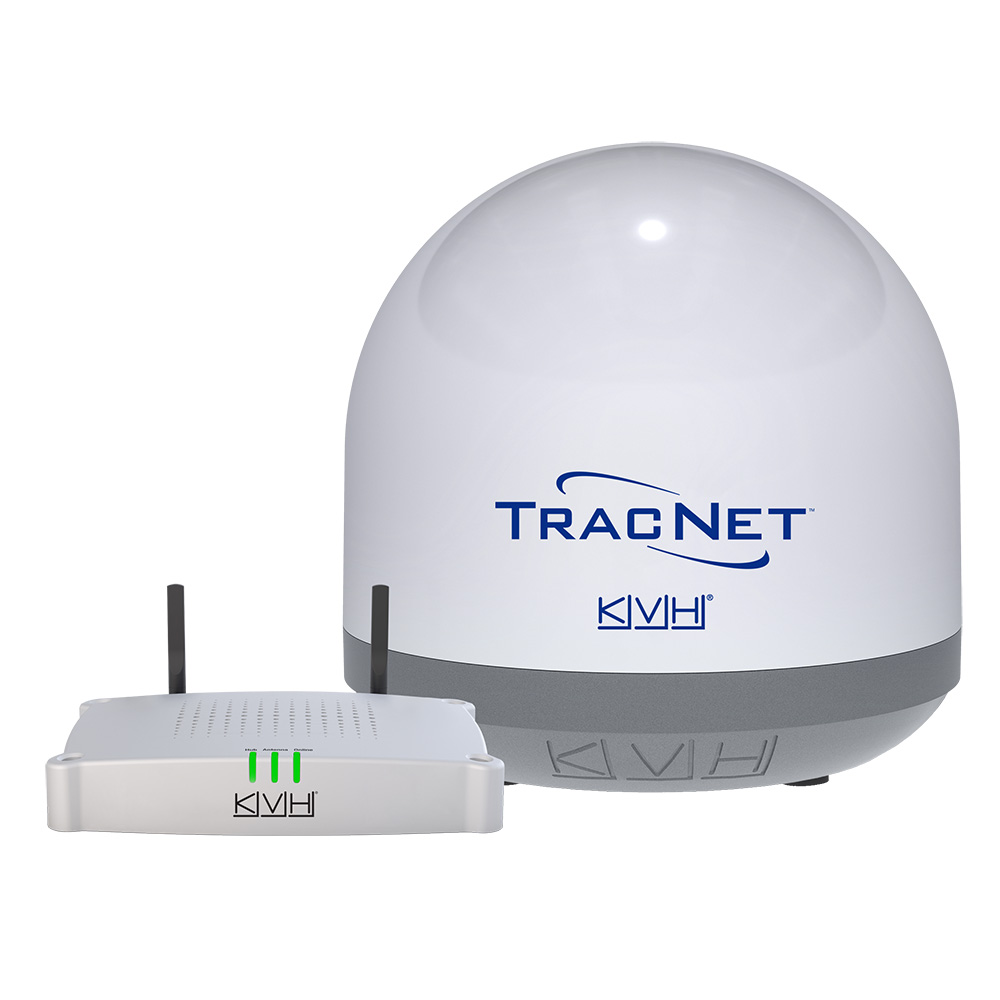

KVH 01-0465 TracNet Coastal Pro 5G/WiFi Marine Terminal with Hub

The KVH TracNet Coastal Pro 5G/WiFi Compact Terminal delivers high-speed marine connectivity through an integrated cellular and WiFi system designed for offshore and coastal applications. This marine-grade communication system combines 5G/LTE cellular technology with high-gain WiFi reception in a compact radome, providing data speeds up to 300+ Mbps for streaming, video conferencing, and internet access while underway or at dock.

Key Features:

• Compact marine-grade radome integrating 5G/LTE cellular and WAN WiFi capabilities
• High-gain 5G cellular antennas optimized for extended offshore coverage
• Intelligent hybrid switching automatically selects optimal connection among 5G, LTE, and WiFi sources
• TracNet Hub with single-cable installation and efficient DC power design (10-30V DC)
• WiFi 5 access point supporting dual-simultaneous WAN and LAN connectivity
• 4-port Ethernet router with configurable WAN/backup WAN ports
• Remote SIM technology supporting up to two user-supplied SIM cards with convenient belowdeck access
• Compatible with KVH ONE network and Fusion eSIM technology for connectivity in 135 countries
• Hybrid hub functionality supports integration with up to two additional third-party systems (Starlink, VSAT, OneWeb)
• Compatible with CommBox Edge Communications Gateway for advanced network management and bonding

Technical Specifications:

• Dome Dimensions: 13.5" diameter x 13.1" height
• Dome Weight: 8 lbs
• Power Consumption: 16W nominal, 22W maximum
• Power Input: 10-30V DC (AC power supply available separately)
• Dome Operating Temperature: -25°C to +55°C (-13°F to +131°F)
• Dome Survival Temperature: -30°C to +70°C (-22°F to +158°F)
• BDU Operating Temperature: -15°C to +55°C (+5°F to +131°F)
• BDU Survival Temperature: -25°C to +70°C (-13°F to +158°F)
• Supports 4 WAN connections: Cellular/WAN WiFi/Starlink/Backup WAN

This system is ideal for recreational and commercial vessels requiring reliable, high-speed connectivity for business operations, entertainment streaming, and communication while maintaining the flexibility to integrate with existing satellite and terrestrial communication systems.
