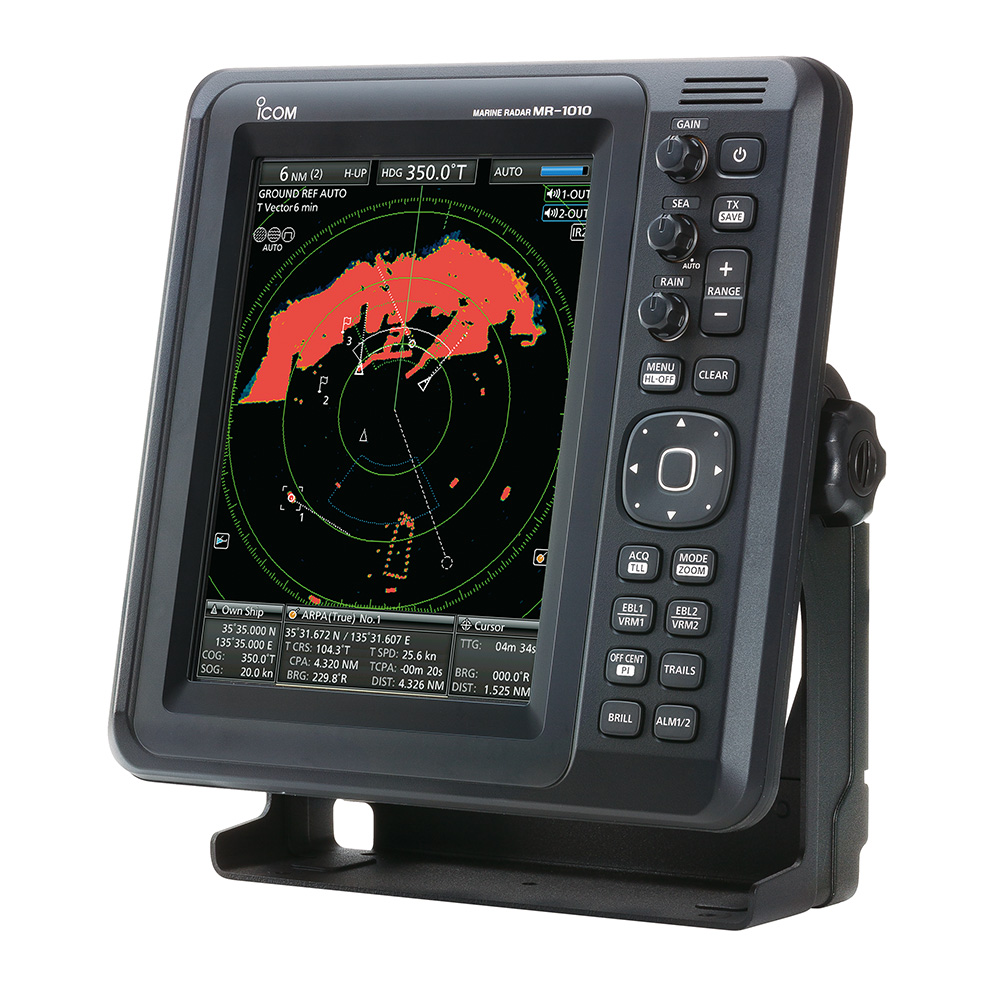

Icom MR1010R2 23 4kW Marine Radar 10.4" Color LCD Display

The Icom MR-1010RII is a professional-grade 4kW marine radar system featuring a 10.4-inch color TFT LCD display with wide viewing angles and 16-step gradient intensity. Designed and manufactured in Japan, this radar provides reliable target detection from 25 meters to 36 nautical miles with exceptional clarity and precision.

Advanced Navigation and Safety Features:

• Simplified ARPA (Automatic Radar Plotting Aids) tracks up to 10 targets with position, course, speed, CPA, and TCPA data with collision alarm warnings
• AIS overlay capability displays up to 100 AIS targets with vessel identification, MMSI, name, and navigation details
• DSC information function plots up to 20 DSC messages including MOB waypoints for search and rescue operations
• True trail function displays moving objects while canceling ship movement to identify static versus dynamic targets
• TLL (Target Latitude Longitude) function marks points and transfers position data to external plotters via NMEA sentences
• Two programmable alarm zones with customizable watch areas

Display and User Interface:

• 10.4-inch color TFT LCD with 640 × 480 resolution and wide viewing angle for clear visibility in all lighting conditions
• Instant screen intensity adjustment and selectable day/night/user color modes via dedicated BRILL button
• Auto-hide information function expands radar echoes to full screen size
• Multi-language support including English, Spanish, French, Portuguese, Italian, Arabic, Turkish, Korean, Indonesian, Thai, and Vietnamese
• Large eight-direction cursor key for easy operation even when wearing gloves

Technical Specifications:

• Minimum detection range: 25 meters (82 feet) at 1/8 NM scale
• Maximum range: 36 nautical miles (48 km)
• 16 range scales in NM or km from 1/8 NM to 36 NM
• 90-second preheat time for rapid deployment
• Wide 10.2-42V DC input with over-voltage protection
• Power consumption: approximately 55 watts at zero wind velocity
• Operating temperature: -15°C to +55°C (+5°F to +131°F)
• NMEA 0183, N+1, AUX, and IEC61162-2 input compatibility
• NMEA 0183 output format for integration with chartplotters and navigation systems

Connectivity and Expansion:

• Compatible with Icom DSC marine radios including IC-M605, IC-M510, IC-M506, and IC-M94D handheld
• External AIS device integration for comprehensive vessel traffic awareness
• Optional UX-252 video output unit enables simultaneous display on external monitors
• Waypoint indication when connected to external GPS/chartplotter

The MR-1010RII requires external heading, speed, and position data for full ARPA, AIS overlay, true trail, and DSC functions. This marine radar is ideal for commercial vessels, fishing boats, and recreational craft requiring professional-grade target detection and collision avoidance capabilities.
