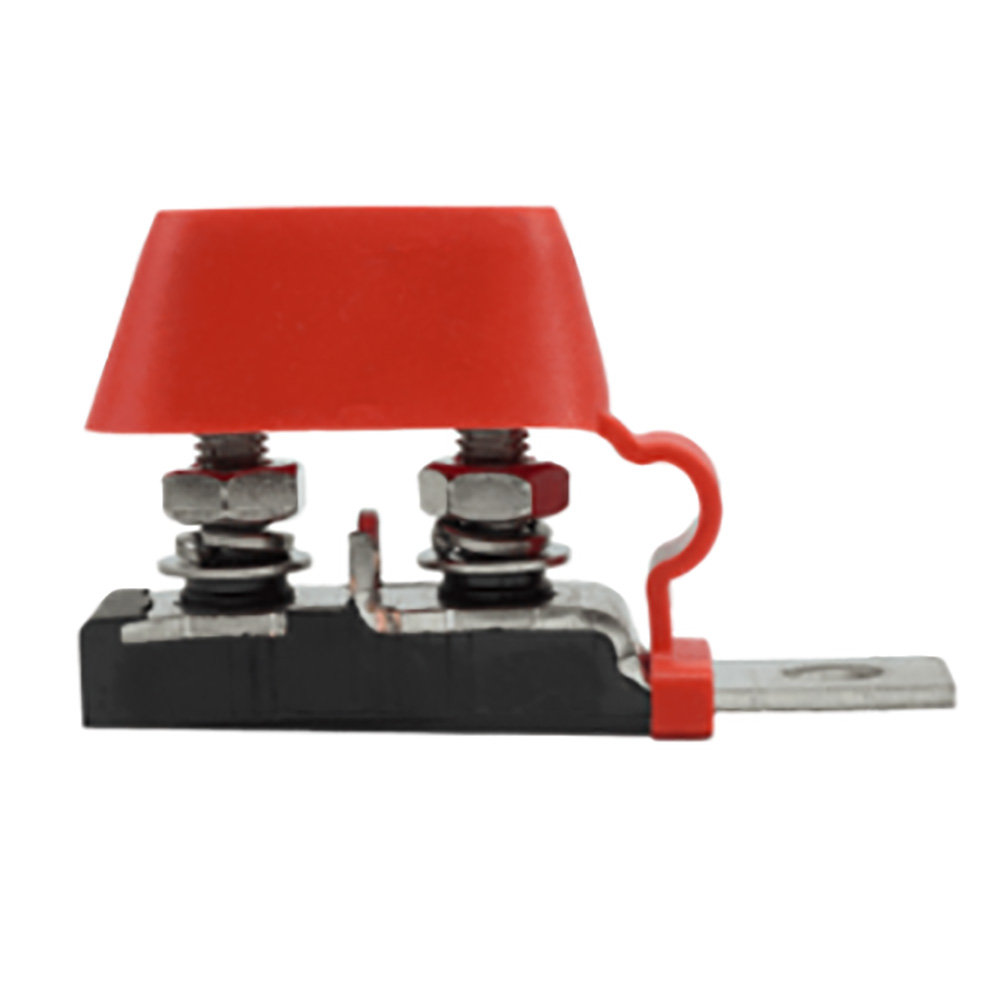

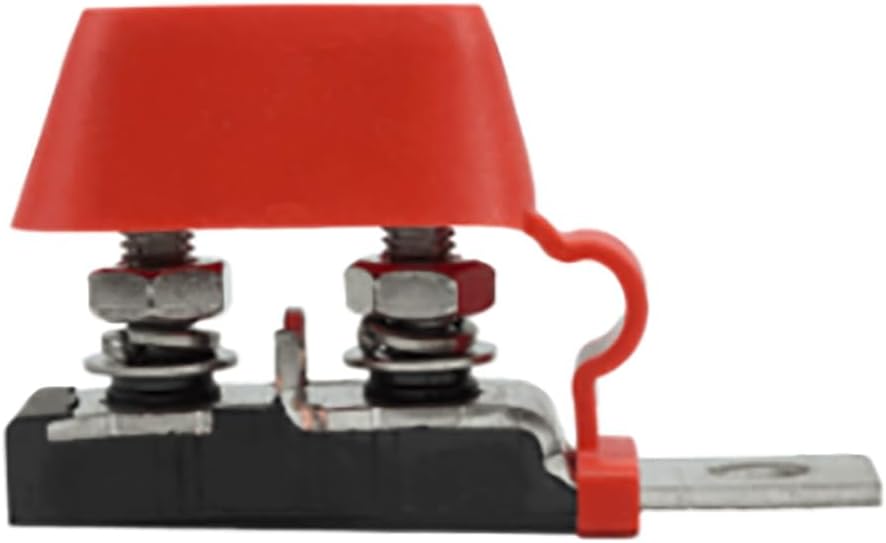

Egis Mobile Electric 3602 MRBF Dual Output Terminal Block 30-300A

The Egis Mobile Electric 3602 is a heavy-duty MRBF dual output terminal block designed to protect electrical circuits from short circuit events and over-current loads in harsh marine and vehicle environments. This terminal block prevents wire insulation overheating and subsequent electrical system damage while providing reliable circuit protection for 30-300 amp applications.

Key Features:

• Dual output design supports multiple circuit protection in a compact footprint
• Ignition protected when used with Egis Mobile Electric MRBF fuses—safe for installation in closed compartments with potentially explosive gases
• IP66 rated sealed construction protects against dust and water intrusion for reliable long-term performance
• Shock and vibration resistant design ideal for harsh marine and vehicle electrical systems
• Wide voltage range supports 12V to 48V nominal applications (58 Vdc rating)
• High interrupt ratings: 5,000A @ 48 Vdc, 2,000A @ 58 Vdc
• Backed by 4-year manufacturer warranty

Specifications:

• Continuous Current Rating: 30-300 Amps
• Voltage Rating: 58 Vdc
• Stud Size: M8 (5/16")
• Mounting Hole Size: M10 (3/8")
• Interrupt Rating @ 48 Vdc: 5,000 Amps
• Interrupt Rating @ 58 Vdc: 2,000 Amps
• Ingress Protection: IP66

This terminal block is engineered for demanding applications where reliable circuit protection is critical, including marine vessels, RVs, commercial vehicles, and off-road equipment.
