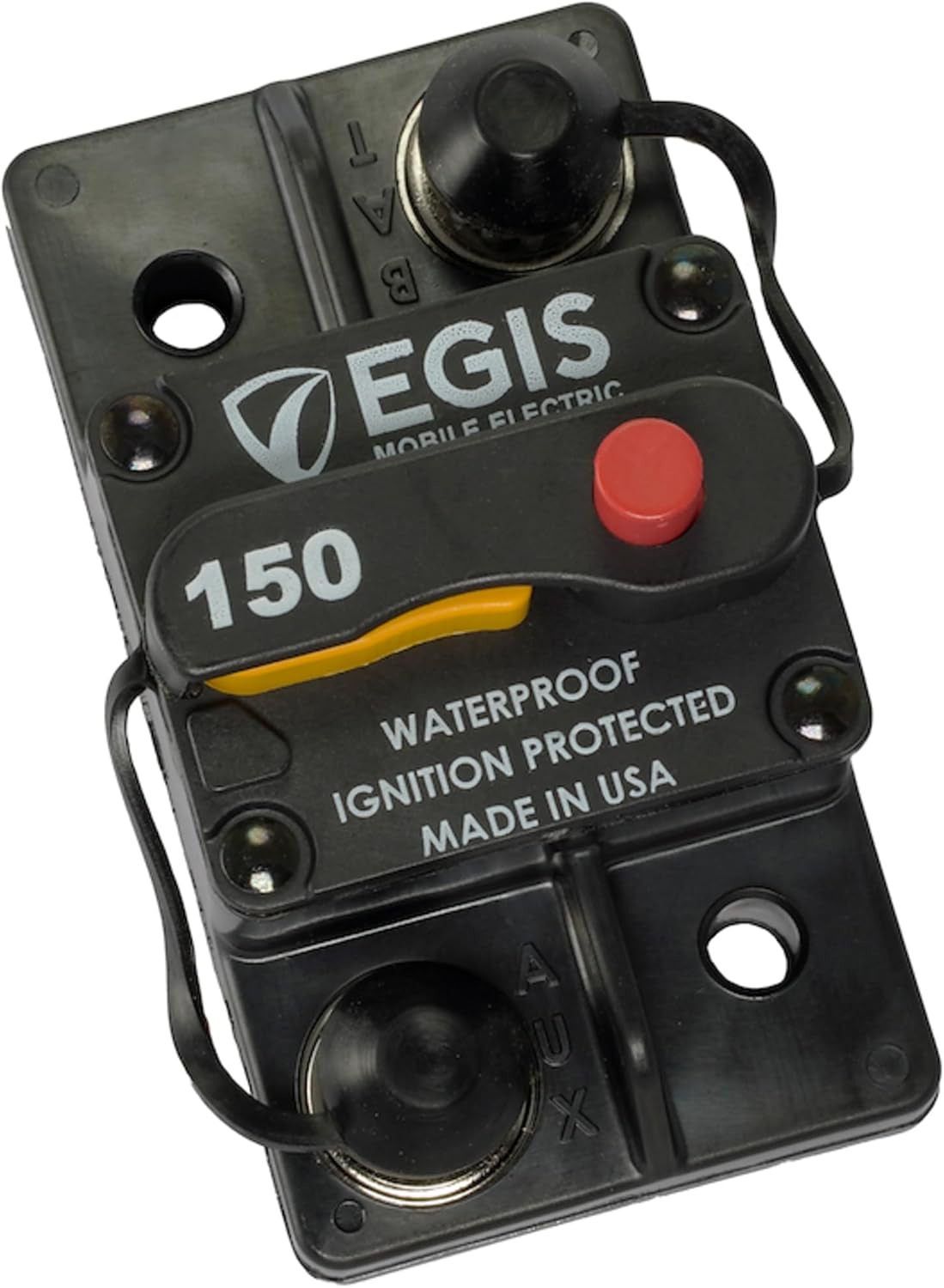

Egis Mobile Electric 4703-150 150A Surface Mount Circuit Breaker 285 Series 48V

The Egis Mobile Electric 150A Surface Mount Circuit Breaker (285 Series) provides robust electrical circuit protection against short-circuit events and over-current loads, preventing wire insulation damage and system failure. This compact, dual-function device combines automatic circuit protection with manual on/off switching capability, making it ideal for marine, RV, and mobile power applications.

Key Features:

• IP67 Sealed Protection: Fully sealed against dust and water intrusion for reliable operation in harsh marine and outdoor environments
• High Voltage Rating: 48 VDC maximum voltage supports 12V, 24V, 36V, and 48V DC applications
• High Interrupt Capacity: 5,000A at 16 VDC and 3,000A at 28 VDC safely protects circuits connected to large battery banks
• Extended Switching Endurance: Rated for 6,000 cycles at full 150A current load
• Integrated Terminal Insulators: Protects against inadvertent shorts from positive terminals to grounded surfaces
• Corrosion-Resistant Hardware: Stainless steel hardware with serrated flange nuts provides vibration resistance
• High-Visibility Controls: Easy-to-operate ON/OFF switch with high-temperature rating

Technical Specifications:

• Continuous Current Rating: 150A
• Maximum Voltage: 48 VDC
• Interrupt Current: 5,000A @ 16 VDC / 3,000A @ 28 VDC
• Ingress Protection: IP67
• Cycling Endurance: 100 cycles minimum
• Mounting: Surface mount design

This circuit breaker allows for convenient circuit isolation and maintenance of load circuits, with integral protection that can be mounted adjacent to battery systems regardless of location. Proudly manufactured in the USA with high-quality components and backed by a 4-year warranty.
