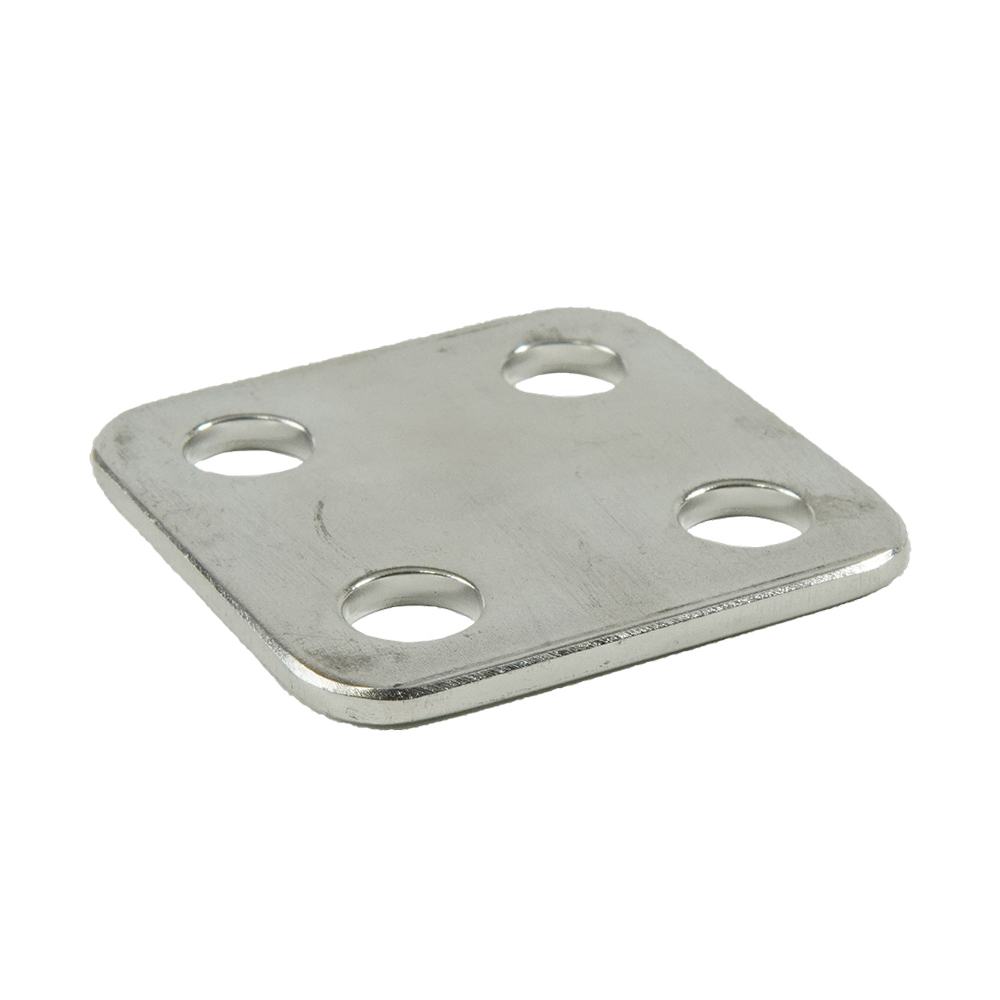

Egis Mobile Electric 8794 Quad Busbar Connector 4 Hole M8/M10

The Egis Mobile Electric 8794 is a professional-grade quad-shaped busbar connector designed for linking multiple electrical components in mobile and marine power distribution systems. This versatile connector enables you to link together XD Single, Dual, and Triple XD Relays to multiple sealed fuse blocks, or connect fuse blocks together for a compact, organized installation.

Key Features:

• Quad-shaped design with 4 mounting holes for versatile connection options
• Tin-plated copper construction ensures superior conductivity and corrosion resistance
• High current capacity rated for 500 amps continuous
• Compatible with M8 and M10 terminal studs for flexible installation
• Compact 90mm x 90mm footprint for space-efficient mounting
• Heavy-duty 2.8mm (1/8") thickness for reliable performance

Specifications:

• Continuous Current Rating: 500 Amps
• Maximum Voltage: 72 VDC
• Material: Tin-Plated Copper
• Dimensions: 90mm x 90mm
• Thickness: 2.8mm (1/8")
• Terminal Stud Hole Size: 10.5mm (3/8")
• Compatible Stud Sizes: M8/M10

Ideal for RV, marine, and mobile applications where reliable high-current distribution and long-term durability are essential. The tin-plated finish provides excellent protection against the corrosive environments common in mobile and marine installations.
