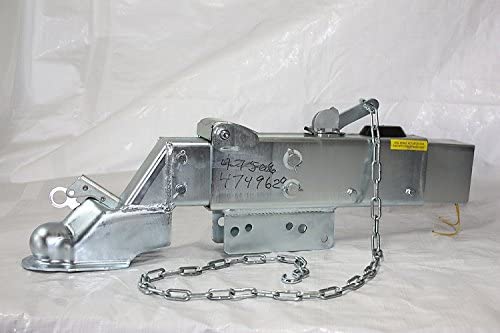

Dexter Marine Products 068-506-20 Model 10 Hydraulic Disc Brake Actuator 12,500 lbs

The Dexter Marine Products Model 10 Hydraulic Surge Brake Actuator (part number 068-506-20) is a premium bolt-on disc brake actuator designed for boat trailers and marine applications requiring reliable hydraulic braking. This actuator features a zinc-plated finish that provides excellent corrosion resistance in harsh marine environments, making it ideal for saltwater and freshwater use.

Key Features:

• Rated capacity of 12,500 lbs GVWR with 800-1,250 lbs maximum tongue weight
• Bolt-on design with drop-down front that mounts over 3-inch wide trailer tongue
• Multiple mounting holes positioned at 3-inch and 5-inch centers front to back for versatile installation
• Zinc-plated construction for superior corrosion resistance
• Fits 2-5/16 inch ball coupler
• Includes electric reverse solenoid that prevents brake activation during backup
• Comes with extended housing cover for extra protection of solenoid and brake line

This hydraulic surge brake actuator uses the natural momentum of the trailer during deceleration to activate the braking system, providing smooth and proportional braking power. The integrated reverse solenoid allows for easy backing up without engaging the brakes. Compatible with disc brake systems on marine trailers up to 12,500 lbs gross vehicle weight rating. Also known as Titan part number 4750620.
