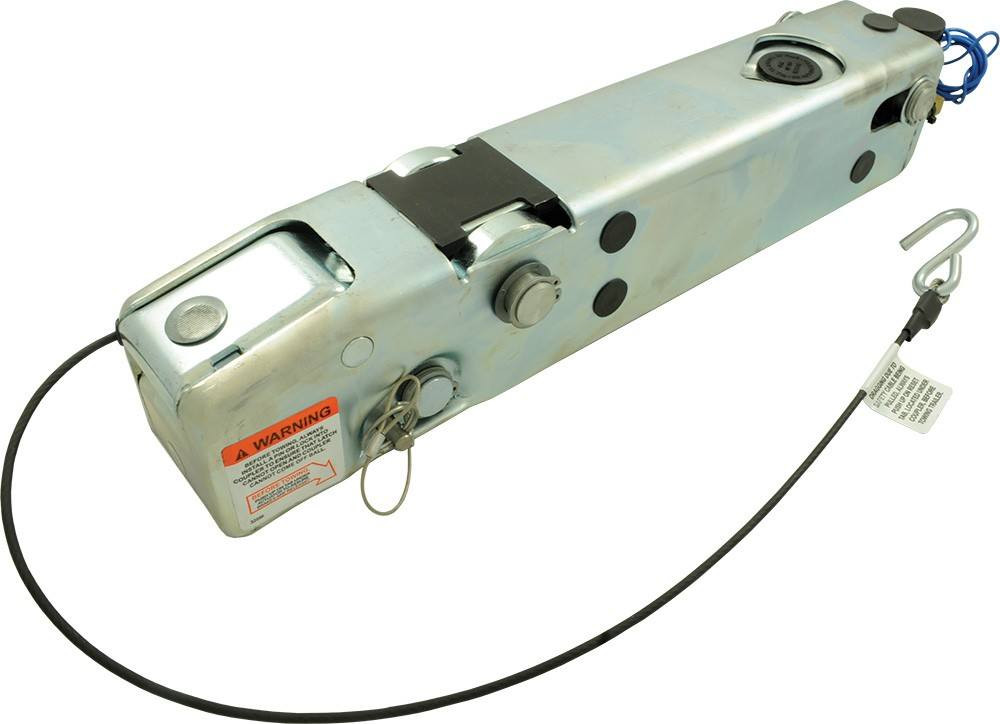

Dexter Marine Products 099-060-10 DX7.5L A-60 Surge Brake Actuator Inner Member Single Axle Disc Brake

The Dexter 099-060-10 is a UFP A-60 series replacement inner member slide designed for single axle hydraulic disc brake systems. This surge brake actuator operates by the "surge" or "push" of the trailer toward the tow vehicle, telescoping together to apply force to the master cylinder and supply hydraulic pressure to the brakes.

Key Features:

• 7,500 lb capacity for single axle applications
• Fits 2" hitch balls
• Aluminum master cylinder with zinc plated finish
• Includes integrated reverse solenoid valve
• Features plated internal parts for enhanced corrosion resistance
• Sealed aluminum master cylinder with rubber boot on push rod
• Compatible with UFP actuator outer housing assemblies regardless of bolt-on or weld-on configurations

This actuator arrives complete and ready to install, with easy bleeding capability through pressure bleeding or manual stroking of the master cylinder push rod. The surge action automatically synchronizes the trailer brakes with the tow vehicle's braking system, providing reliable hydraulic braking performance for marine and boat trailer applications.
