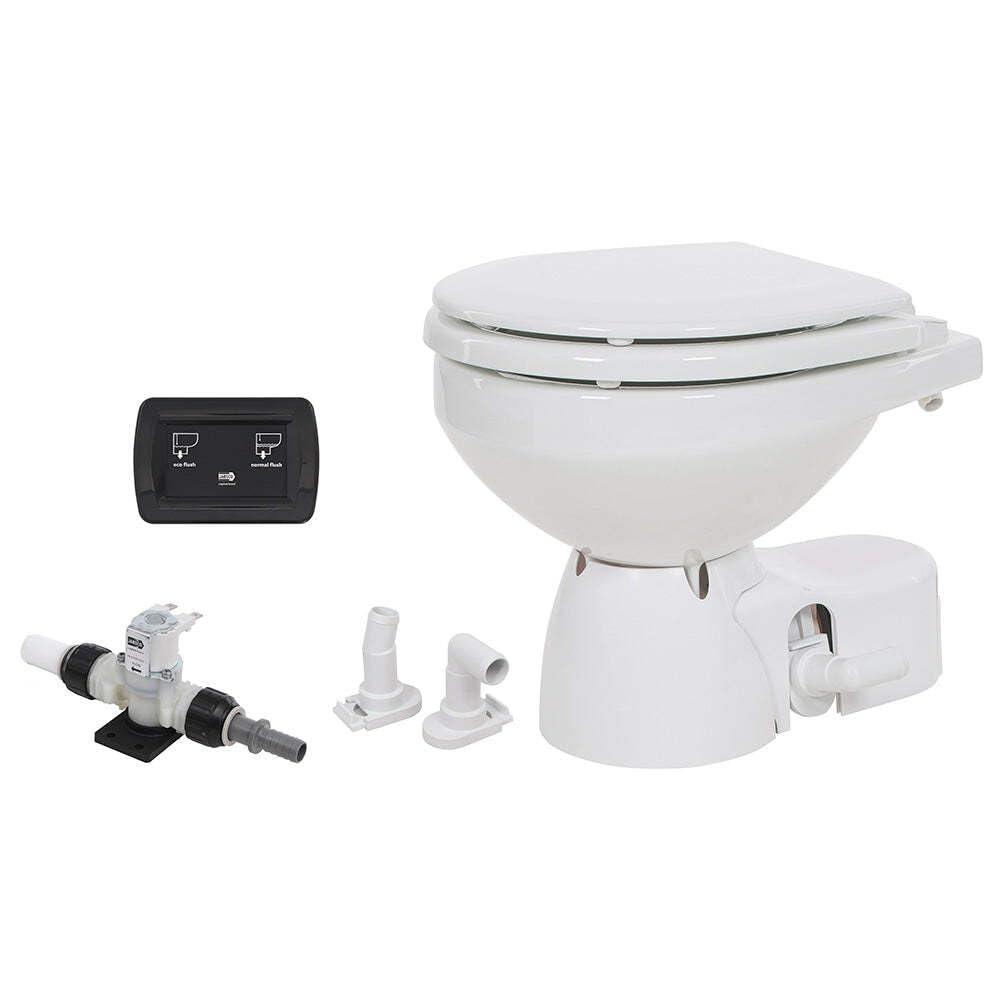

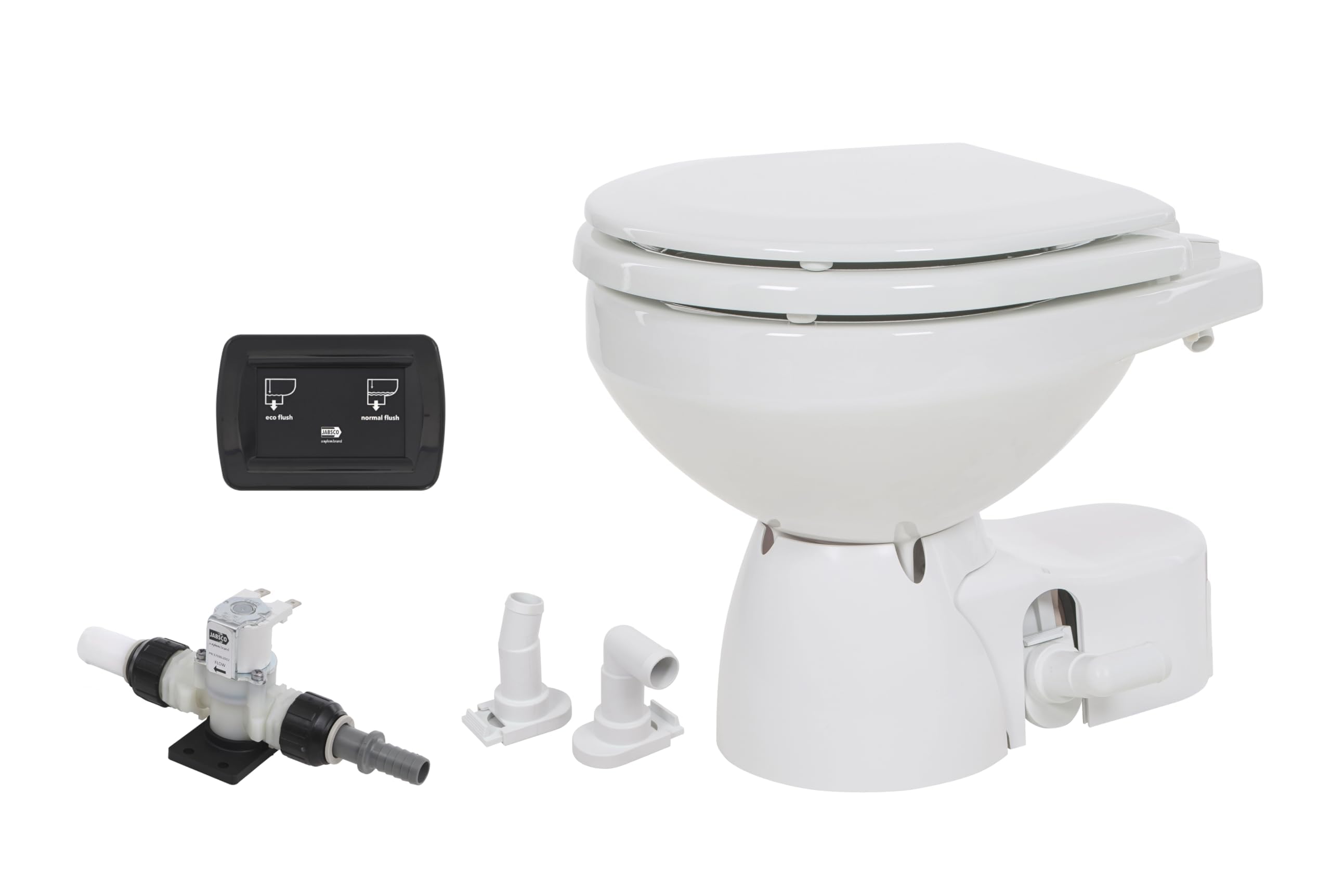

Jabsco 38045-3092RSP Quiet Flush E2 Marine Toilet Fresh Water Compact 12V

The Jabsco Quiet Flush E2 marine toilet combines innovative design with practical functionality for recreational and commercial marine applications. This compact bowl model features a fresh water system with solenoid valve control and operates on 12V DC power, making it an ideal solution for boats with limited space and onboard fresh water systems.

Installation Flexibility:

• Rotating base allows pump discharge positioning to the left, right, or rear for installation in tight spaces
• Discharge pump rotates 180 degrees to accommodate base orientation
• Choice of straight or 90-degree discharge port for simplified plumbing
• No specialized tools required for basic installation

Quick-Release Service System:

• Tool-free C-clip design provides rapid access to macerator pump and discharge components
• Quick-release mechanism allows pump assembly removal from base in seconds
• Designed for durability in commercial environments while remaining serviceable by recreational boaters

Touch Sensor Control Panel:

• Low-profile touch-sensitive panel with three operating modes
• Eco flush mode uses only 1 liter per flush for water conservation
• Full flush option for complete waste evacuation
• Empty function drains bowl completely to prevent spills during transit
• Suitable for wet room installations

Technical Specifications:

• Bowl configuration: Compact size
• Water source: Onboard fresh water with solenoid valve
• Power requirement: 12V DC with 25 amp recommended fuse
• Seat and lid: Wood construction
• Dimensions: 14 inches H x 13.9 inches W x 16.3 inches D
• Unit weight: 34.2 lbs

The Quiet Flush E2 brings residential-level comfort to marine environments with its efficient water usage, quiet operation, and user-friendly controls. The compact bowl design maximizes usable space while the rotating base and pump configuration ensure compatibility with various boat layouts and plumbing arrangements.
