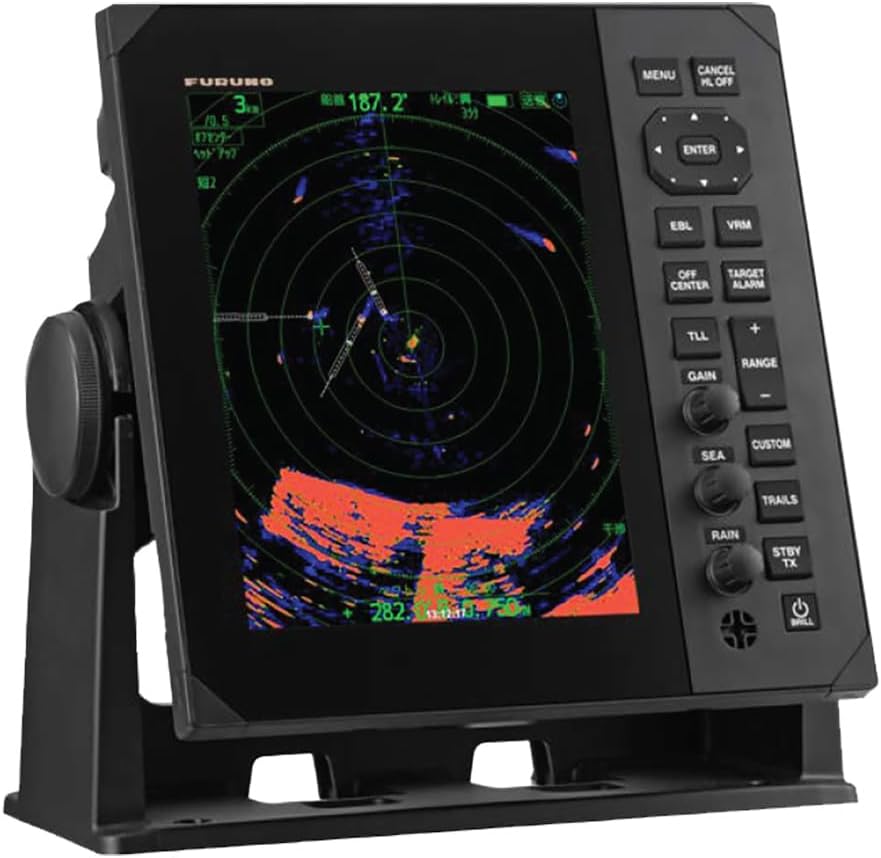

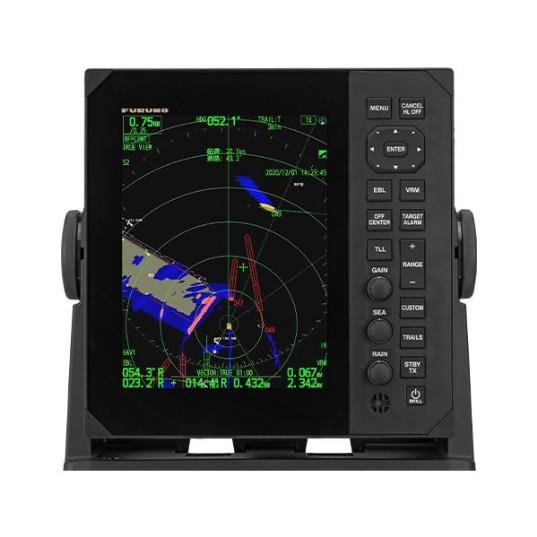

Furuno FR10 10.4" Portrait Radar Display without Antenna

The Furuno FR10 is a professional-grade 10.4" color LCD marine radar display designed for vertical mounting. This dedicated display unit pairs with any antenna from Furuno's extensive DRS Series lineup, allowing you to customize your radar system to match your specific detection needs and vessel requirements.

Advanced Target Detection and Safety Features:

• Risk Visualizer™: Displays potential collision areas based on position and movement of all surrounding vessels with color-coded alerts from green (normal) to red (hazardous)
• Fast Target Tracking™: Instantaneously displays vectors showing speed and heading of targets with automatic tracking from initial detection
• Target Analyzer™: Identifies dangerous targets likely to collide with your vessel using color-coded threat levels
• Echo Average: Attenuates irregular echoes from sea surface and precipitation while stabilizing echoes from fishing gear and other vessels
• RezBoost™: Enhanced target resolution for improved detection
• True Echo Trail: Tracks target movement history for navigation planning

Compatible DRS Antennas:

Radome Type: DRS2D-NXT, DRS4D-NXT, DRS4DL+

Open Array Type: DRS6A-NXT, DRS12A-NXT, DRS25A-NXT, DRS6A/12A/25A X-Class

Display Capabilities:

• Multiple display modes: Head-up, Course-up, North-up, True motion, Stern-up
• Range scales from 0.0625 to 96 NM depending on selected antenna
• Custom AIS integration with radar overlay on charts
• User-programmable function keys for quick access to preferred settings
• Sub display unit support
• Multi-language support

Technical Specifications:

• Display: 10.4-inch color LCD in portrait orientation
• Power Supply: 12-24 VDC
• Power Consumption: 1.1A at 12V, 0.6A at 24V
• Peak output power and range dependent on selected DRS antenna

The FR10 display unit is sold without antenna, allowing you to select the optimal DRS antenna for your specific marine application. This modular approach provides flexibility to upgrade or replace components as your navigation needs evolve.
