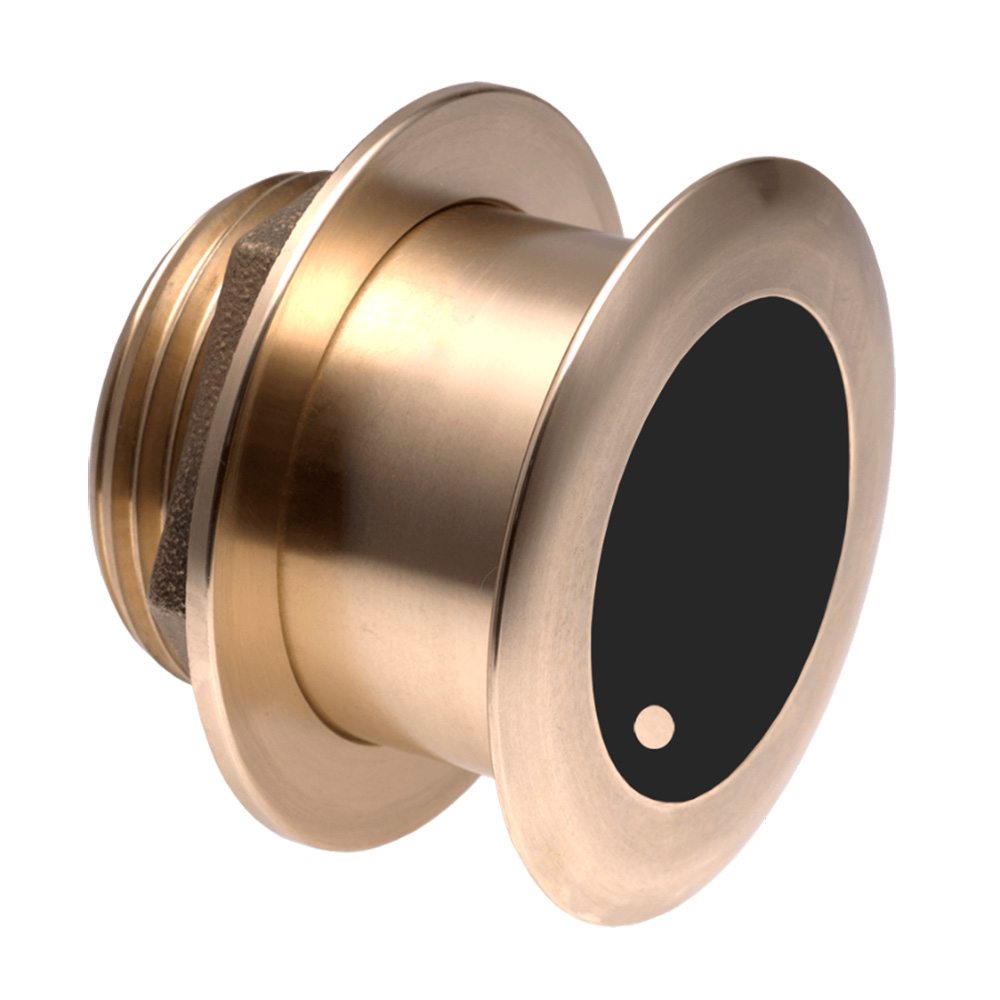

Airmar B175C-12-MW-12G Medium Ultra-Wide CHIRP Thru-Hull Transducer 1kW 12° Tilt

The Airmar B175C-12-MW-12G is a high-performance medium ultra-wide CHIRP-ready thru-hull transducer designed for anglers targeting pelagic species in the upper water column. This 1kW transducer features Airmar's innovative Tilted Element™ technology with a ceramic element fixed at a 12° angle, correcting for hull deadrise to ensure maximum echo returns and optimal performance.

Medium Frequency Ultra-Wide Coverage:

Operating at medium frequency (60-100 kHz), the B175MW delivers an incredible ultra-wide beamwidth ranging from 57° to 73° port-starboard with a 16° average fore-aft beam. This provides maximum coverage under the boat, making it ideal for seeking deeper species with superior mid-depth performance and excellent fish-target separation. The transducer offers 40 kHz of total bandwidth from a single unit.

Key Features:

• Medium frequency CHIRP: 60-100 kHz with 40 kHz total bandwidth
• Ultra-wide beamwidth: 57° to 73° port/starboard, 16° average fore/aft
• 1 kW power with depth tracking down to 400 m (1,300')
• Tilted Element™ housing with 12° fixed ceramic element angle
• Integrated depth and fast-response water-temperature sensor
• Bronze housing suitable for stepped, planing, or displacement hulls
• Low-profile thru-hull design for good resolution at speed
• Exclusive Xducer ID® technology for automatic transducer recognition
• 12-pin connector compatible with Garmin chartplotters

The B175MW installs nearly flush to the hull, minimizing drag while the tilted element orients the ceramic vertically regardless of hull deadrise angle. This transducer pairs perfectly with other Airmar models like the B275LHW to provide a complete frequency range (Low, Medium-Wide, High-Wide) for interrogating targets from deep to shallow waters.
