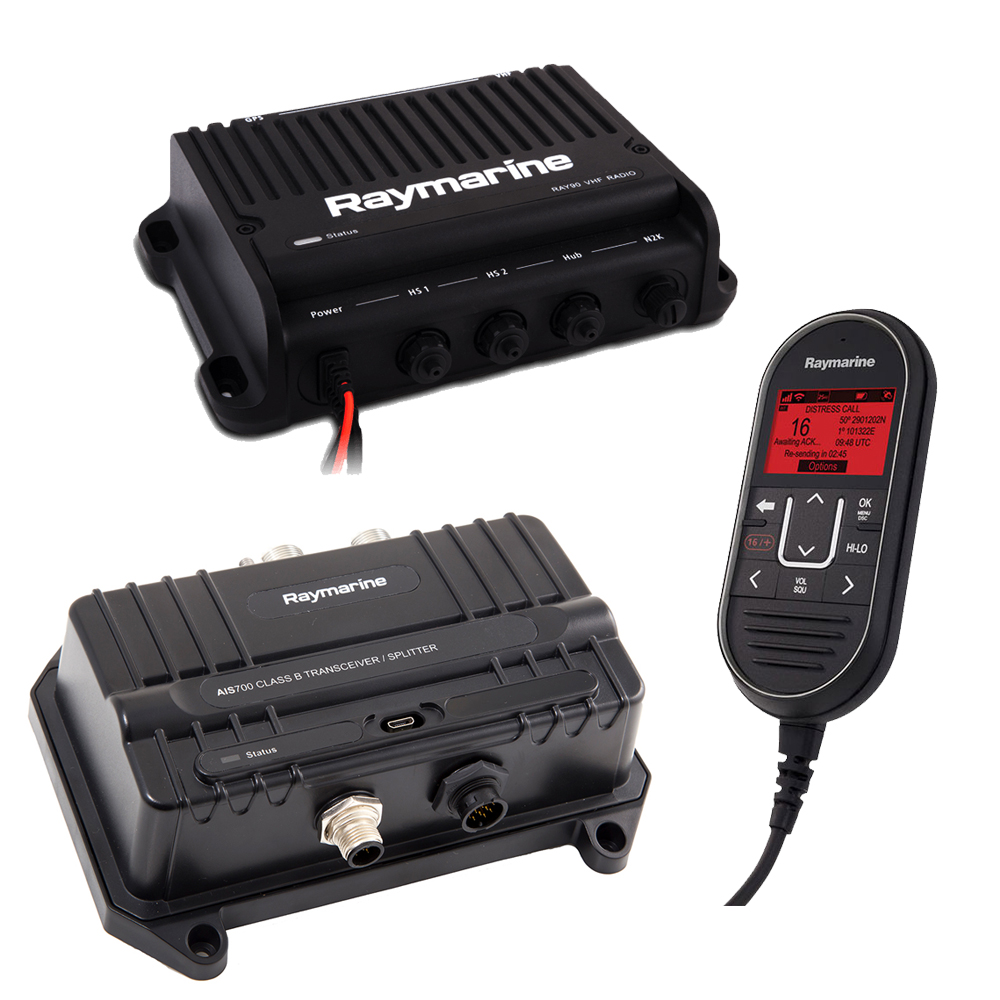

The Raymarine T70424 bundle combines the Ray90 black-box VHF radio with the AIS700 Class B transceiver, delivering a complete communication and safety system for your vessel. This integrated solution provides powerful VHF communications with multi-station capability alongside automatic identification system functionality for enhanced situational awareness on the water.
Ray90 VHF Radio
The Ray90 is a modular black-box design featuring a 25-watt transmitter with commercial-grade electronics for superior performance and longevity. The transceiver unit mounts out of sight while the included RayMic wired handset and passive speaker provide full control with crystal-clear audio. The system is expandable to two handsets and offers multi-station capability for larger vessels.
Key Ray90 Features:
- Class D Digital Selective Calling (DSC) with integrated GPS capability
- Position tracking for up to 5 nearby DSC-equipped vessels with automatic sharing to Raymarine MFDs
- Built-in 30-watt loudhailer with 2-way talkback and automatic fog signal generator
- Channel scanning, dual-watch, tri-watch, and weather alert functions
- Cast aluminum transceiver housing for shock and vibration resistance
- NMEA2000 and NMEA0183 networking with included SeaTalkng adapter
- ATIS system support for European inland waterways
AIS700 Class B Transceiver
The AIS700 utilizes advanced SO-TDMA (Self Organized Time Division Multiple Access) technology for faster performance and longer range than previous generation AIS systems. This Class B transceiver both receives broadcasts from other vessels and transmits your vessel's information, helping you see and be seen for enhanced collision avoidance and situational awareness.
Key AIS700 Features:
- Built-in VHF antenna splitter allows sharing a single antenna with your VHF radio
- Internal dedicated 72-channel GPS receiver with external antenna included
- Software or hardware-enabled Silent Mode to temporarily restrict broadcasting while continuing to receive
- NMEA2000, NMEA0183, SeaTalkng, and USB 2.0 connectivity options
- Built-in NMEA0183 multiplexer for connecting to older equipment
- SD memory card slot for continuous AIS data stream recording
- Compact design for flexible installation locations
Complete Ray90 System Includes:
- Ray90 VHF DSC radio transceiver with fitted power and data cable
- RayMic wired handset with cradle and adapter cable
- Passive speaker with mounting gasket and hardware
- DeviceNet to SeaTalkng adapter
- Complete mounting hardware and documentation
Complete AIS700 System Includes:
- AIS700 Class B transceiver with built-in VHF antenna splitter
- GNSS (GPS) antenna with gasket and pole mount kit
- 2-meter power and data cable
- 1-meter VHF radio antenna interconnect cable
- 1-meter DeviceNet to SeaTalkng cable
- Pro-AIS programming software CD-ROM
- Complete mounting hardware and documentation
Important Programming Note: FCC regulations require all AIS units sold in the US to be programmed by a qualified technician. MMSI registration or FCC Ship Station License documentation is required along with vessel owner signature on the completed programming form.
This comprehensive bundle provides everything needed for professional-grade marine communications and AIS safety functionality, making it an ideal solution for cruisers, offshore anglers, and professional mariners who demand reliable performance and advanced features.
