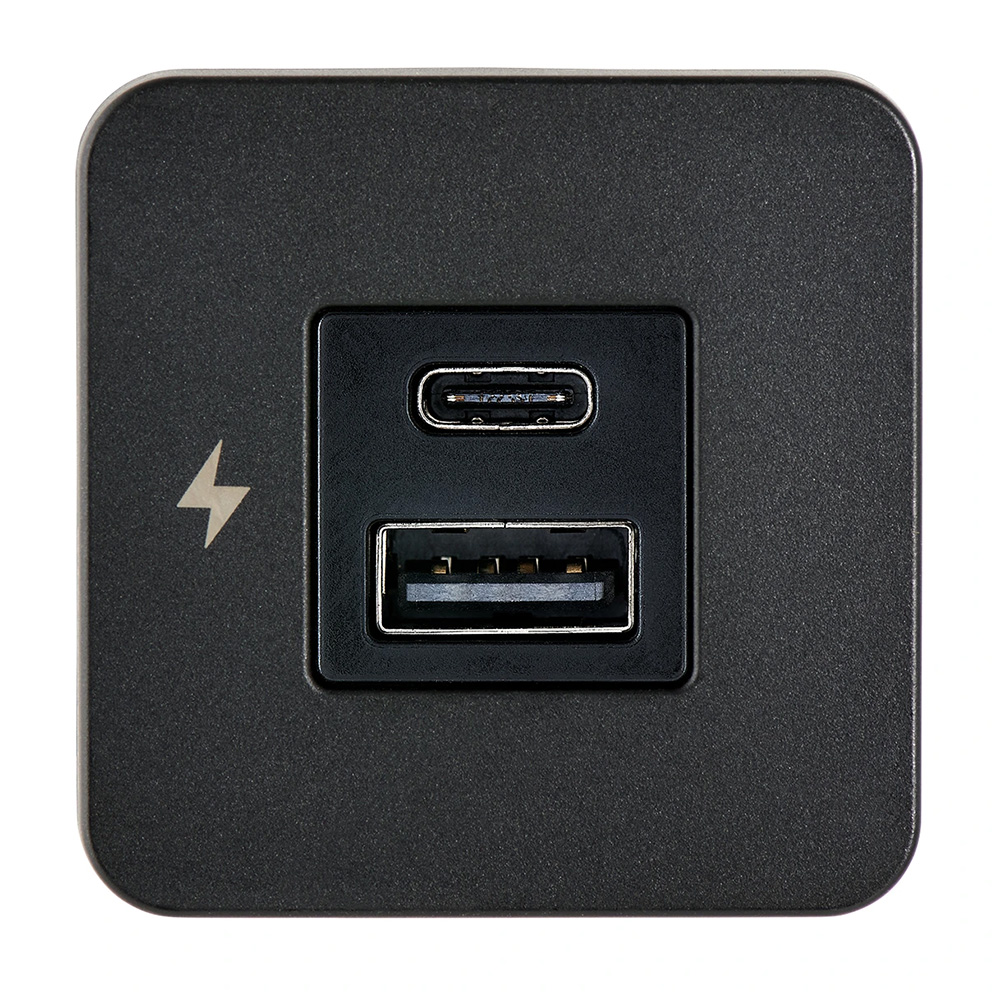

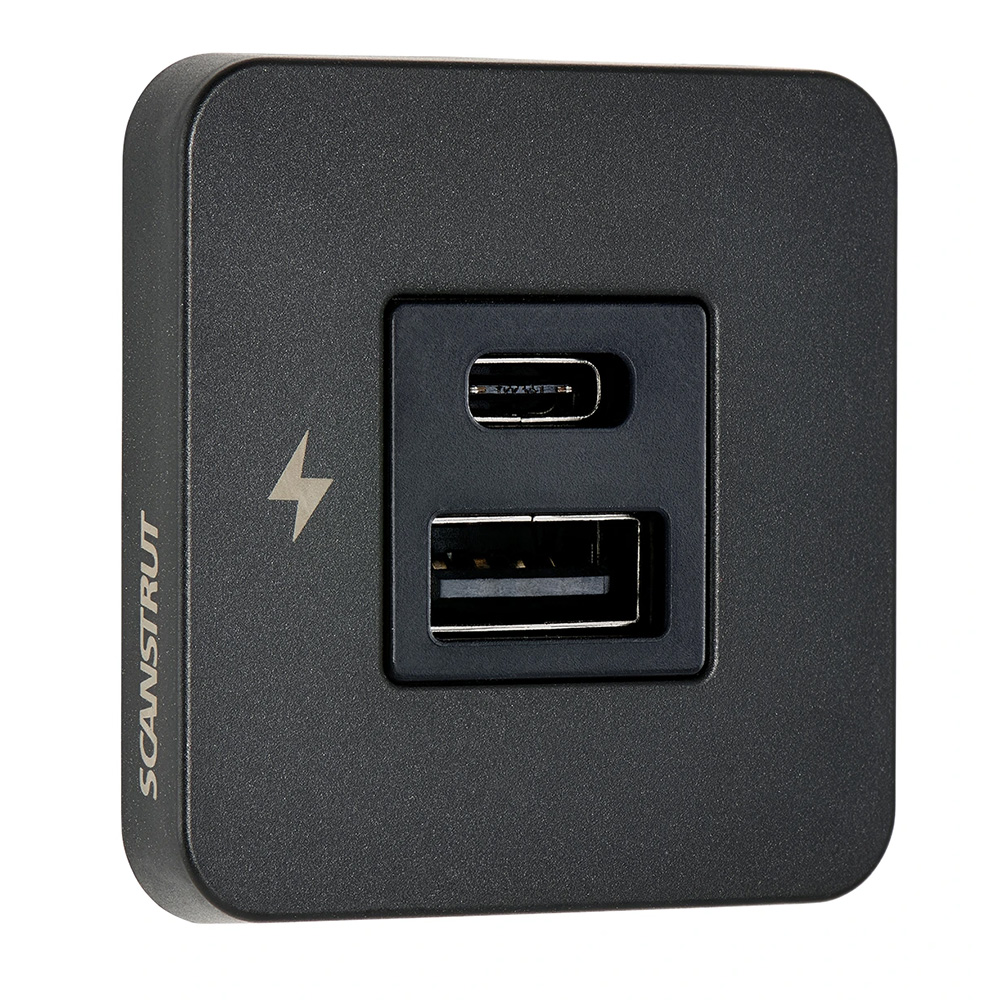

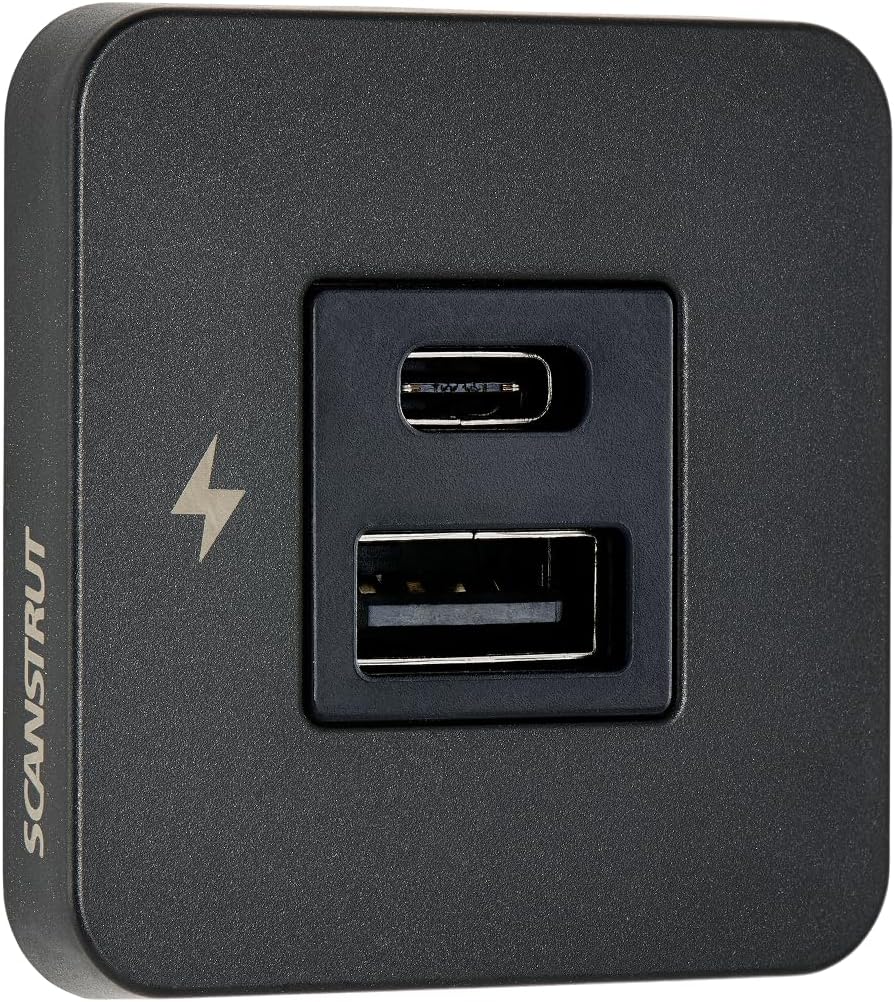

Scanstrut SC-TILE-10 USB-A/USB-C Interior Charging Socket 12/24V Black

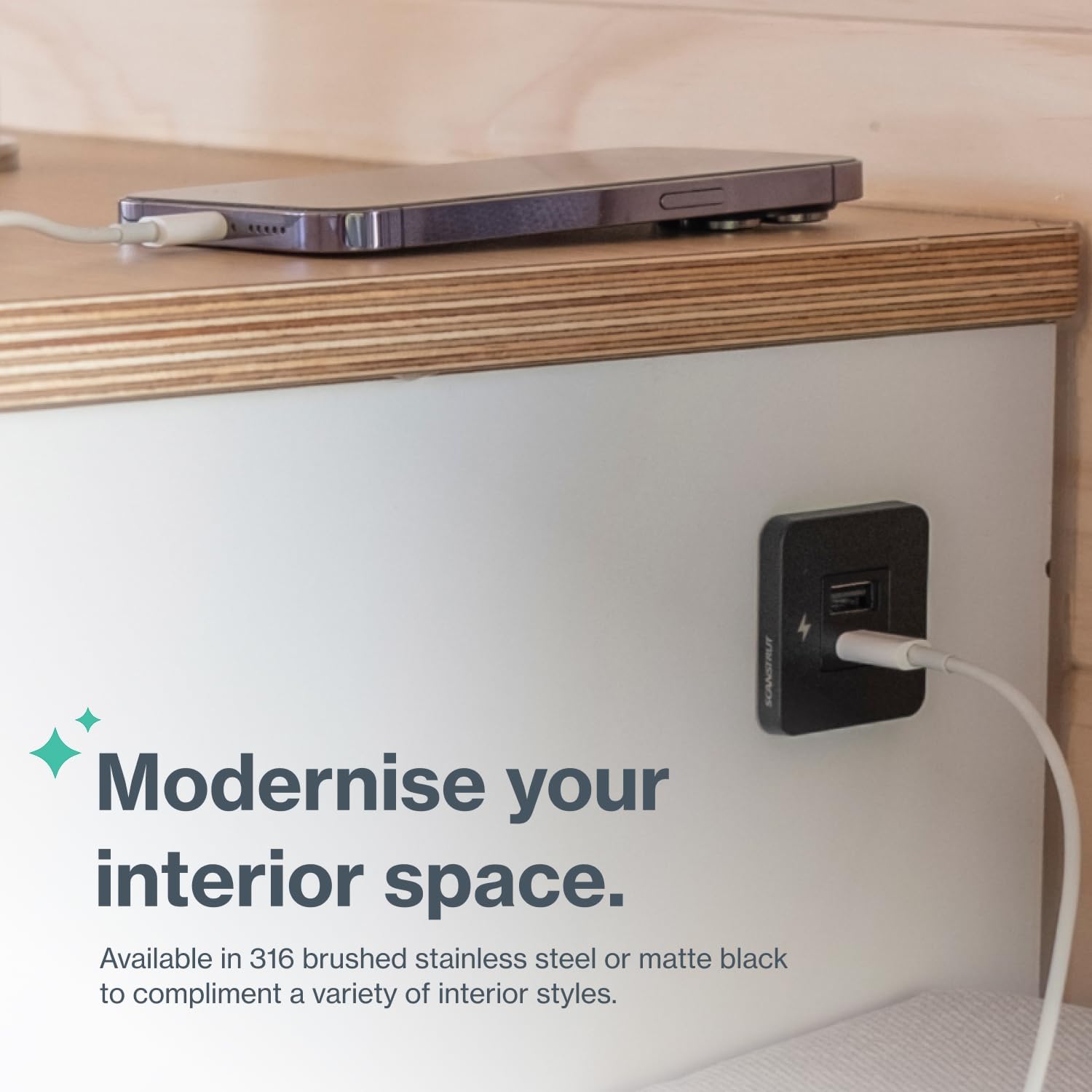

The Scanstrut TILE USB-A/USB-C Interior Charging Socket delivers sleek, high-performance charging specifically designed for marine interiors. This compact charger features a minimal 40mm (1.57") footprint and installs easily with just a 29mm (1.14") hole saw, blending seamlessly into luxury marine environments while providing powerful charging capabilities for all your onboard devices.

High-Speed Charging Performance:

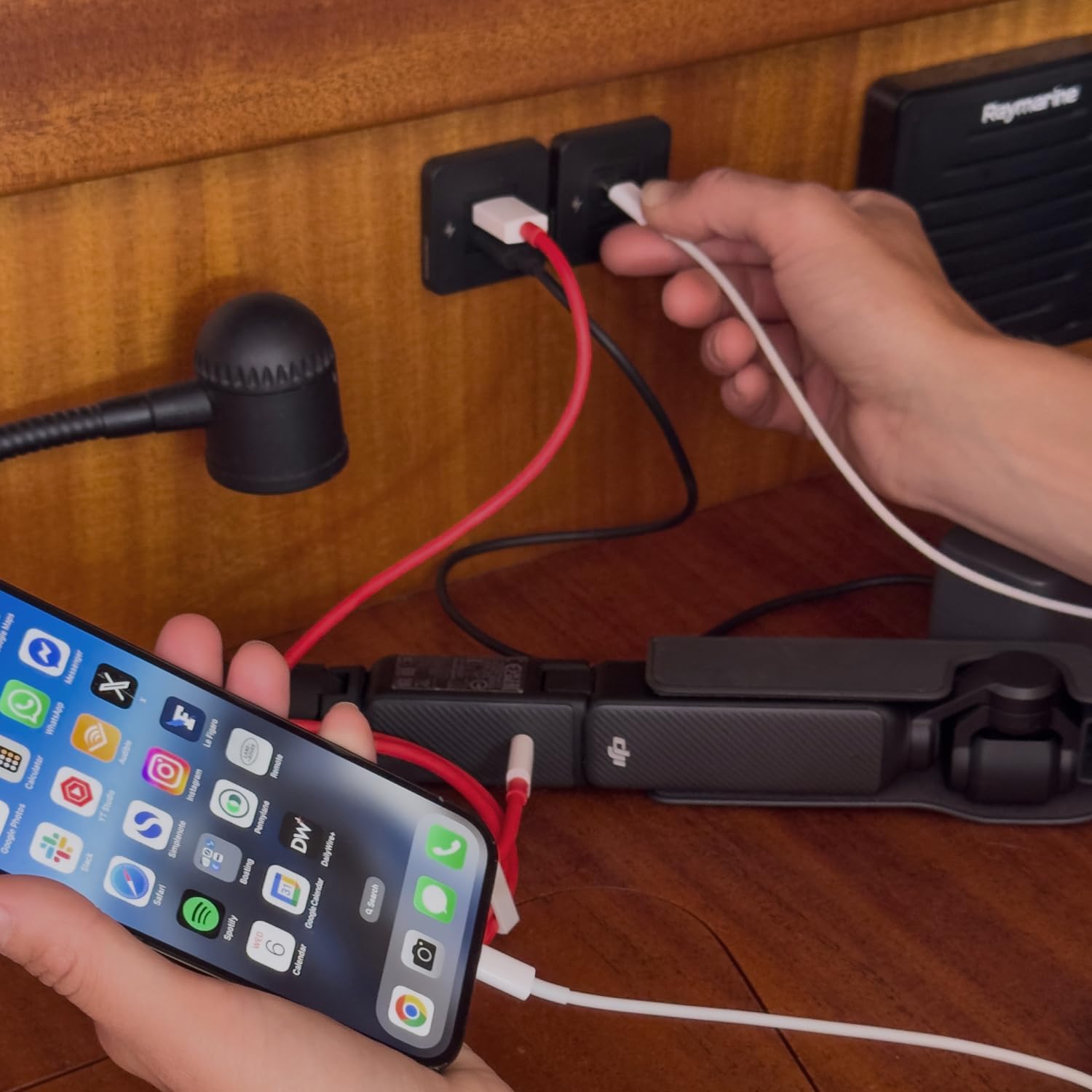

The TILE USB charges at up to 36W on 12V systems or 60W on 24V systems, making it ideal for charging modern laptops, large tablets, smartphones, and any USB-C powered devices. Fast charge up to two devices simultaneously using the dual USB-A and USB-C ports.

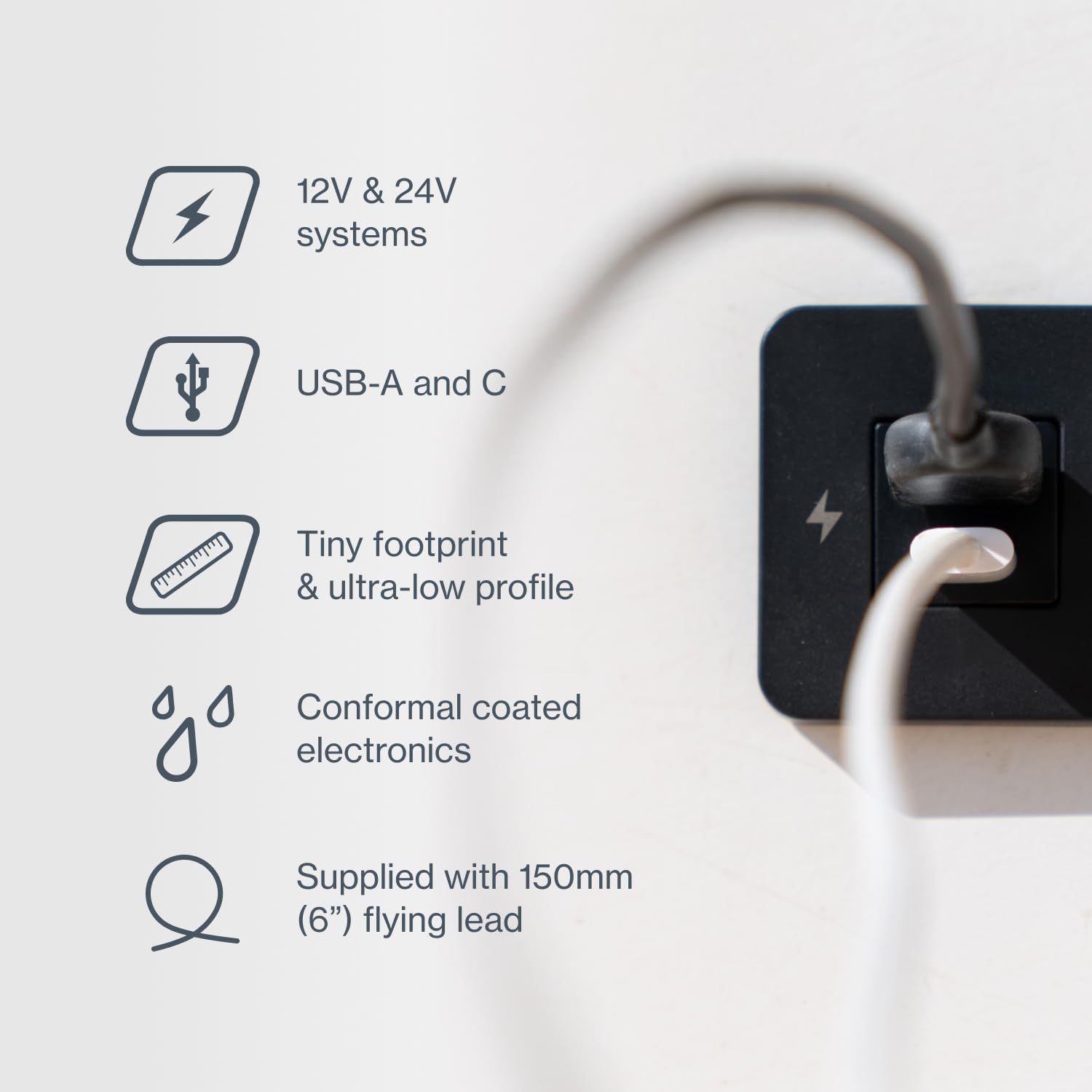

Key Features:

• Dual charging ports: USB-A and USB-C for universal compatibility

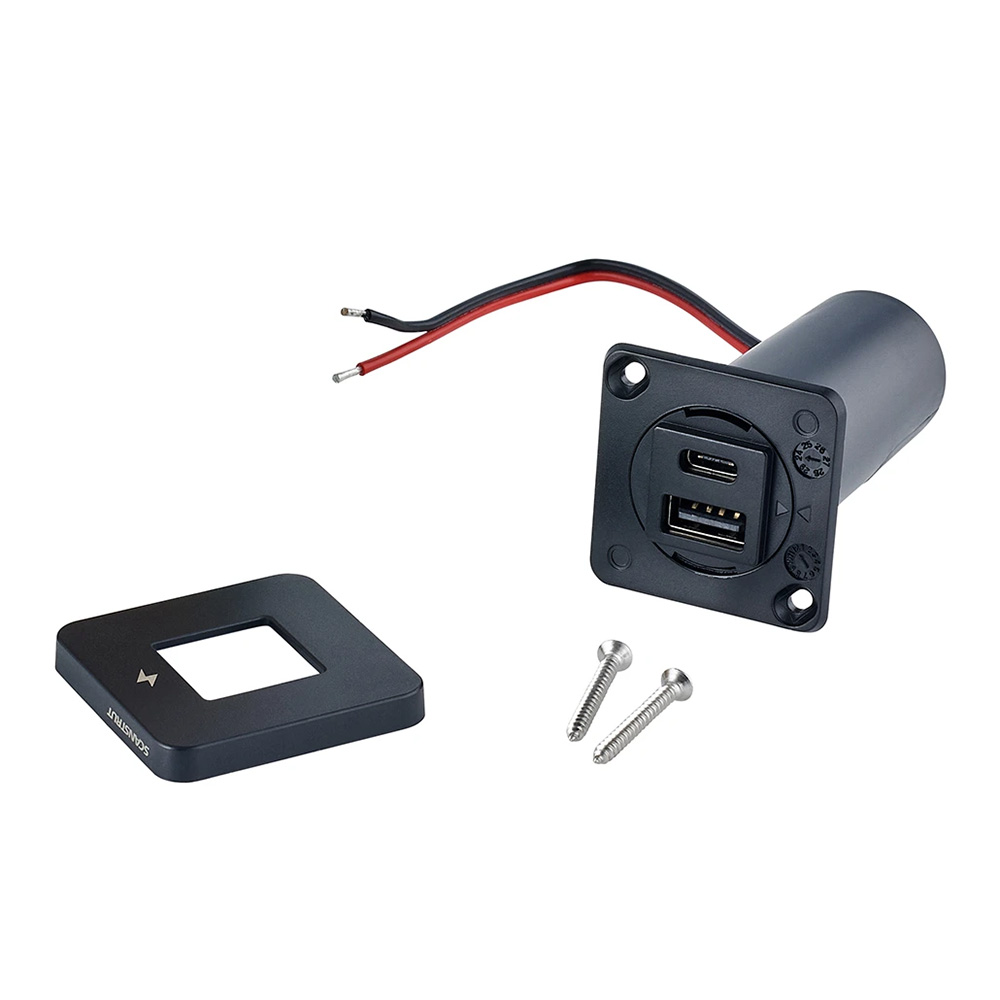

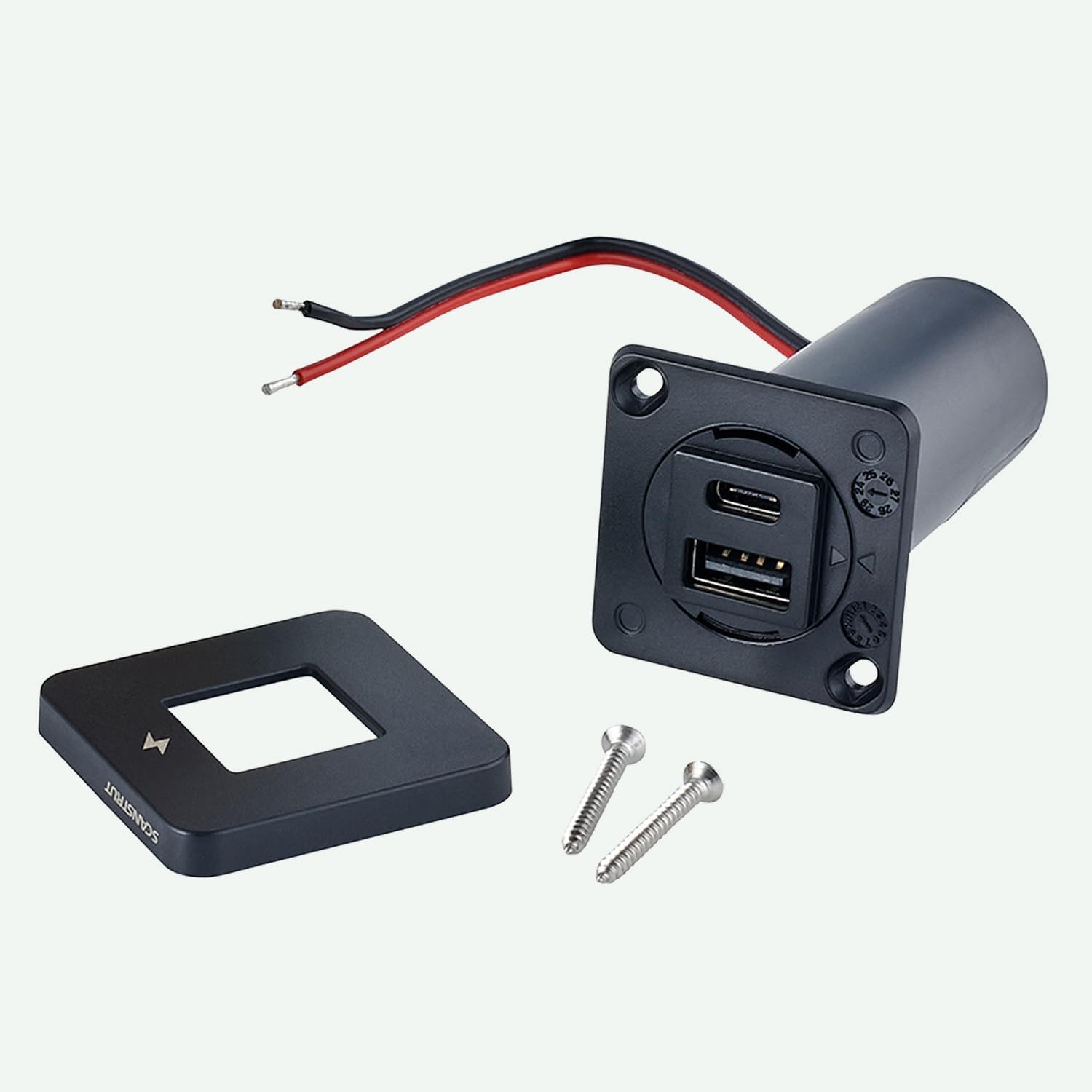

• Ultra-low profile, front-fit design with tiny footprint
• Matte black bezel for modern aesthetics
• Conformal coated electronics for moisture protection
• Wide input voltage range: 10-32V DC (12V/24V systems)
• Minimal standby power consumption: 0.01W
• Multiple certifications: CE, FCC, UKCA, C-Tick, ROHS, WEEE

Technical Specifications:

• Input Voltage Range: 10-32V DC
• Maximum Input Current: 6A (10A fuse recommended)
• USB-C Output: 12V System - 5V/3A, 9V/3A, 12V/3A (36W max); 24V System - 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A (60W max)
• USB-A Output: 12V System - 5V/3A, 9V/3A, 12V/3A (36W max); 24V System - 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A (60W max)
• Mounting Hole: 29mm (1.14")

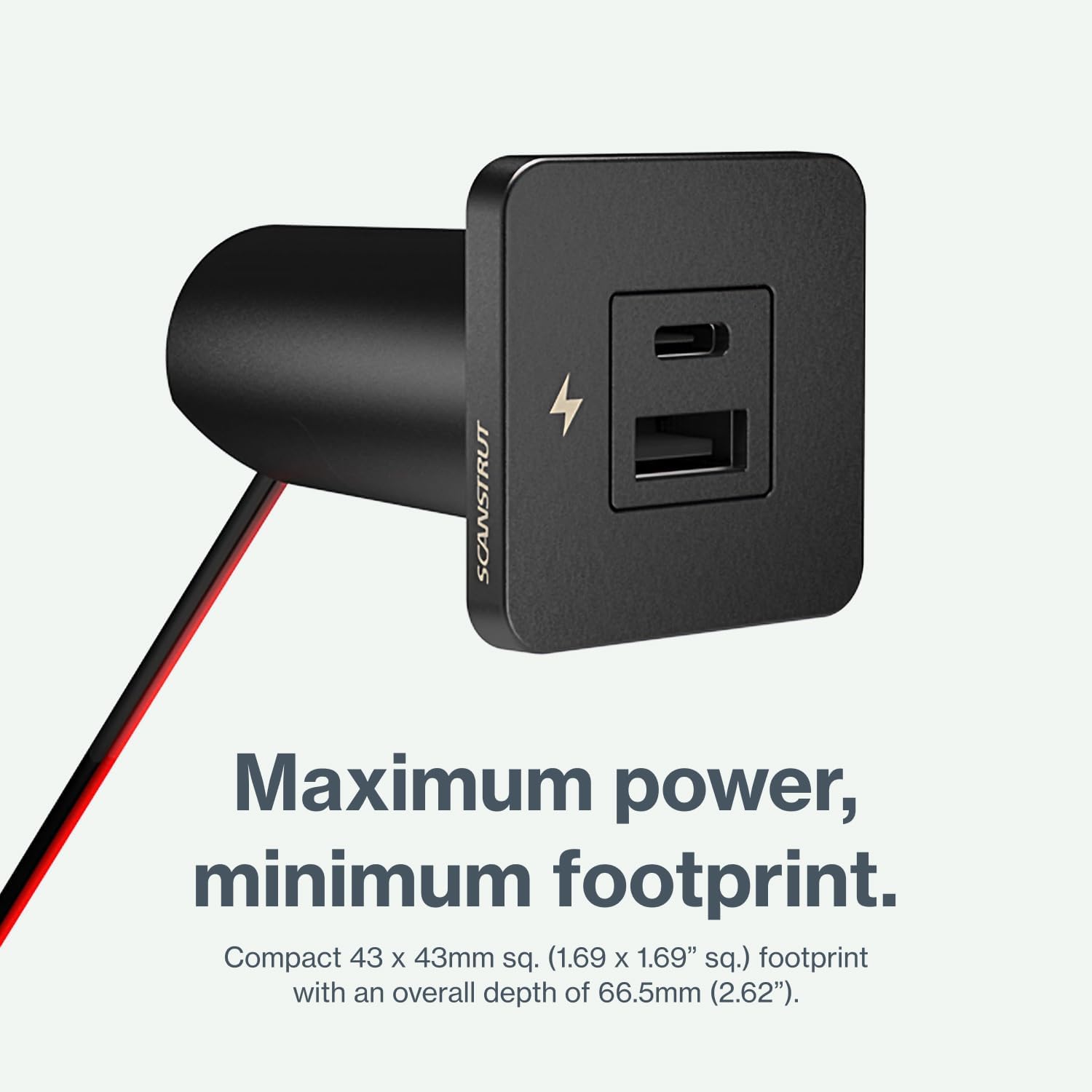

• Bezel Diameter: 40mm (1.57")

Important Installation Notes:

For optimal charging performance, use the cable supplied with your device (USB-C to USB-C or USB-C to Lightning). Phones charge at the same speed on both 12V and 24V systems, but a 24V system is required to achieve the full 60W output needed for laptop charging. This product is designed for interior use only and should not be installed in locations where water exposure is possible.
