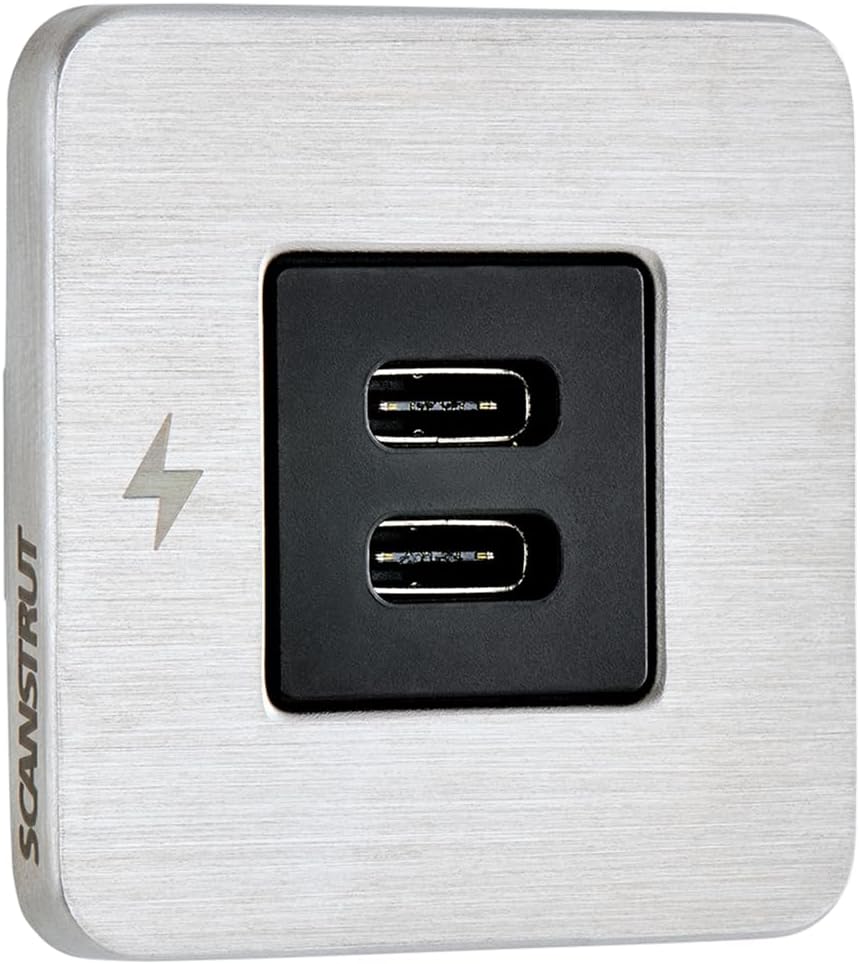

Scanstrut SC-TILE-21 Dual USB-C Interior Charging Socket 12/24V Stainless Steel

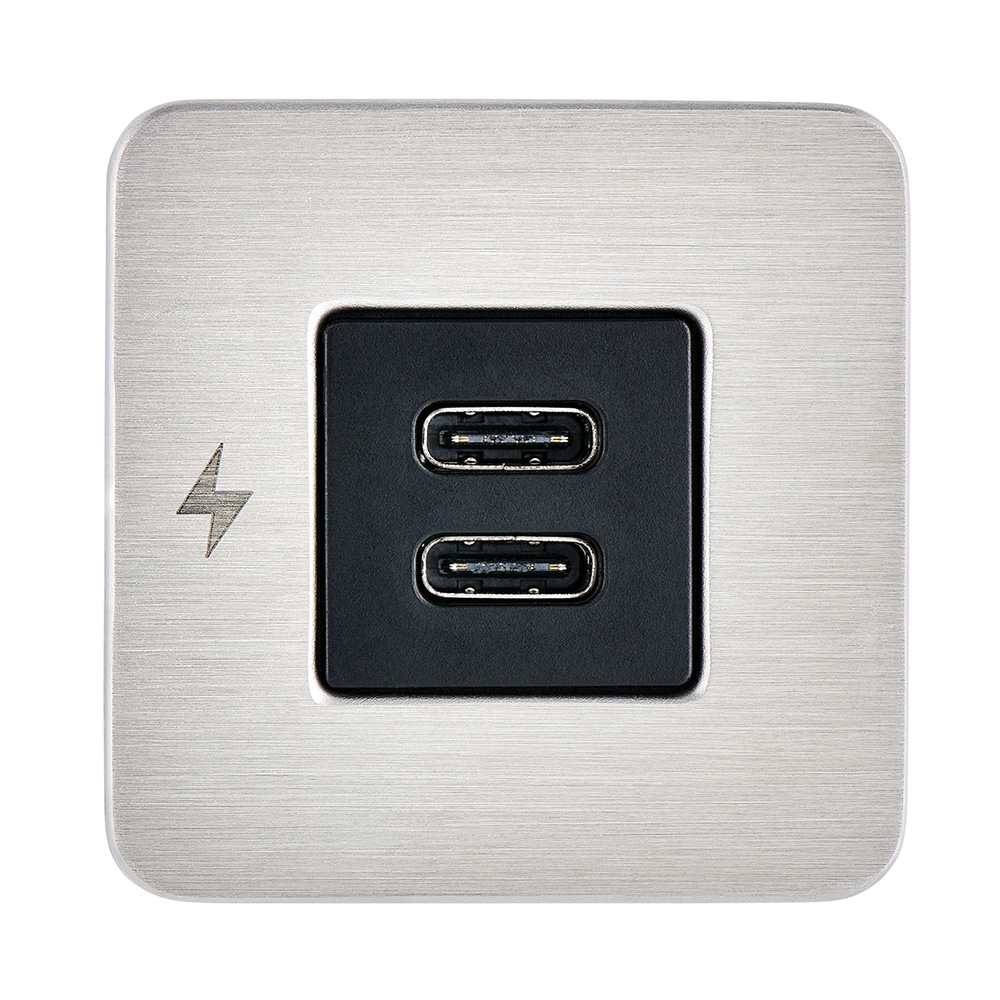

The Scanstrut SC-TILE-21 TILE Series USB-C charging socket delivers high-performance charging specifically designed for marine interiors. This sleek dual USB-C charger features a compact 40mm (1.57") footprint with a stainless steel bezel that blends seamlessly into luxury marine environments. Installation is simple, requiring just a 29mm (1.14") hole saw for front-fit mounting.

High-Speed Charging Performance:

The TILE USB-C charges at up to 36W on 12V systems or 60W on 24V systems, making it ideal for modern laptops, large tablets, smartphones, and other USB-C powered devices. The dual ports allow fast charging of up to two devices simultaneously.

Key Features:

• Dual USB-C ports for charging two devices at once
• 60W max output on 24V systems, 36W max on 12V systems

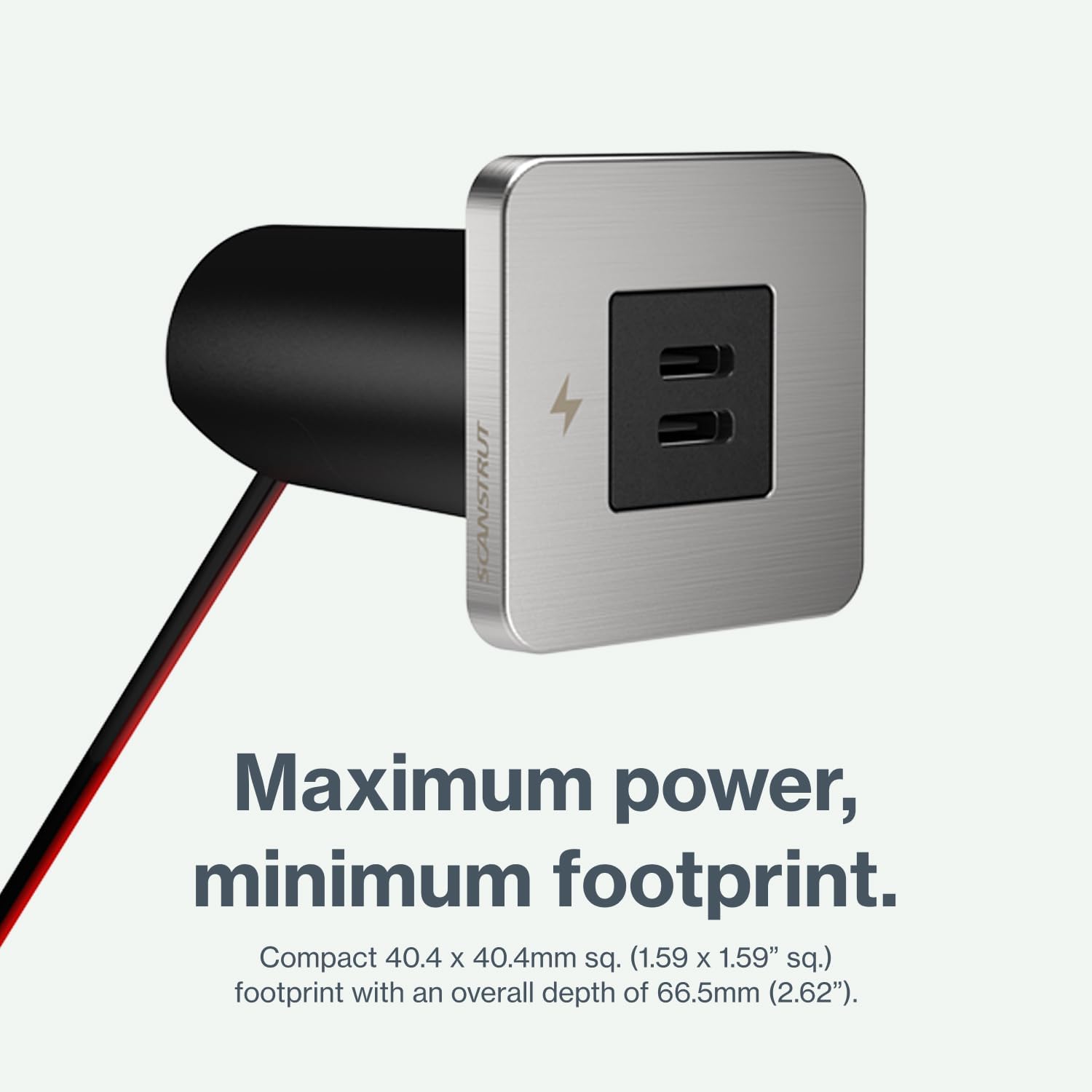

• Ultra-low profile design with tiny 40mm footprint
• 316 stainless steel bezel for corrosion resistance

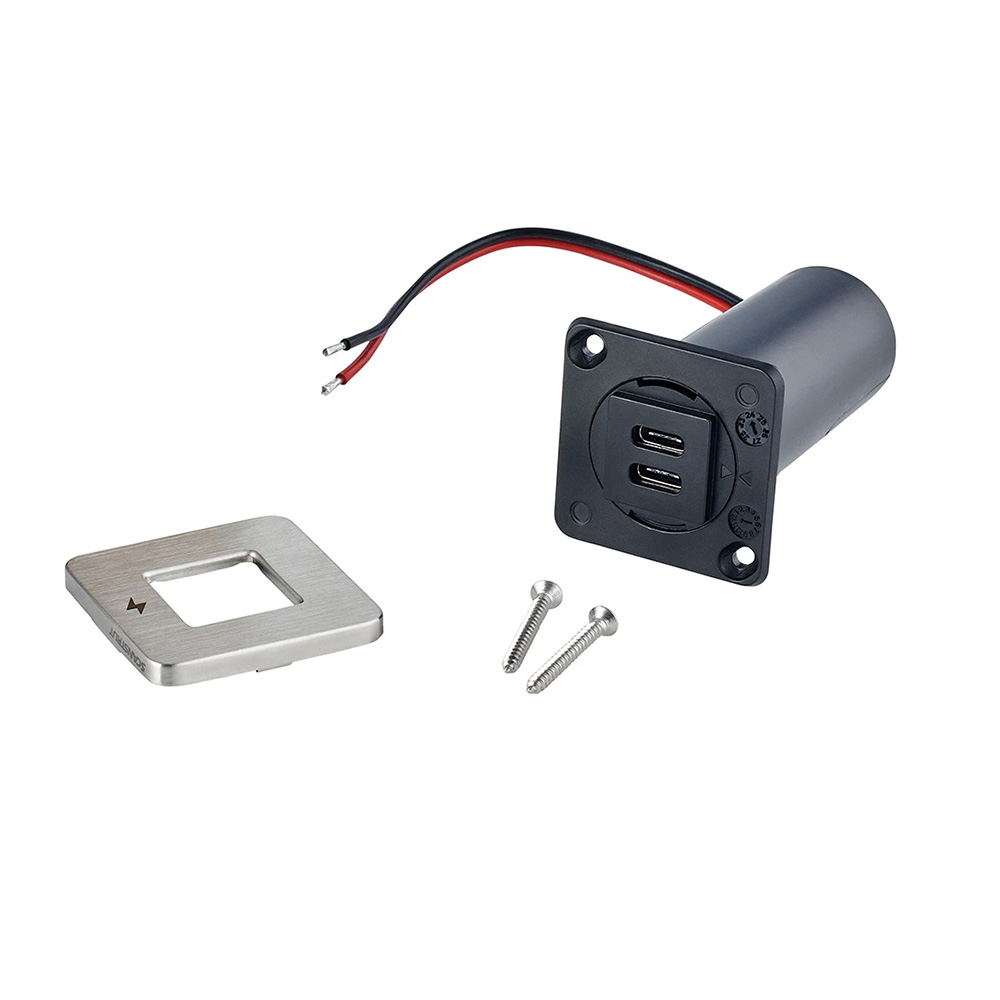

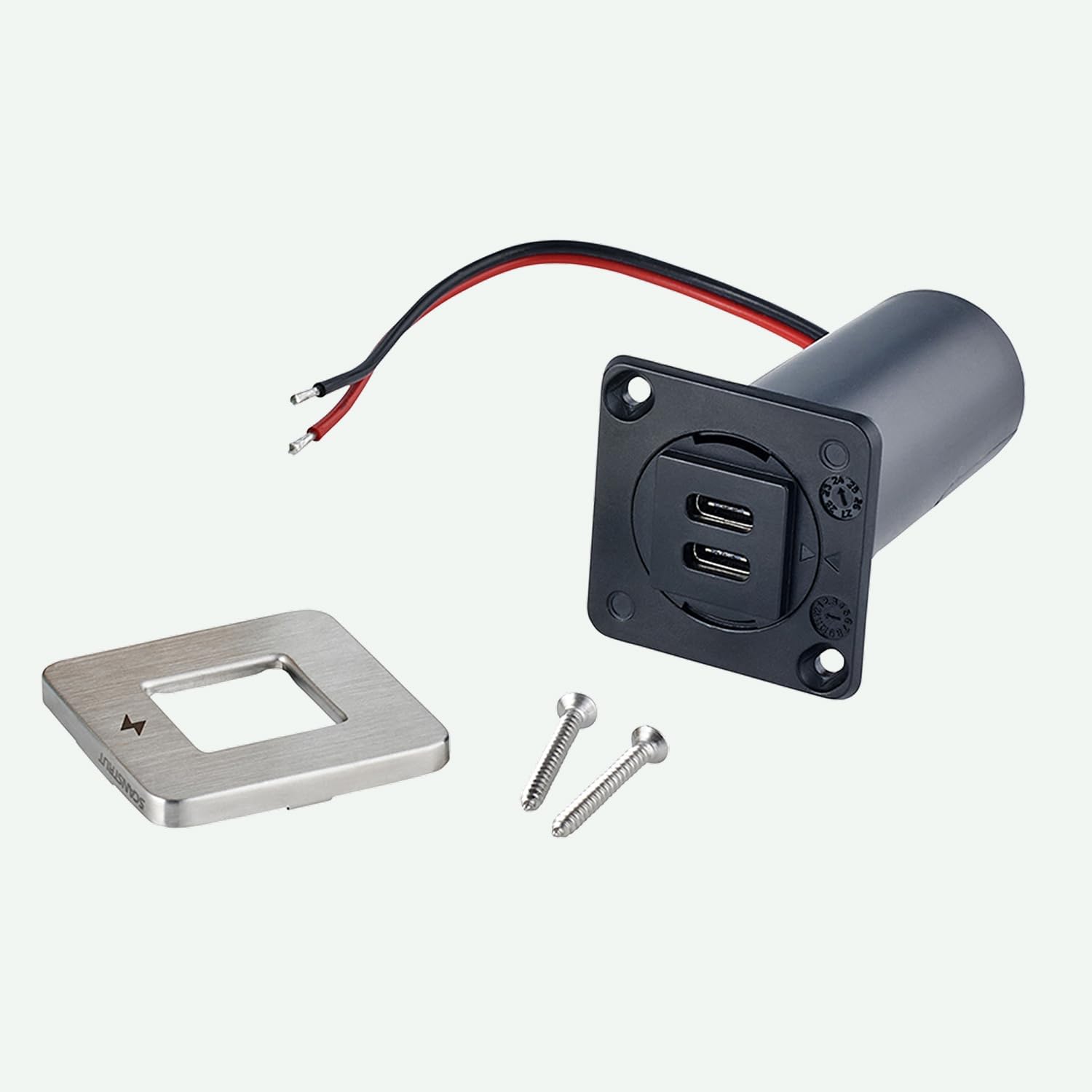

• Front-fit installation with 29mm hole saw
• Wide input voltage range: 10-32V DC
• Conformal coated electronics protected against moisture
• Ultra-low standby power consumption (0.01W)

Technical Specifications:

• Input Voltage: 10-32V DC (12V/24V compatible)
• Maximum Input Current: 6A (10A fuse recommended)
• USB-C Output (12V System): 5V/3A, 9V/3A, 12V/3A max
• USB-C Output (24V System): 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A max
• Certifications: CE, FCC, UKCA, C-Tick, ROHS, WEEE

Important Notes:

For optimal charging performance, use the cable supplied with your device (USB-C to USB-C or USB-C to Lightning). Phones charge at the same speed on 12V or 24V systems, but a 24V system is required for full 60W output suitable for laptops. This product is designed for interior use only and should not be installed where water exposure is possible.
