Dexter Marine Products K71-069-00 Torsion Trailing Arm & Hardware Kit 5200-7000 lbs

The Dexter Marine Products K71-069-00 is a complete torsion trailing arm and hardware replacement kit designed for UFP by Dexter torsion axles rated from 5,200 to 7,000 pounds capacity. This comprehensive kit provides everything needed to replace a worn or damaged trailing arm assembly on marine trailer applications.

Key Features:

• Compatible with 5,200 lb capacity (6 lug) and 7,000 lb capacity (8 lug) torsion axles
• Fits torsion axle beams measuring 3.5" x 3.5"
• Designed for 1-3/4" inner bearing and 1-1/4" outer bearing spindles
• DB42 Caliper mounting bracket pre-welded to spindle for disc brake applications
• Zinc-plated components for superior corrosion resistance in marine environments
• Compatible with all UFP Trailer Buddy torsion axles
• Suitable for use with idler or disc brake configurations

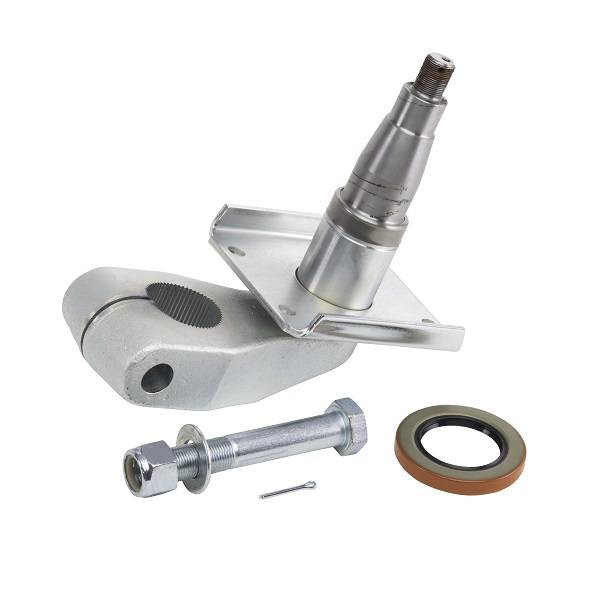

Complete Kit Includes:

• 1 Torsion arm and spindle assembly (zinc plated)
• 1 Mounting bolt 7/8" x 5-1/2" (zinc plated)
• 1 NyLock nut 7/8" (zinc plated)
• 1 Flat washer 7/8" (zinc plated)
• 1 Cotter pin 1/8" x 1-5/8"
• 1 Spindle nut 13/16"
• 1 Spindle "D" washer
• 1 Spindle nut retainer
• 1 Seal

This OEM replacement kit from Dexter Marine Products ensures proper fit and reliable performance for boat trailers and other marine applications. The zinc plating provides enhanced durability and extended service life in harsh saltwater environments.
