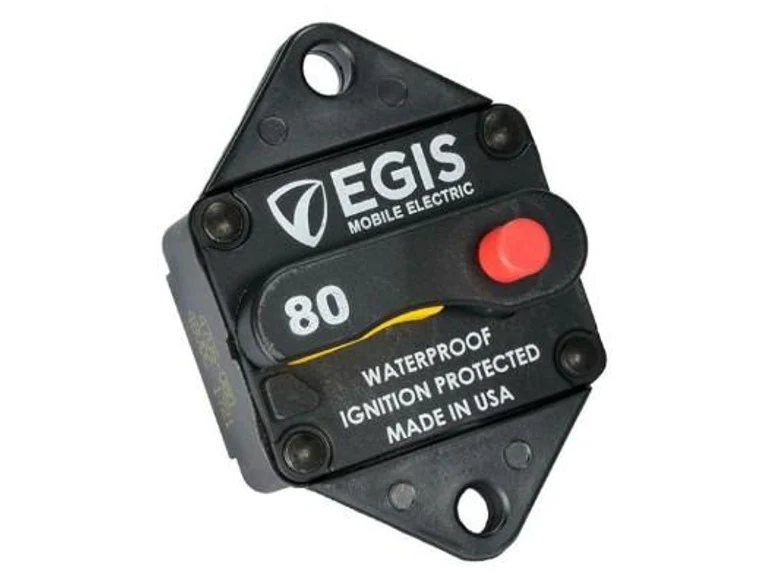

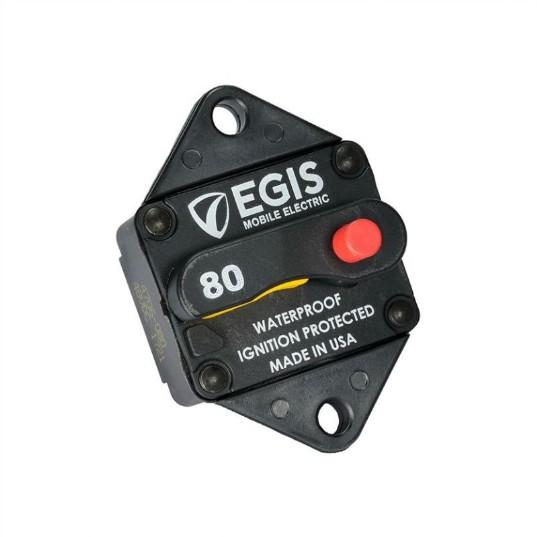

Egis Mobile Electric 4706-080 285 Series Panel Mount Circuit Breaker 80A 48V DC

The Egis Mobile Electric 4706-080 is a 285-Series panel mount circuit breaker rated for 80 amps, designed to provide reliable circuit protection for marine, RV, commercial vehicle, and emergency vehicle electrical systems. This Type III manual reset circuit breaker combines automatic circuit protection with manual on/off switching functionality in one compact, weather-resistant unit.

Key Features:

• 80 amp rating with 48V DC maximum voltage capacity
• Type III switchable manual reset with trip-free design that cannot be held closed after tripping
• Thermally responsive bi-metal blade technology protects against short circuits and overcurrent loads
• Meets SAE J1171 external ignition protection requirements for safe installation on gasoline-powered boats
• Weather-resistant construction suitable for harsh marine and vehicle environments
• Panel mount configuration for convenient installation adjacent to battery systems
• M6 terminal studs accept 1/4" ring terminals with 50 in-lb torque specification
• 3000A interrupt capacity at 48V DC
• Operating temperature range: -40°C to 85°C

This circuit breaker provides dual functionality by allowing circuit isolation and maintenance of load circuits while delivering integral circuit protection. The visible reset lever provides clear indication when the breaker is in an open condition. Compatible replacement for Blue Sea Systems 7086/7186 and Cooper Bussmann 285080P. Ideal for auxiliary and accessory circuits in trucks, buses, RVs, marine vessels, and specialty vehicles requiring both switching capability and overcurrent protection.
