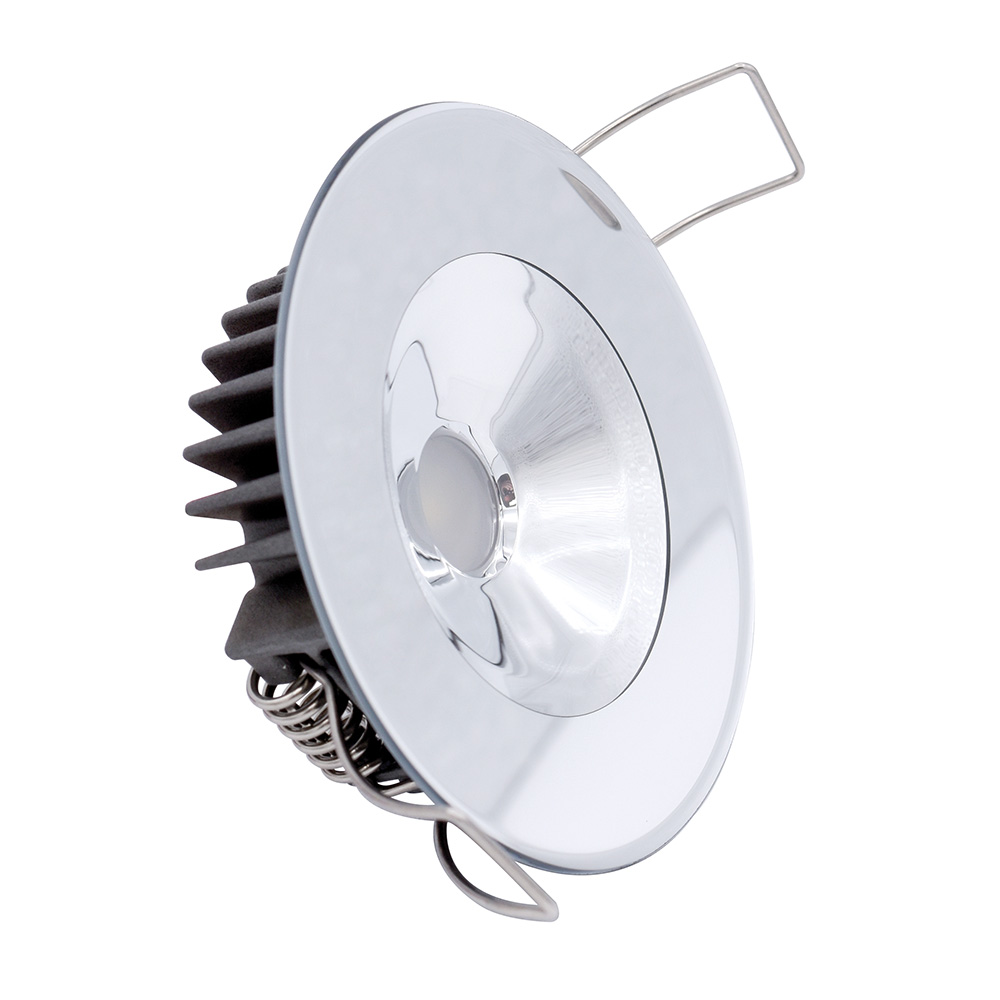

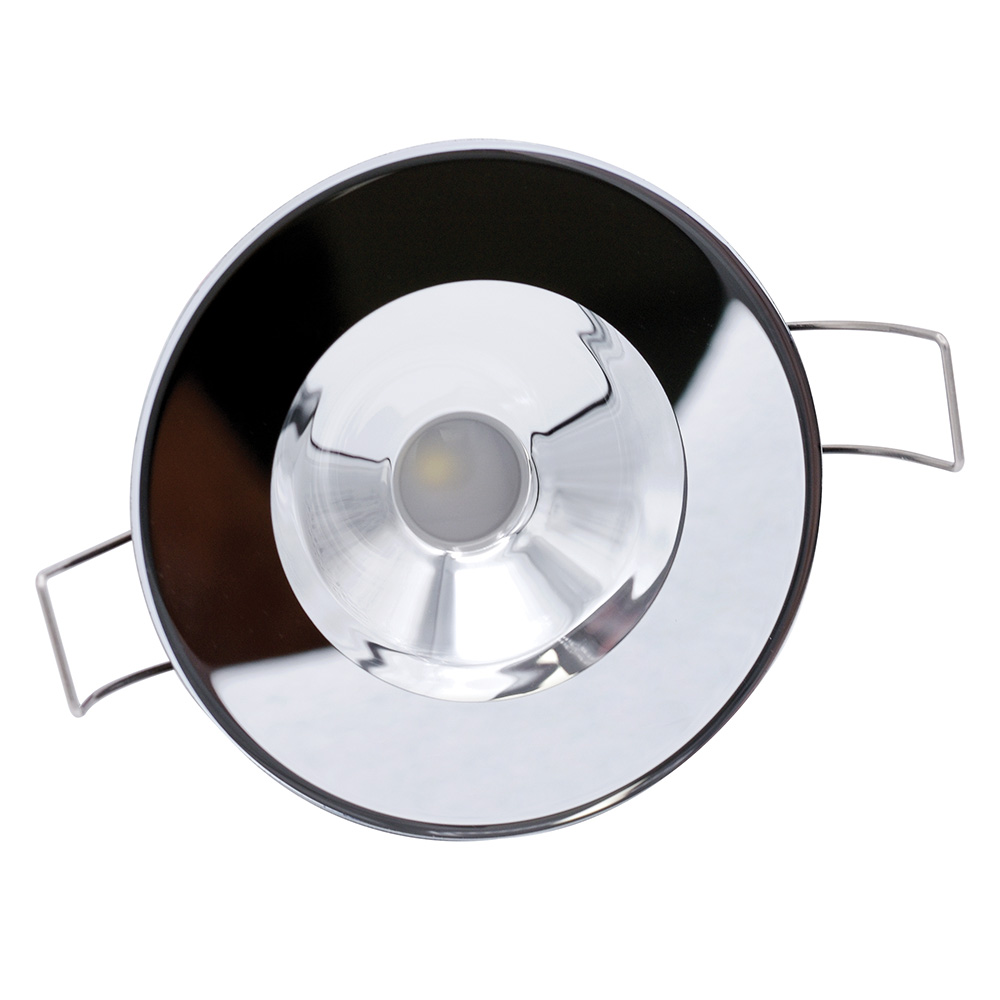

Lumitec 117145 Illusion Flush Mount LED Down Light Spectrum RGBW Warm White Mirrored Housing

The Lumitec 117145 Illusion Flush Mount LED Down Light delivers a sleek, bezel-free design with an ultra-thin profile engineered for modern marine interiors. Featuring Spectrum RGBW color output with Warm White and a distinctive mirrored housing finish, this flush-mount downlight brings full-color customization and refined aesthetics to hardtops, cabin ceilings, and interior spaces aboard today's boats.

Constructed with chemically hardened glass for a wafer-thin face and a shallow housing depth of just 0.7 inches, the Illusion installs cleanly with no exposed fasteners thanks to its proven butterfly clip mounting system. The proprietary finishing process enables unique metallic, wood grain, and decorative surface options — making it one of the most visually customizable downlights in the marine lighting category.

Key Features:

• Spectrum RGBW + Warm White output — full-color control plus tunable white light
• PLI-Enabled (Power Line Instruction) — compatible with the Lumitec Poco Digital Lighting Control system for dimming, color selection, and scene creation via MFD or the Lumitec Poco app
• Timed Toggle Protocol (TTP) — allows basic color and dimming control without a Poco module
• Butterfly clip mounting system — tool-friendly installation with no exposed fasteners
• Chemically hardened glass face — ultra-thin profile with a shallow 0.7 in. mounting depth
• Proprietary finish options — mirrored housing with industry-first decorative finishing processes
• 2-wire hookup — simplified wiring for easy installation
• IP67 rated — sealed against dust ingress and temporary water immersion
• CE Certified — meets international compliance standards
• 3-Year Warranty

Specifications:

• Color Output: Spectrum RGBW — Warm White
• Lumens: 285
• CRI: 80+
• CCT: 5000K
• Related Wattage: 6W
• Voltage: 10–30 VDC
• Current Draw @ 12V DC: 430 mA
• Current Draw @ 24V DC: 230 mA
• Diameter: 2.5 in. (6.35 cm)
• Depth: 0.7 in. (1.77 cm)
• Finish / Housing: White / Mirrored
• IP Rating: IP67
• Operating Temperature: -31°F to +131°F (-35°C to +55°C)
• PLI Enabled: Yes
• TTP Enabled: Yes
• Third-Party Dimmer Compatible: No
• CE Certified: Yes
• UL Certified: No
• Color Match Commitment: Yes

When paired with a Lumitec Poco 4 module, the Illusion becomes part of a fully integrated smart lighting system — enabling Sound-to-Light effects, precise RGBW color tuning, scene programming, and control from any compatible MFD or mobile device. It is also backward-compatible with the Timed Toggle Protocol for standalone operation without a Poco controller.
